Among all the design parameters of an industrial air cooler, fin spacing is one of the most frequently discussed—and one of the most misunderstood.
Ask ten refrigeration engineers about the "correct" fin spacing for a cold room evaporator, and you'll likely receive several different answers. That is because fin spacing is not a standalone specification. It is a design variable that interacts with airflow, humidity, evaporating temperature, defrost strategy, refrigerant type, and even the characteristics of the stored product.
Many purchasing decisions are still based on simplified assumptions such as "larger fin spacing is always better for low-temperature rooms" or "smaller fin spacing always provides higher efficiency." In reality, both statements are only partially true.
For industrial refrigeration systems, the goal is not to maximize or minimize fin spacing. The goal is to find the optimum balance between heat transfer efficiency, frost resistance, airflow stability, maintenance intervals, and lifecycle operating costs.
This article explains the engineering principles behind fin spacing selection and why customized evaporator design often delivers better long-term performance than selecting a standard catalog model.

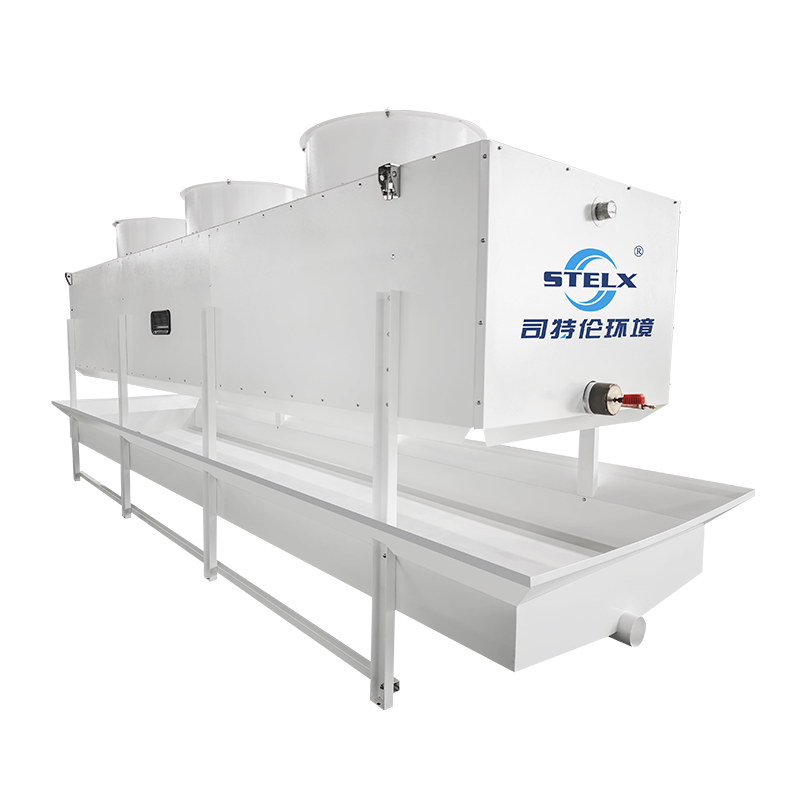

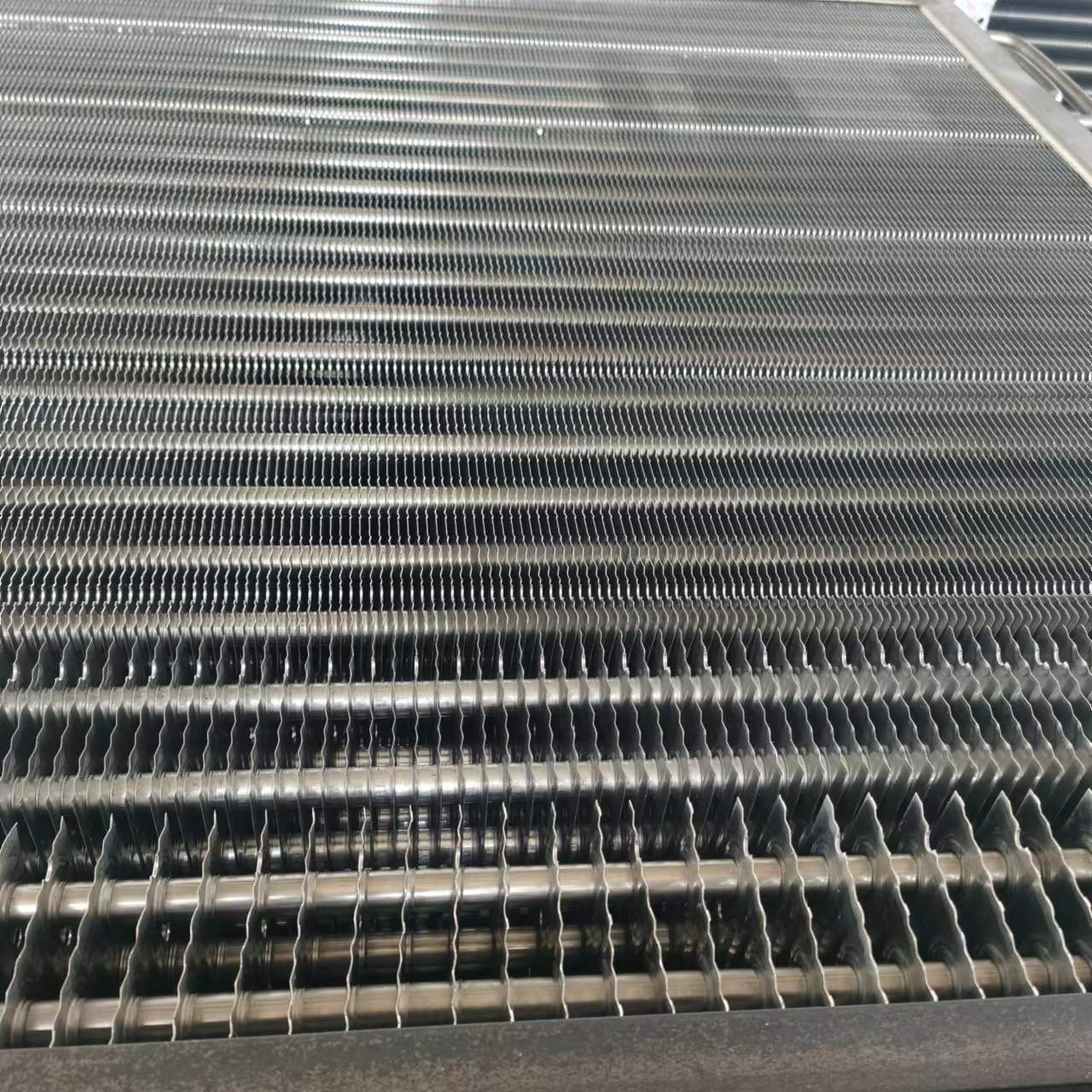

Fin spacing refers to the distance between two adjacent aluminum fins on the evaporator coil.
Although this dimension is measured in only a few millimeters, it has a significant influence on the overall performance of a cold storage evaporator.
The primary functions of the fins are to:
Increase the heat transfer surface area
Improve cooling capacity
Guide airflow through the coil
Enhance refrigeration efficiency
However, the same fins that improve heat transfer also become the first surfaces where moisture freezes during operation.
This creates an engineering challenge: increasing surface area generally improves heat exchange, but it also increases the likelihood of frost restricting airflow over time.
Finding the right balance is therefore one of the key responsibilities in industrial air cooler design.
To understand fin spacing, it is important to understand frost formation.
Whenever humid air passes over an evaporator coil operating below 0°C, water vapor condenses and freezes on the fin surfaces.
The speed of frost accumulation depends on several factors:
Room humidity
Door opening frequency
Product moisture content
Air velocity
Coil surface temperature
Defrost interval
For example, two freezer rooms operating at exactly the same room temperature may experience completely different frost loads.
A seafood processing room with frequent washdowns and continuous product movement introduces much more moisture into the air than a packaged frozen food warehouse.
As a result, the evaporator serving the seafood facility will generally require a different fin spacing and defrost strategy.
This is one reason why experienced manufacturers rarely recommend the same coil configuration for every application.
From an engineering perspective, fin spacing is always a compromise.
A coil with narrow fin spacing provides:
Greater heat transfer surface area
Higher initial cooling capacity
Compact overall dimensions
However, there are disadvantages.
As frost accumulates, narrow fin passages become blocked more quickly.
This leads to:
Reduced airflow
Higher air-side pressure drop
Increased fan power consumption
More frequent defrost cycles
Lower operating efficiency over time
The performance measured on the first day after installation may differ significantly from the performance after several weeks of operation.
Increasing fin spacing reduces airflow restriction.
Advantages include:
Slower frost blockage
Longer operating periods between defrost cycles
More stable airflow
Easier maintenance
However, excessive fin spacing also reduces heat transfer surface area.
If the spacing becomes unnecessarily large, the evaporator may require:
Larger coil dimensions
Higher refrigerant charge
Increased equipment cost
The objective is therefore optimization—not maximization.
A common misconception is that room temperature alone determines fin spacing.
For example:
4 mm for high-temperature rooms
6 mm for medium-temperature rooms
9 mm for freezer rooms
While these values can serve as general guidelines, they should never be treated as universal rules.
Professional evaporator selection should also evaluate:
A vegetable storage room operating at 2°C with 95% relative humidity may accumulate frost more rapidly than a frozen warehouse operating at -25°C with low humidity.
Humidity often influences frost formation more than room temperature.
Cold rooms connected to production areas experience continuous infiltration of warm, humid air.
Each door opening introduces additional moisture that eventually freezes on the evaporator.
Facilities with heavy traffic typically benefit from wider fin spacing and carefully designed defrost schedules.
Fresh products release moisture.
Frozen packaged products generally do not.
Examples include:
Fresh vegetables
Fruit
Meat processing
Seafood processing
Each application creates a different evaporator environment.
This is why industrial refrigeration engineers evaluate the entire operating condition rather than relying solely on temperature.
Many discussions about fin spacing focus exclusively on heat exchange.
In practice, airflow stability is equally important.
As frost accumulates, airflow gradually decreases.
The consequences include:
Uneven room temperature
Longer compressor runtime
Higher energy consumption
Product temperature variation
A properly designed industrial unit cooler should maintain stable airflow throughout the operating cycle—not only immediately after defrost.
For this reason, airflow performance over time is often a better indicator of evaporator quality than initial cooling capacity alone.
The choice of refrigerant also influences evaporator design.
Industrial ammonia air coolers are commonly used in large cold storage facilities because of their high efficiency.
These systems often prioritize:
Low pressure drop
Stable refrigerant distribution
Long operating cycles
The evaporator design must therefore balance frost resistance with efficient heat transfer.
CO₂ unit coolers are becoming increasingly popular throughout Europe due to environmental regulations.
Because CO₂ systems operate under different pressures and temperature characteristics, coil geometry may differ from conventional HFC designs.
Although fin spacing principles remain similar, overall evaporator optimization should always consider refrigerant properties.
Standard industrial air coolers are designed to satisfy the widest possible range of applications.
Custom industrial air coolers, by contrast, are designed for one specific operating condition.
Customization may include:
Fin spacing
Coil depth
Tube diameter
Circuit arrangement
Fan configuration
Air throw distance
Defrost method
Rather than applying a universal solution, engineers evaluate the project's actual operating environment.
This approach often results in:
Better temperature uniformity
Lower operating costs
Reduced frost accumulation
Longer maintenance intervals
Improved lifecycle performance
For industrial refrigeration projects where reliability is critical, this engineering-first philosophy frequently provides greater long-term value than selecting a standard catalog model.
One of the most common mistakes in evaporator selection is optimizing for laboratory performance rather than real operating conditions.
A coil that delivers the highest theoretical capacity under clean conditions may lose its advantage after only a few days if frost rapidly restricts airflow.
Experienced refrigeration engineers therefore evaluate how the evaporator performs throughout the entire operating cycle—not just immediately after defrost.
Long-term airflow stability is often a better measure of performance than peak cooling capacity.
Fin spacing is much more than a manufacturing specification.
It directly influences airflow, heat transfer, frost accumulation, energy efficiency, maintenance frequency, and overall refrigeration performance.
Rather than selecting fin spacing based solely on room temperature, engineers should consider the complete operating environment, including humidity, product type, door opening frequency, refrigerant selection, and defrost strategy.
As industrial refrigeration projects continue to demand greater energy efficiency and higher product quality, customized evaporator design is becoming increasingly important.
A properly engineered industrial air cooler is not simply designed to achieve cooling capacity—it is designed to maintain stable performance throughout years of continuous operation.
Not necessarily. Wider fin spacing reduces frost blockage but also decreases heat transfer surface area. The optimum spacing depends on humidity, operating temperature, defrost strategy, and product characteristics.
Indirectly, yes. While frost formation is primarily influenced by air-side conditions, refrigerants such as ammonia (NH₃) and CO₂ may require different coil designs to optimize overall evaporator performance.
Higher humidity accelerates frost accumulation, which increases airflow resistance and may require wider fin spacing or more effective defrost strategies.
Not always. Standard units can perform well in straightforward applications. However, projects with unique room layouts, specialized products, natural refrigerants, or demanding operating conditions often benefit from customized engineering.
Selecting the right fin spacing requires more than matching a room temperature to a catalog specification. Every cold storage project has its own combination of humidity, airflow, refrigerant, and product requirements.
If you are designing a new refrigeration system or upgrading an existing facility, working with a manufacturer that offers custom-engineered industrial air coolers can help optimize long-term performance rather than simply meeting a nominal cooling capacity.
At STELX, our engineering team designs industrial air coolers, cold storage evaporators, and OEM refrigeration solutions based on actual project conditions—including refrigerant type, fin spacing, airflow requirements, material selection, and application-specific performance objectives.
