Floor-Standing Upward-Blowing Veg Storage Cooler

Home » Product Category » Air Coolers » Upward Blowing Air Cooler » Floor-Standing Upward-Blowing Veg Storage Cooler

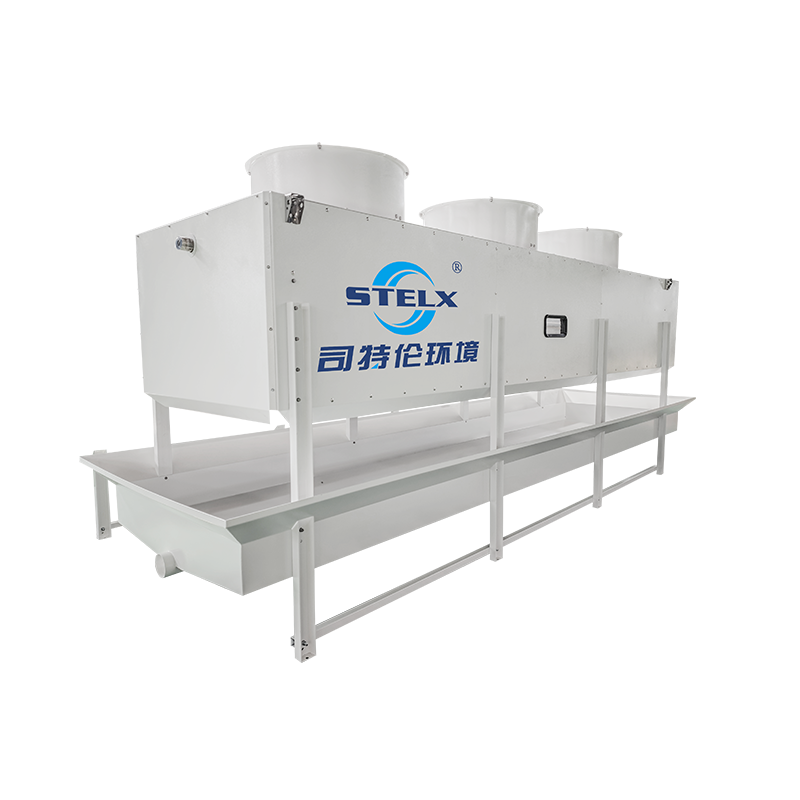

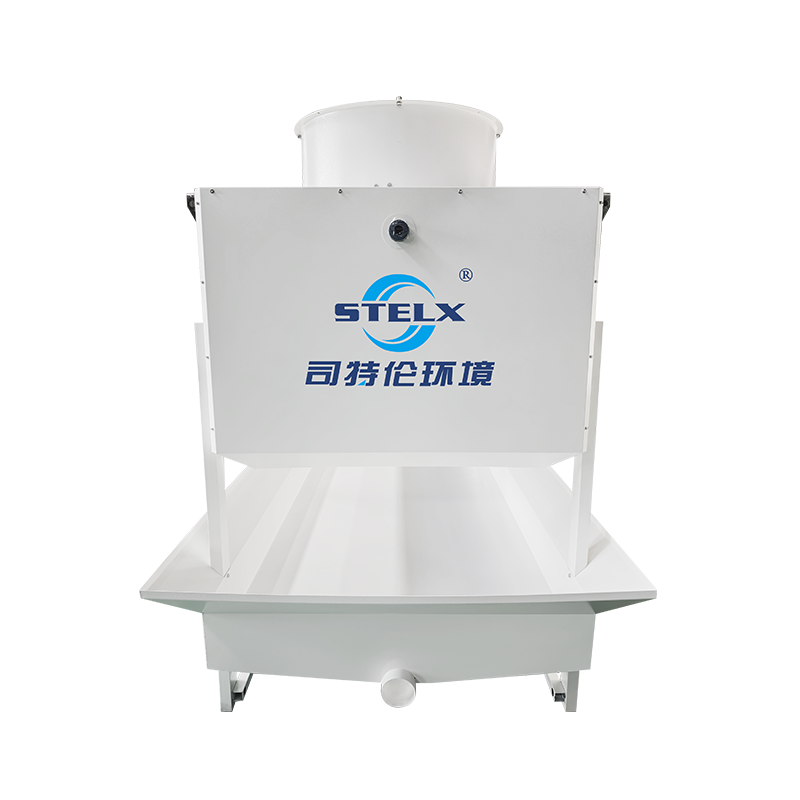

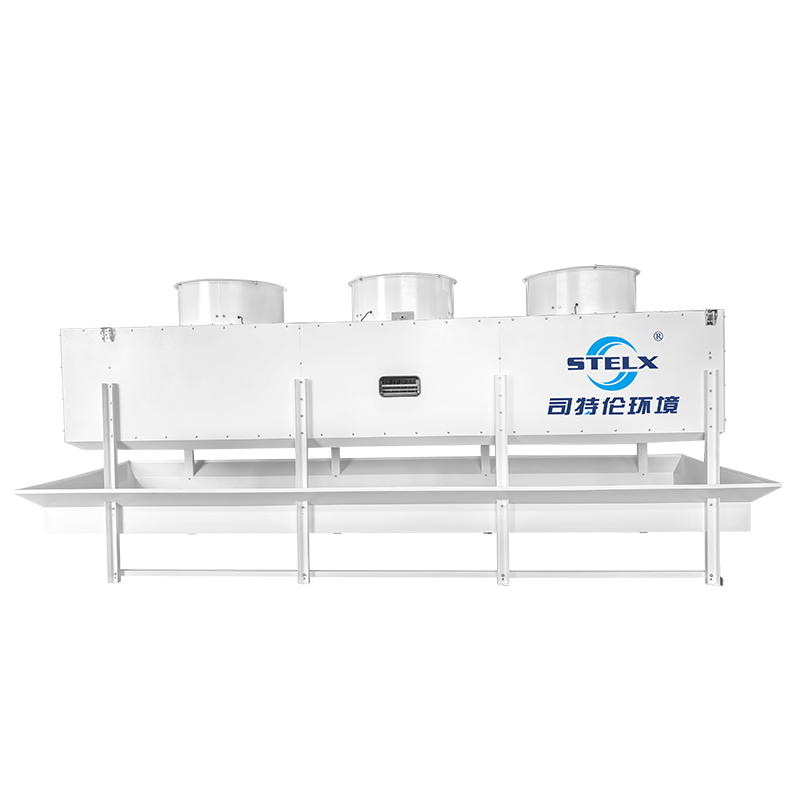

Floor Standing Upward Blowing Air Cooler with Strong Fans For Vegetables Cold Storage Room

Floor-Standing Upward-Blowing Veg Storage Cooler

The GDCF series redefines cold storage efficiency with its patented upward-blowing aerodynamic design. Ambient air is drawn from the base unit, accelerated vertically through precision-engineered axial-flow fans, and uniformly diffused via optimized louvers. This creates a gentle, turbulence-free thermal blanket that envelops perishables without desiccating surfaces—making it ideal for humidity-sensitive applications like fruit/vegetable preservation and pharmaceutical storage where minimal product disturbance is critical.

Model:
GDCF

Availability:

Quantity:



Inquire Add to Basket

vegetables cold storage room evaporators High humidity cold room evaporator Specialized For Sensitive Produce Storage blue fin air cooler Corrosion-Resistant air cooler food grade air cooler air cooler unit evaporator for HFC air cooler unit for vegetables cold room StSt 304 air cooler unit flat air cooler unit evaporator

GDCF

Overview

The GDCF series is a premium industrial air coolers solution, designed as an ECO cubic air cooler for humidity-sensitive and hygiene-critical applications. As a versatile unit cooler, it features an upward-blowing design optimized for vegetables cold storage, pharmaceutical preservation, and seafood processing. This Stainless Steel air cooler (available in 304/316L) combines gentle airflow with robust performance, making it a standout choice among compact air cooler options for sensitive produce. Unlike traditional coolers, it minimizes product desiccation while delivering high cooling capacity, embodying the efficiency of Dual discharge air coolers reimagined for upward airflow needs.

（Observation window display）

Technical Specifications

Details

Refrigerant Compatibility

This ECO cubic air cooler supports a broad range of refrigerants, including HFC, NH₃, CO₂, Glycol, Water, and Brine. Its flexible compatibility allows integration with existing refrigeration systems, from standard setups to eco-friendly configurations.

Material & Construction

Built for durability and hygiene, the GDCF series offers multiple material options: a titanium air cooler variant for extreme corrosion resistance, a Stainless Steel air cooler (304/316L) for food-grade and pharmaceutical applications, and a cubic air cooler with AlMg fins for balanced performance and cost-effectiveness. Fins are available in thicknesses from 0.15mm to 0.4mm, with customizable fin distances (4.5, 5, 5.5, 6, 8, 10, 12, 16-8mm or as required). The electrostatic powder-coated casing and insulated water tray ensure corrosion resistance and energy efficiency.

Performance Parameters

With a cooling capacity range of 15 ~ 300 kW, this unit cooler delivers powerful performance for large-scale cold storage. Its in-line geometry and downward air intake/upward exhaust design create a turbulence-free thermal blanket, ideal for sensitive produce. AC or EC fan motors reduce energy consumption, while low-static-pressure operation minimizes compressor cycling—core traits of an ECO cubic air cooler.

APPLICATIONS	Refrigeration
REFRIGERANTS	HFC	NH₃	CO₂	Glycol	Water	Brine
CAPACITY RANGE	15 ~ 300 kW
FIN DISTANCE	4.5 , 5 , 5.5 , 6 , 8 , 10 , 12 , 16-8 , or as requirements
GEOMETRY	In-line
AIR DIRECTION	Air intake from below, exhaust on above
MATERIAL	Titanium	Aluminum	AlMg	Stain steel 304/316	Copper	Epoxy	Powder coated	Al-Zn coated
TUBES	√	√		√	√	√
FINS	√	√	√	√	√	√
FIN THICKNESS	0.15mm	0.2~0.4mm	0.2~0.4mm	0.15~0.17mm	0.15~0.2mm	0.2~0.4mm
CASING	√			√			√	√
WATER TRAY	√			√			√	√
DEFROSTING	Electric	Hot gas	Air	Glycol	Brine	Water
COILS	√	√	√	√	√	√
FANS	√		√
WATER TRAY	√	√	√	√	√	√
FANS MOTORS	AC or EC fan motors
DIMENSIONS	500 , 600 , 630 , 700 , 800
NUMBERS	1 ~ 8

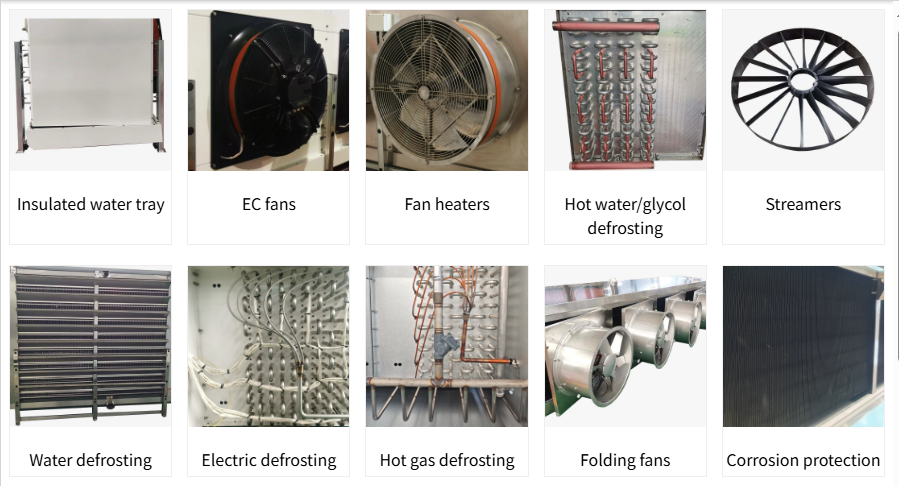

Accessories

Advantages

Core Features

Precision Upward Airflow for Sensitive Preservation

The patented upward-blowing aerodynamic design generates a gentle, uniform airflow that envelops perishables without disturbing surfaces. This feature is critical for vegetables, fruits, and pharmaceuticals, as it minimizes desiccation and preserves product freshness—setting it apart from standard industrial air coolers.

Hygienic & Corrosion-Resistant Build

As a Stainless Steel air cooler (optional), it meets strict hygiene standards for food and pharmaceutical industries. The electrostatic powder-coated exterior withstands chemical sanitation and high-chloride environments, while side-mounted inspection windows allow real-time monitoring without disrupting operations.

Energy-Smart & Low-Maintenance Design

This ECO cubic air cooler uses low-static-pressure fans to reduce energy waste, lowering operational costs. Quick-access panels and tool-free coil cleaning simplify maintenance, a key benefit for facilities requiring reliable, low-upkeep compact air cooler solutions.

Adaptive Installation Flexibility

While designed as a floor-standing unit, the GDCF series offers ceiling-mount flexibility for space-constrained facilities. This adaptability makes it a versatile unit cooler for diverse industrial layouts, from large vegetable cold rooms to compact pharmaceutical storage areas.

Applications

Application Scenarios

Vegetables Cold Storage Rooms

The gentle airflow and high humidity retention of this compact air cooler make it perfect for storing leafy greens, root vegetables, and berries. It minimizes weight loss and preserves texture, extending shelf life for fresh produce.

Pharmaceutical Storage

In pharmaceutical facilities, the cooler’s turbulence-free airflow and temperature consistency ensure compliance with strict storage requirements. The Stainless Steel air cooler variant meets hygiene standards for sensitive medical products.

Seafood Processing Facilities

The corrosion-resistant construction (including titanium air cooler options) withstands high-chloride atmospheres in seafood processing plants. The drip containment system eliminates frost-related water spillage, maintaining a clean, safe workspace.

Fruit Preservation Warehouses

For delicate fruits like strawberries or grapes, the upward-blowing design prevents surface desiccation, preserving flavor and appearance. The ECO cubic air cooler efficiency reduces energy use while maintaining optimal storage conditions.

FAQ

FAQ About GDCF

Can the GDCF series maintain high humidity for leafy vegetables?

Yes. Its upward-blowing, turbulence-free airflow creates a thermal blanket that retains humidity, minimizing moisture loss—ideal for leafy greens, herbs, and other humidity-sensitive produce.

Is this cooler easy to clean in food processing environments?

Absolutely. As a Stainless Steel air cooler (when specified), it features quick-access panels and tool-free coil cleaning, allowing thorough sanitation without downtime—critical for food safety compliance.

Can the GDCF series be installed as a ceiling-mounted unit?

Yes. It offers adaptive installation, including ceiling-mount options, making it a flexible compact air cooler for space-constrained facilities like small cold rooms or pharmaceutical labs.

What makes this an ECO cubic air cooler?

Its low-static-pressure fans reduce energy consumption, compatibility with eco-friendly refrigerants (e.g., CO₂), and low maintenance requirements (reducing resource use) align with eco-friendly industrial practices—defining it as a true ECO cubic air cooler.
