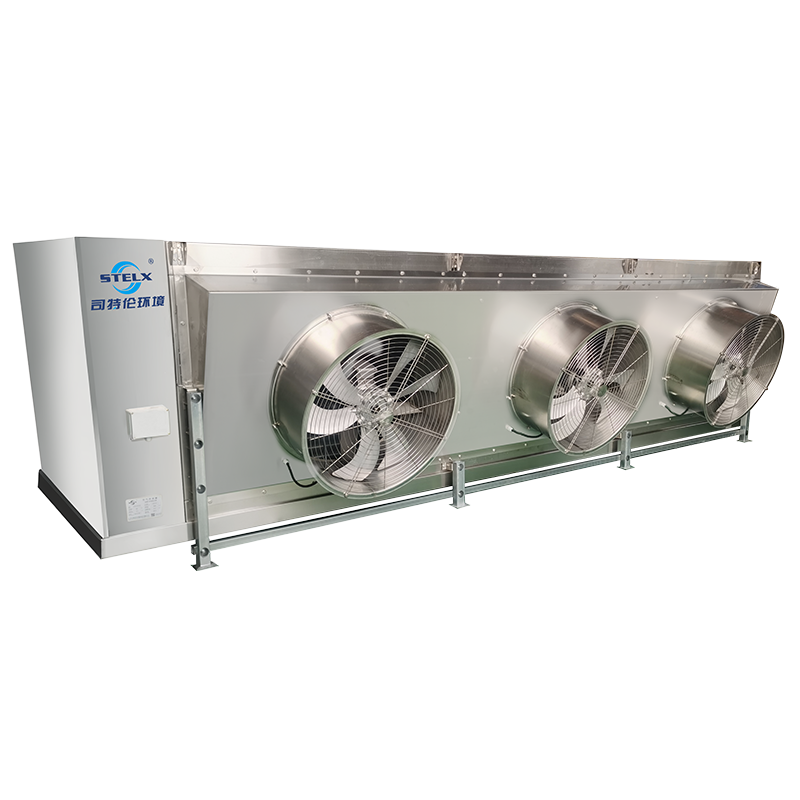

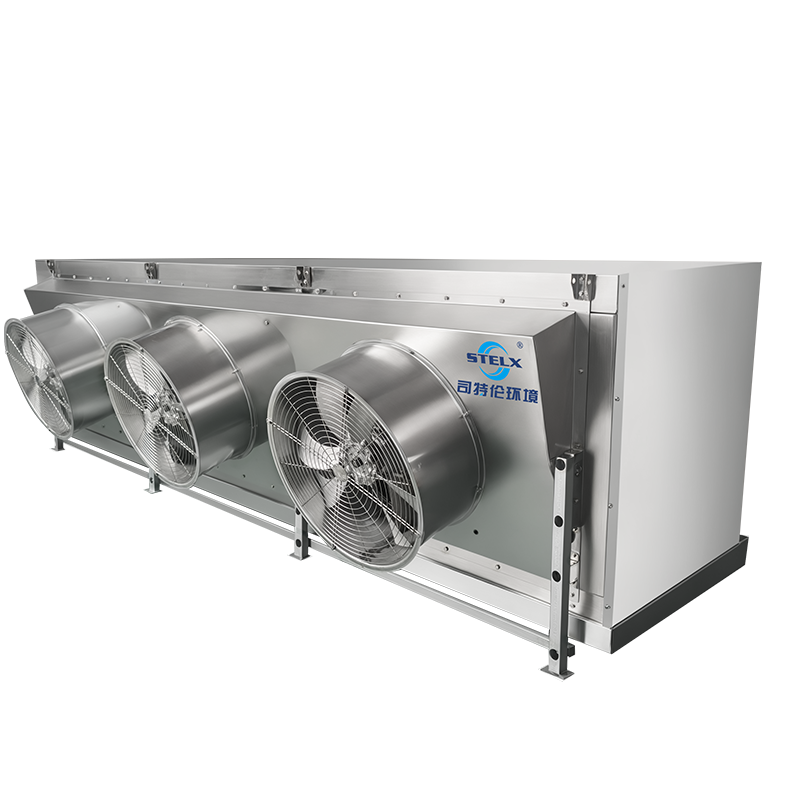

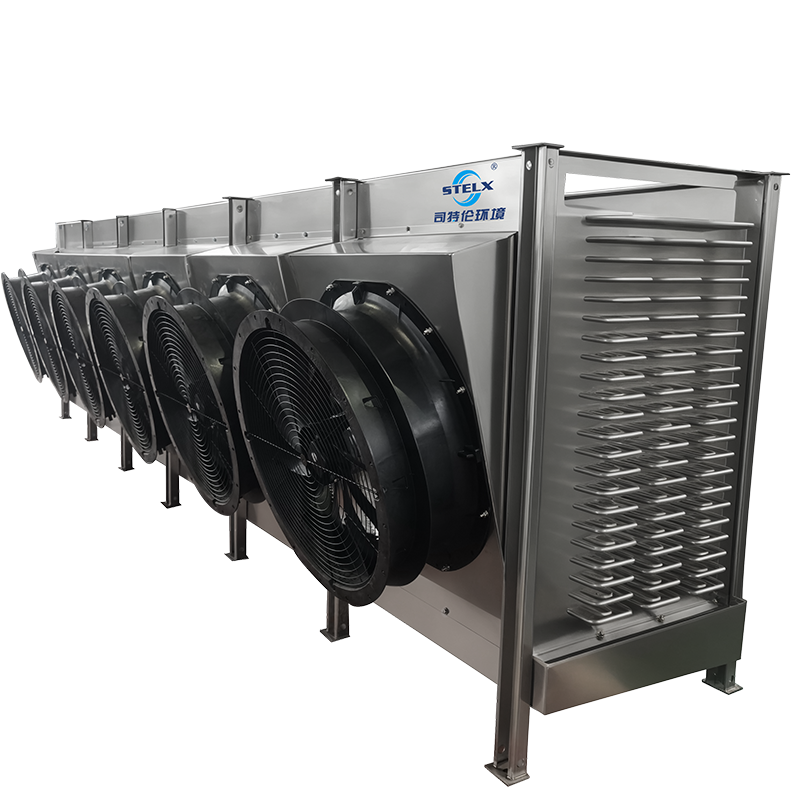

Low Noise Reliable Performance Oblique Draft Industrial Blast Freezer Evaporator

Overview

Designed to eliminate direct airflow on goods while accelerating freezing cycles, this industrial-grade equipment combines low noise operation, reliable performance, and customizable configurations to protect product integrity—making it a top choice for high-value applications like ice cream production, flower preservation, and pharmaceutical freezing. With a cooling capacity range of 15 ~ 200 kW and compatibility with multiple refrigerants (HFC, NH₃, CO₂, etc.), it adapts seamlessly to diverse cold storage needs while minimizing moisture loss and maintaining consistent quality.

The adjustable-angle plenum can effectively avoid direct blowing of goods and reduce dry consumption.

The 304 stainless steel protective net meets hygiene requirements and can prevent debris from entering the equipment, which can affect the operation effect.

Details

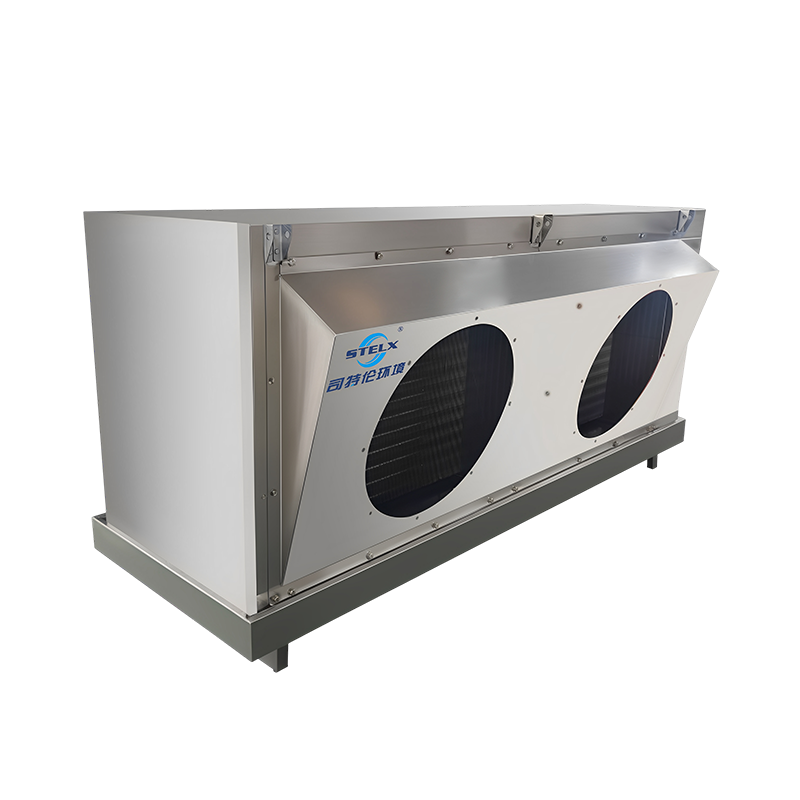

Innovative Oblique Airflow Design

At the core of this evaporator is the adjustable-angle plenum chamber, a unique feature that redirects airflow to avoid direct blowing on delicate products. This design not only reduces dry consumption (moisture loss) by up to 30% but also creates optimal internal/external air circulation, ensuring faster and more uniform freezing. The reinforced plenum structure guarantees vibration-free operation, preventing damage to fragile items like pastries or flowers during the freezing process.

Premium Corrosion-Resistant Materials

Constructed with high-quality materials including 304/316 stainless steel, titanium, aluminum, and copper, the evaporator offers exceptional durability and compliance with strict hygiene standards. The 304 stainless steel protective filter mesh prevents debris from entering the system, safeguarding performance and extending service life. Its heavy-duty build supports 24/7 reliable operation in demanding industrial environments, while corrosion-resistant coatings (epoxy, powder coated, Al-Zn coated) ensure longevity even in high-humidity settings.

Smart Defrost & Versatile Mounting

Equipped with a multi-mode defrost system (electric, hot gas, water, glycol, etc.), the evaporator enables fast and uniform defrosting to avoid ice accumulation. The deep, sloped water tray prevents overflow and dripping, maintaining a clean operational environment. Additionally, optional support structures allow flexible ceiling or floor mounting, adapting to various cold room layouts and spatial constraints—whether for small-scale production facilities or large distribution centers.

Find suitable accessories for Oblique Draft blast freezer

Insulated water tray

Fan heaters

Hot water/glycol defrosting

Streamers

Water defrosting

Electric defrosting

Hot gas defrosting

Maintenance door

Mounting feet

Corrosion protection

Filter mesh

Baffle defrosting

Distributions protection

Hinged water tray

Core Features

Oblique Draft Plenum Chamber: Eliminates direct airflow, protects delicate products

Moisture-Loss Reduction: Minimizes dry consumption, preserves product texture and appearance

Low Noise Operation: Ensures a quiet working environment for industrial settings

Customizable Configuration: Unitary or split-type designs, adjustable fin distances (10~40mm)

High Cooling Capacity: 15~200 kW range, suitable for large-scale freezing needs

Corrosion-Resistant Build: Compatible with harsh industrial and high-humidity conditions

Vibration-Free Performance: Maintains product integrity during freezing

Multi-Refrigerant Compatibility: Works with HFC, NH₃, CO₂, glycol, water, and brine

Tool-Free Maintenance: Easy access to coils and filters for hassle-free cleaning

Hygiene-Certified Components: 304 stainless steel filter mesh meets food and pharmaceutical standards

Usage

This Oblique Draft Blast Freezer Evaporator is tailored for scenarios where product quality and appearance are non-negotiable:

Premium Ice Cream Production: Preserves creaminess and prevents ice crystal formation

Flower Preservation Freezing: Maintains petal integrity and color for long-term storage

Delicate Pastry Freezing: Protects fragile textures of cakes, croissants, and confections

Pharmaceutical Product Freezing: Ensures temperature-sensitive meds retain efficacy

Seafood & Fresh Produce: Minimizes moisture loss for frozen fruits, vegetables, and seafood

What refrigerants are compatible with this evaporator?

It works with HFC, NH₃ (ammonia), CO₂, glycol, water, and brine—covering most industrial refrigeration needs.

Can it be installed in small cold rooms?

Yes! Its customizable design (unitary/split-type) and flexible mounting (ceiling/floor) make it suitable for both small production facilities and large warehouses.

How does it reduce moisture loss?

The adjustable-angle plenum chamber avoids direct airflow on products, while optimized air circulation minimizes dry consumption—critical for high-value goods.

What is the fin distance range?

Standard fin distances include 10, 12, 16-8, 18-9, 20-10, 24-12-6, 30-15, 40-20-10 mm, and custom options are available.

Is it easy to maintain?

Absolutely. The design includes tool-free access to coils and filters, and the corrosion-resistant materials reduce cleaning frequency and extend service life.
