GNA/GNF/GNC
| Availability: | |
|---|---|
| Quantity: | |

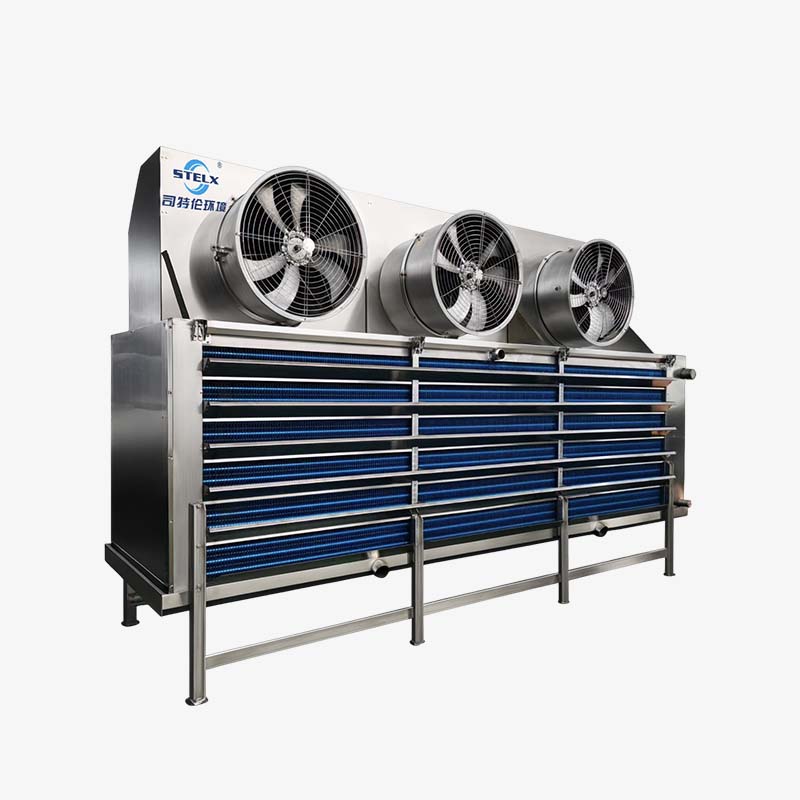

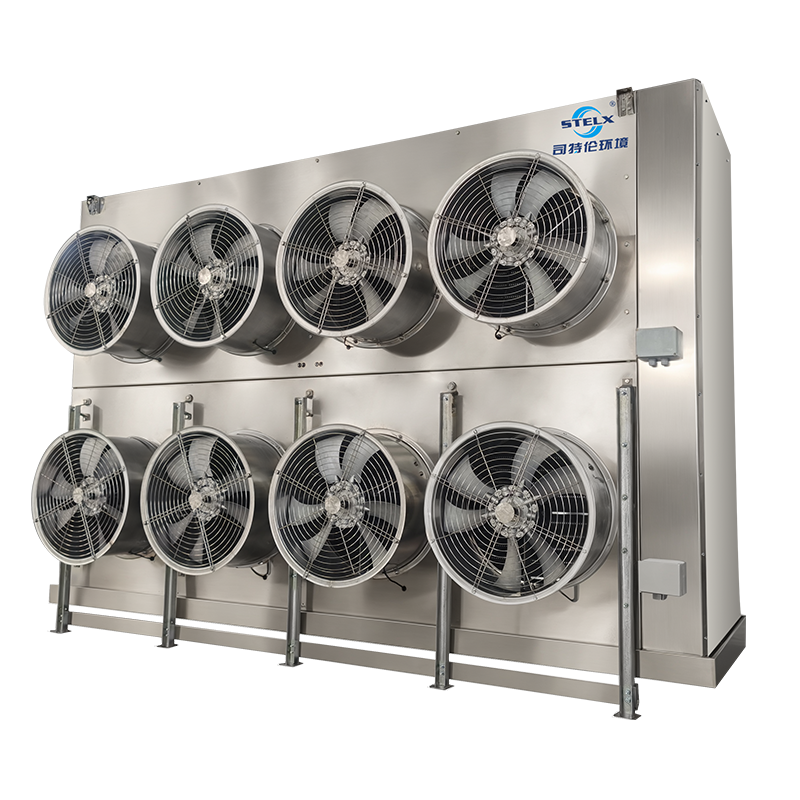

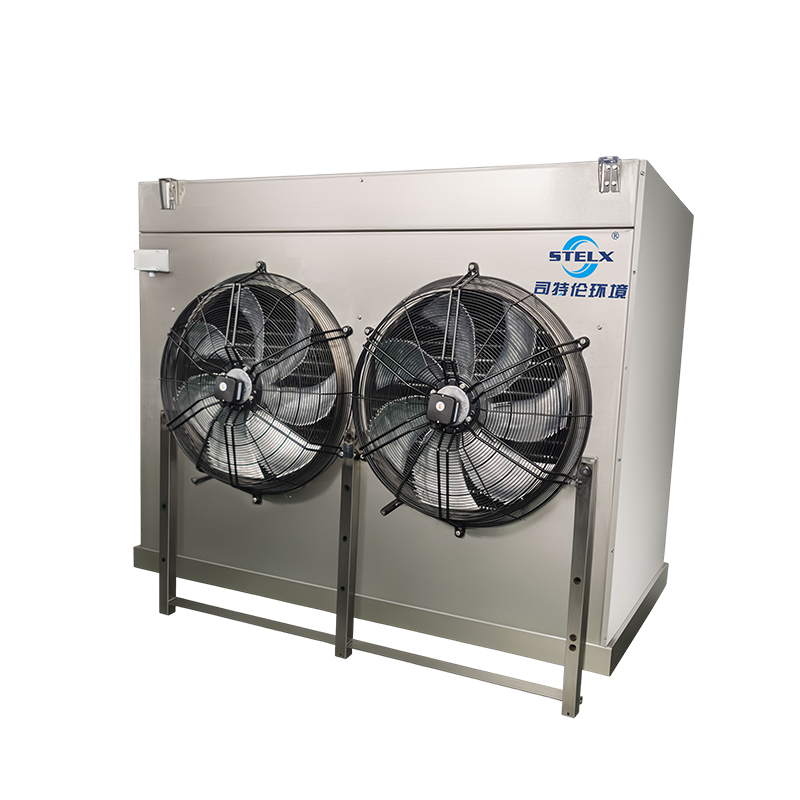

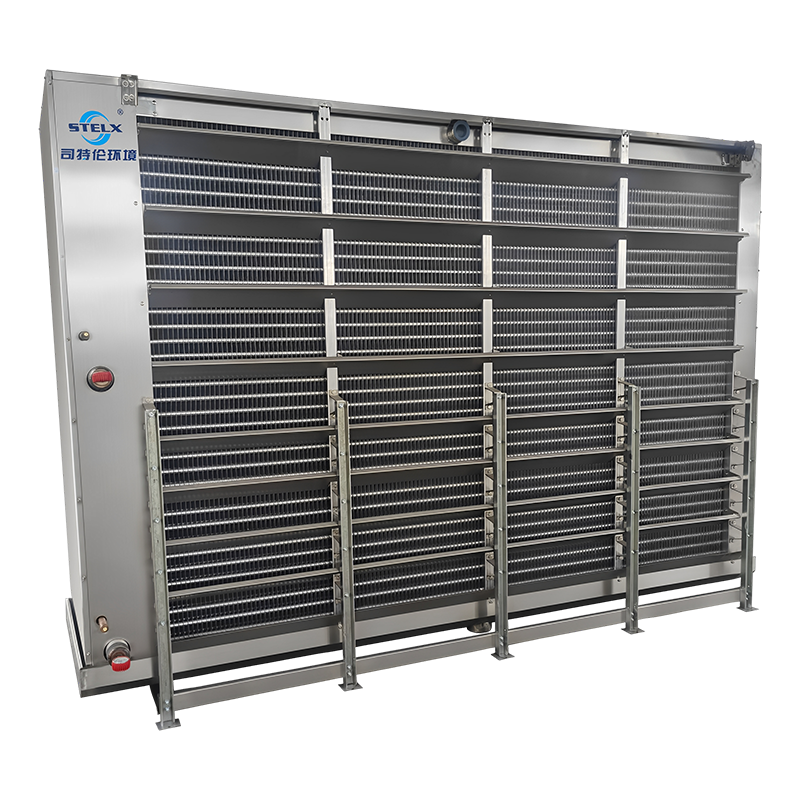

Blast freezer
INTRODUCTION
To meet the challenges of deep freezing products in demanding rooms, the GA/GF/GC floor-standing blaster freezer came into being.
Innovative Space-Saving Design
The GA/GF/GC series redefines industrial freezing technology with its breakthrough built-in return air plenum, eliminating traditional rear clearance requirements for true wall-mounted installation. This patented configuration maximizes valuable floor space while maintaining optimal thermal performance. Customizable dimensions (both length and height) ensure perfect adaptation to your existing cold storage layout, delivering complete airflow coverage without circulation dead zones. The dual-reinforced air collector hood with vibration-dampening technology guarantees stable operation even under extreme freezing conditions.
Engineered for Industrial Demands
Featuring detachable intake covers for easy transport and installation, our blast freezers are equipped with high-pressure, high-volume industrial fans specifically designed for cold storage applications, ensuring full-range air distribution. The intelligent airflow system incorporates splash-proof baffles that simultaneously protect products from moisture while enhancing aerodynamic efficiency. The heavy-duty base frame with anchoring points provides exceptional stability, while the optional forklift guard protects your investment in busy warehouse environments.
Adaptable Performance
Choose from multiple defrost methods (water spray, electric, hot gas, or thermal fluid) to perfectly match your operational requirements and regional climate conditions. This unparalleled flexibility, combined with premium stainless steel construction, makes the GA/GF/GC series the ideal solution for:
◆ High-volume meat and seafood processing
◆ IQF (Individual Quick Freezing) operations
◆ Prepared foods and ready-meal production
◆ Pharmaceutical cold chain storage
Technical Highlights
◆ Wall-mounted design maximizes floor space utilization
◆ Customizable dimensions for perfect cold storage integration
◆ Industrial-grade fans ensure complete coverage
◆ Multi-defrost options for climate adaptability
◆ Forklift-proof protection for warehouse safety
◆ Vibration-free operation for consistent performance
This advanced freezing solution represents the perfect marriage of space efficiency and industrial performance, designed to meet the most demanding food safety and quality preservation requirements while optimizing your valuable cold storage real estate.
| APPLICATIONS | Refrigeration | |||||||
| REFRIGERANTS | HFC | NH3 | CO2 | Glycol | Water | Brine | ||
| CAPACITY RANGE | 15 ~ 250 kW | |||||||
| FIN DISTANCE | 12 , 16-8 , 18-9 , 20-10 , 24-12-6 , 30-15 , 40-20-10 mm, or as requirements | |||||||
| GEOMETRY | In-line | |||||||
| AIR DIRECTION | Horizontal air intake and horizontal exhaust | |||||||
| MATERIAL | Titanium | Aluminum | AlMg | Stain steel 304/316 | Copper | Epoxy | Powder coated | Al-Zn coated |
| TUBES | √ | √ | √ | √ | √ | |||
| FINS | √ | √ | √ | √ | √ | √ | ||
| FIN THICKNESS | 0.15mm | 0.2~0.4mm | 0.2~0.4mm | 0.15~0.17mm | 0.15~0.2mm | 0.2~0.4mm | ||
| CASING | √ | √ | √ | √ | ||||
| WATER TRAY | √ | √ | √ | √ | ||||
| DEFROSTING | Electric | Hot gas | Air | Glycol | Brine | Water | ||
| COILS | √ | √ | √ | √ | √ | √ | ||
| FANS | √ | √ | ||||||
| WATER TRAY | √ | √ | √ | √ | √ | √ | ||
| FANS MOTORS | AC or EC fan motors | |||||||
| DIMENSIONS | 600 , 630 , 700 , 800 | |||||||
| NUMBERS | 1 ~ 8 | |||||||
Long service life
High cooling capacity
Minimize goods weight loss
High performance for variable situations
Optimized design for storage and transport
Find suitable accessories for GNA/GNF/GNC blast freezer

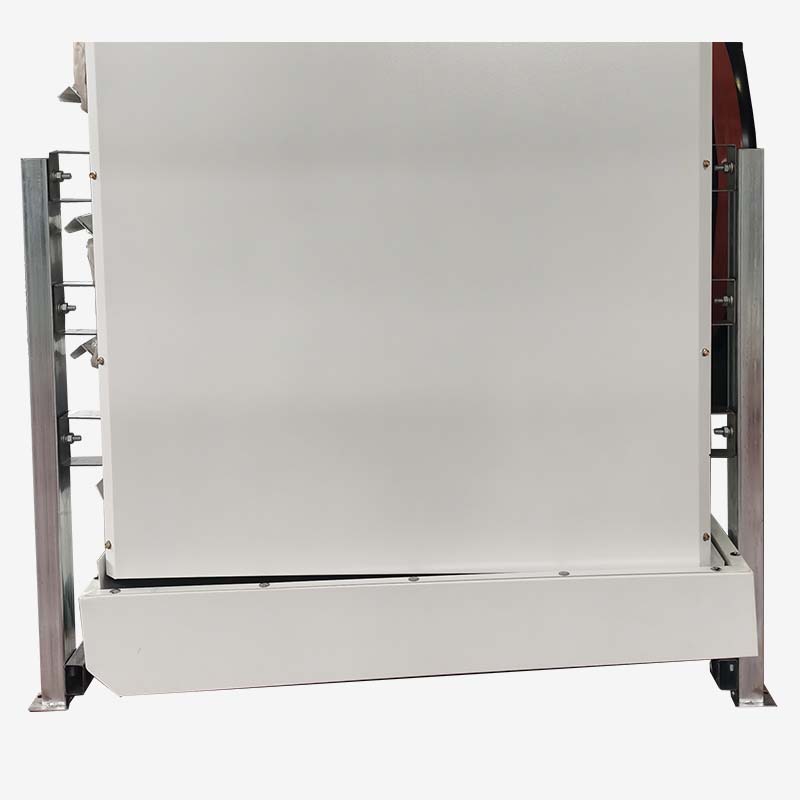

Insulated water tray

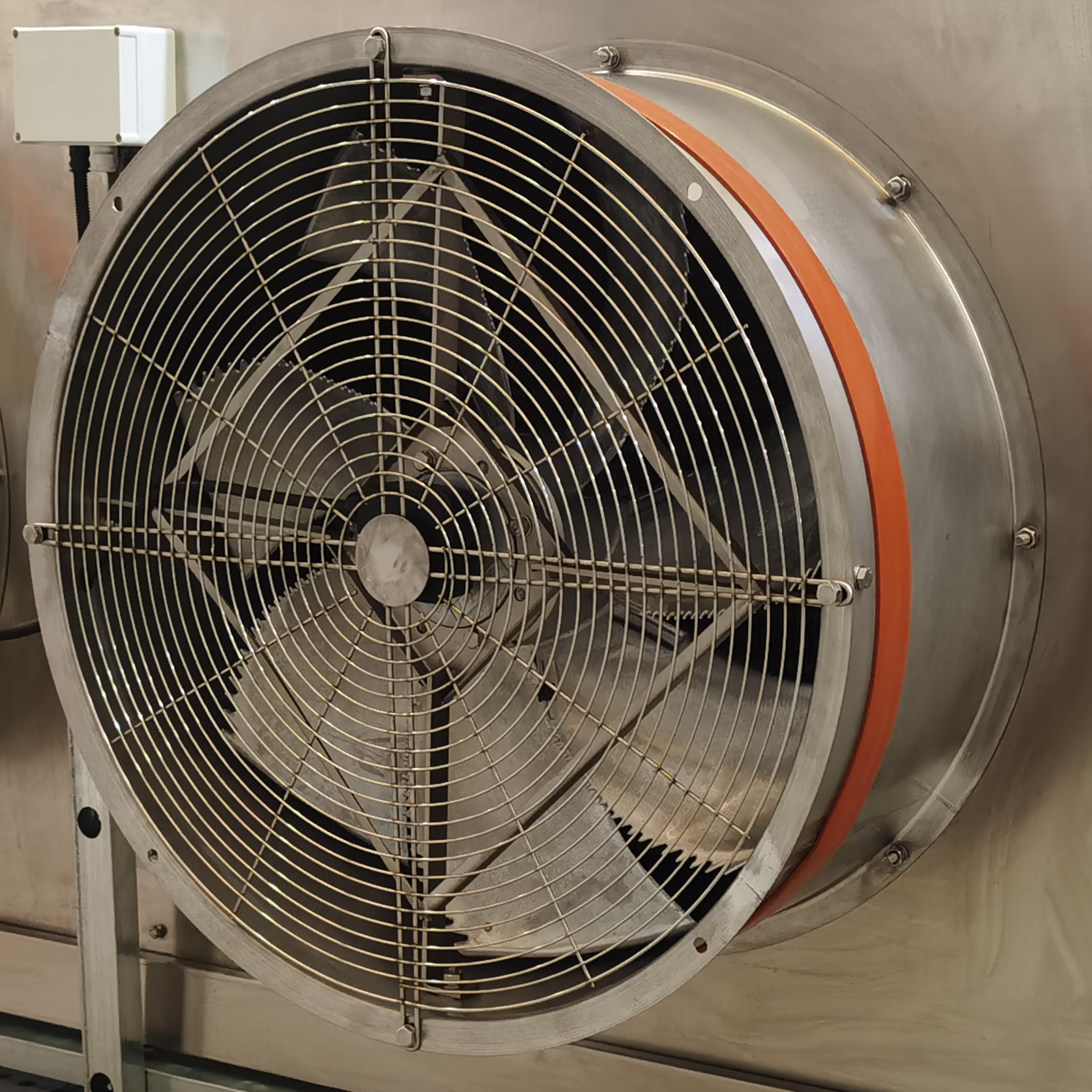

Fan heaters
Fan heaters

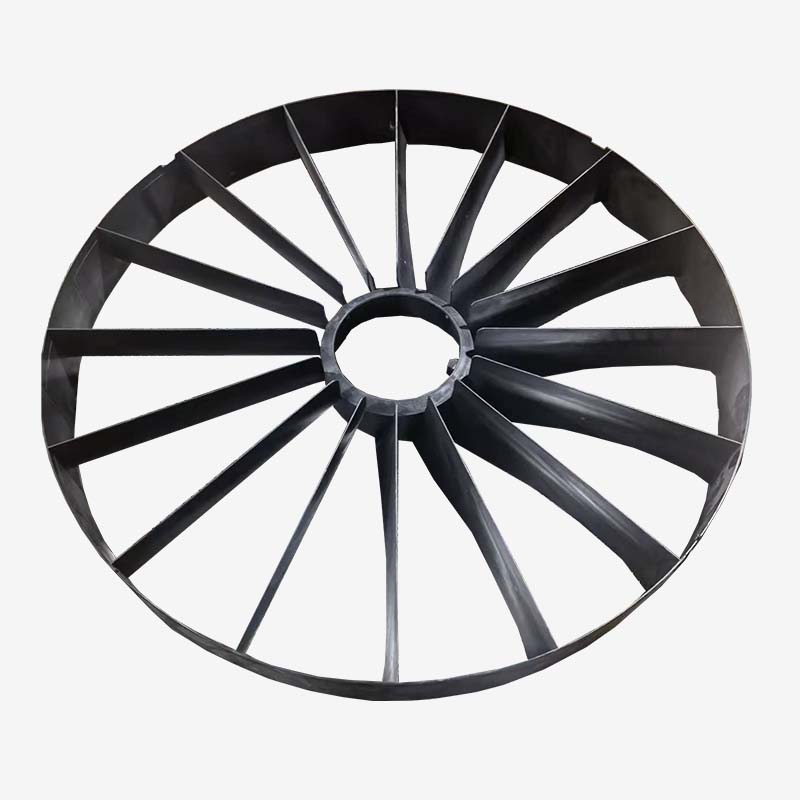

Streamers

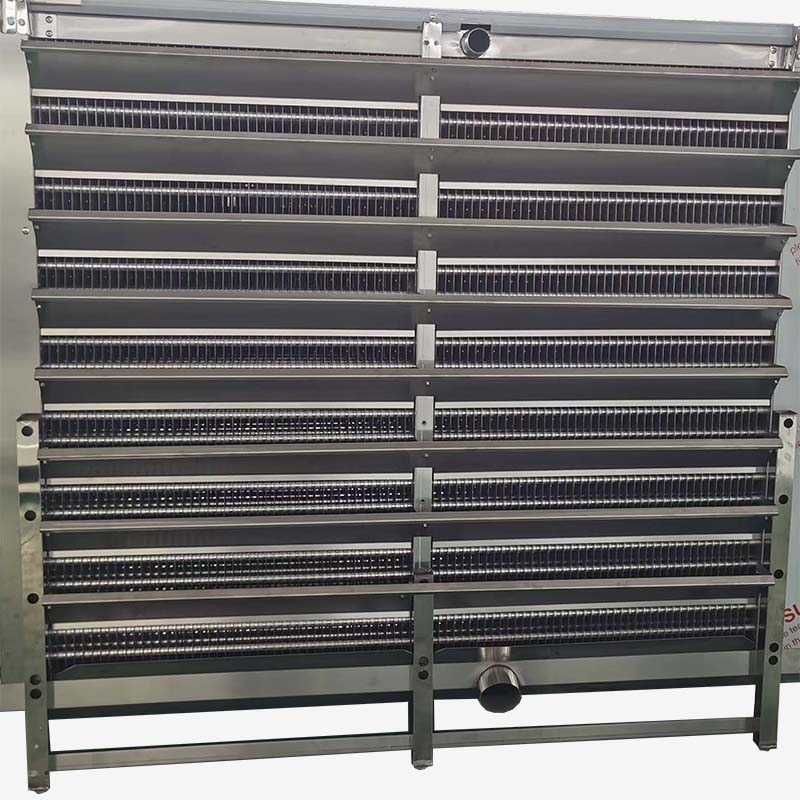

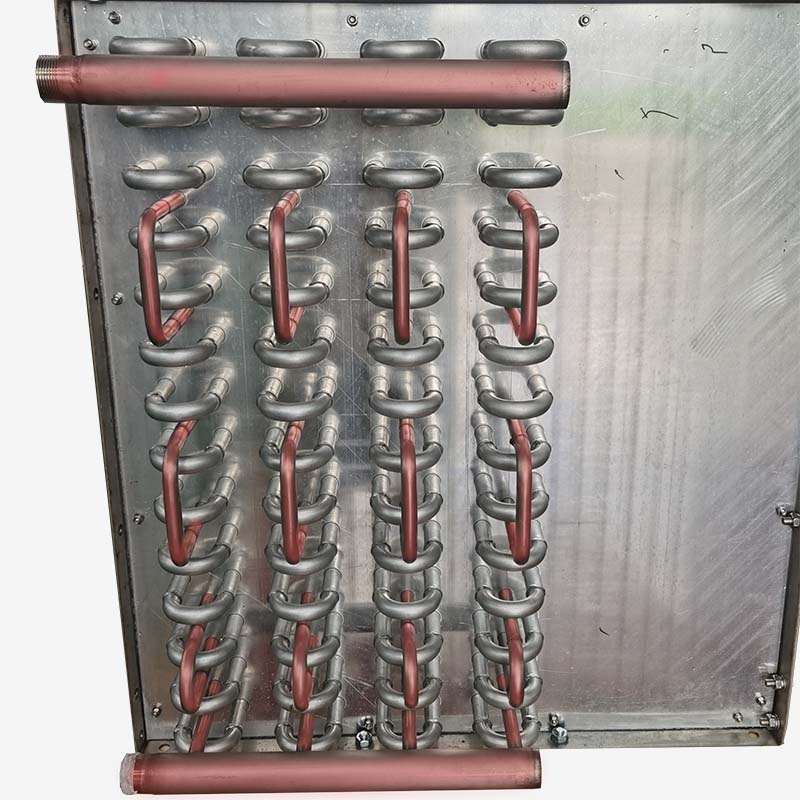

Water defrosting

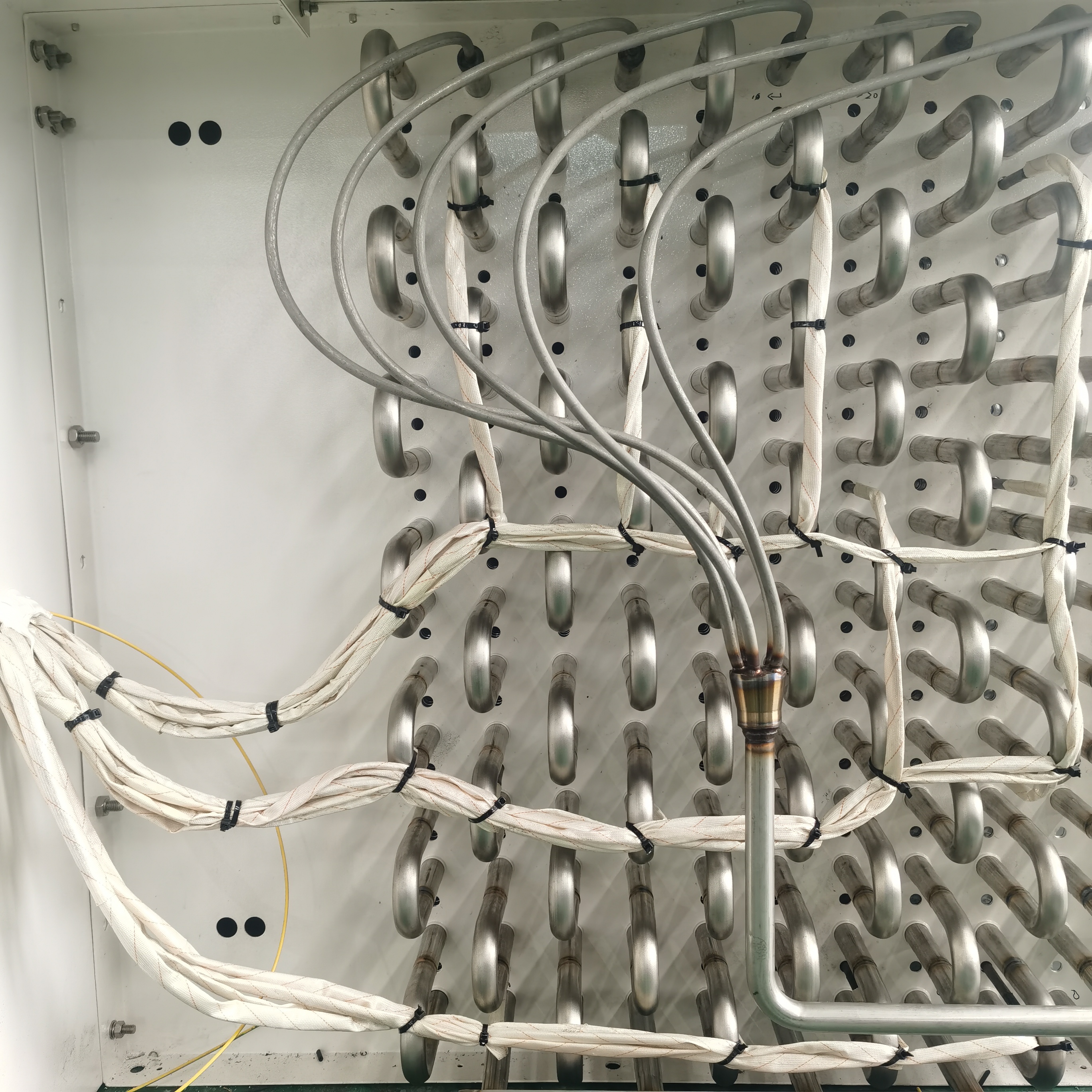

Electric defrosting

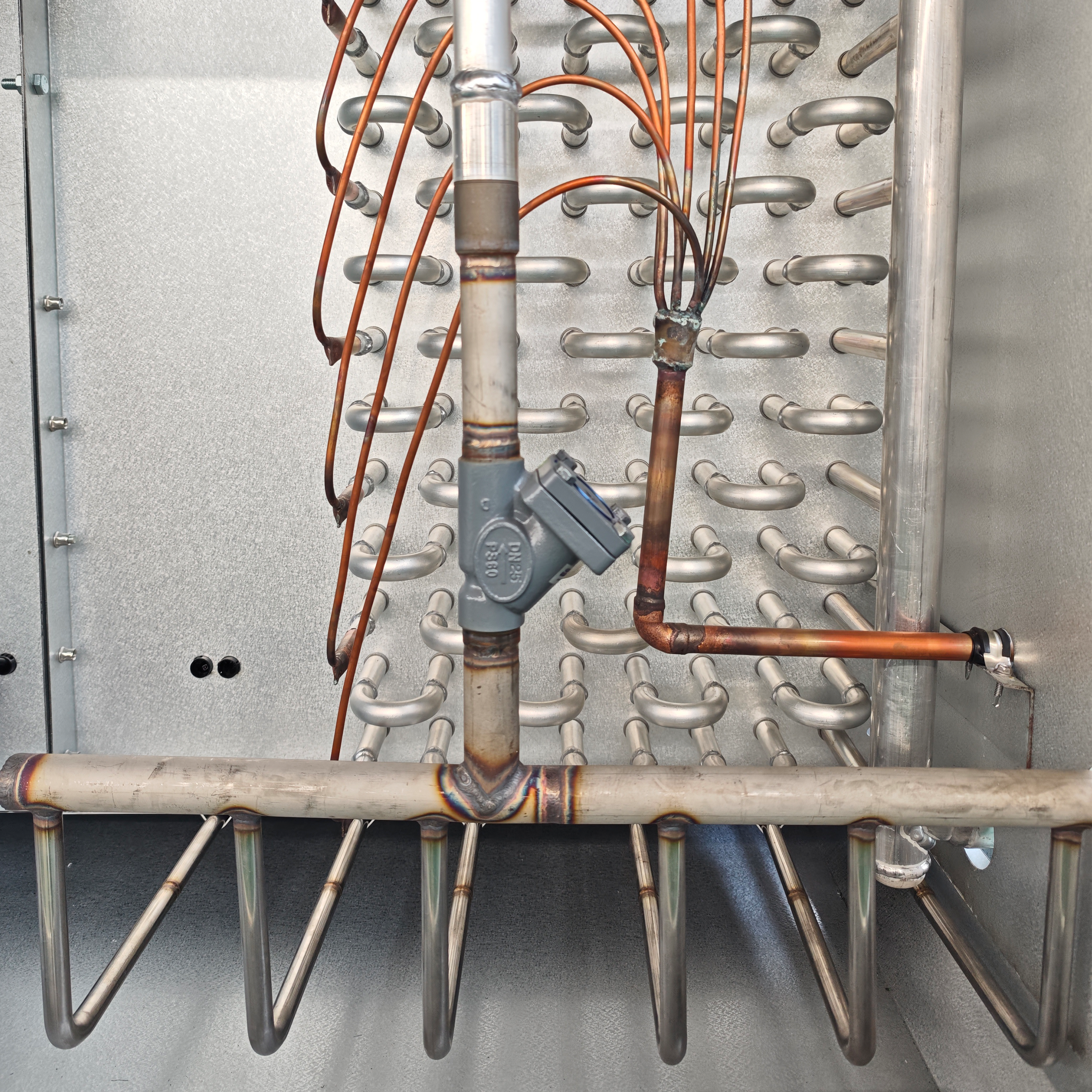

Hot gas defrosting

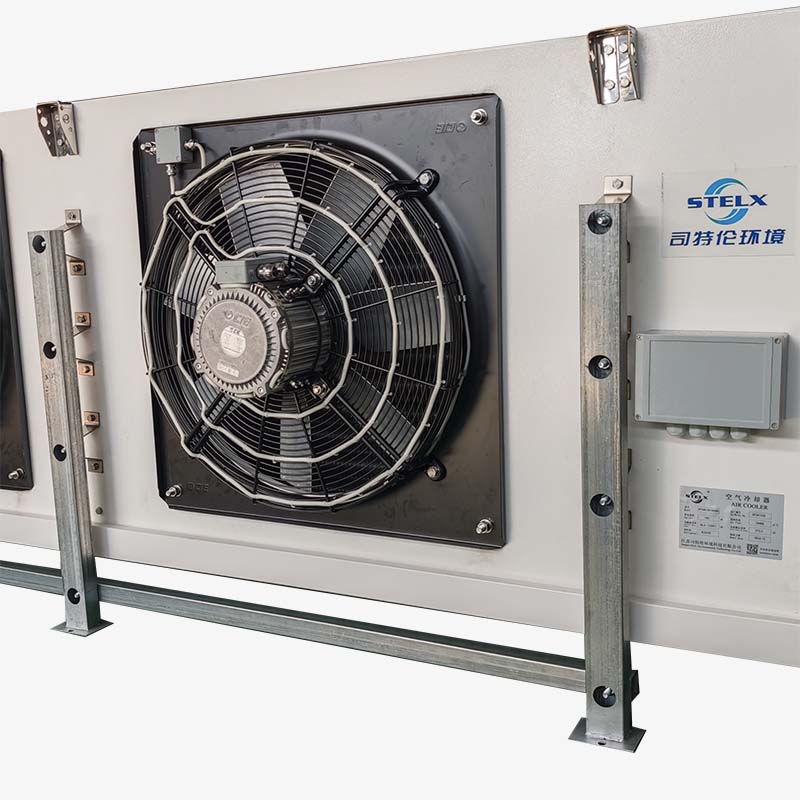

Mounting feet

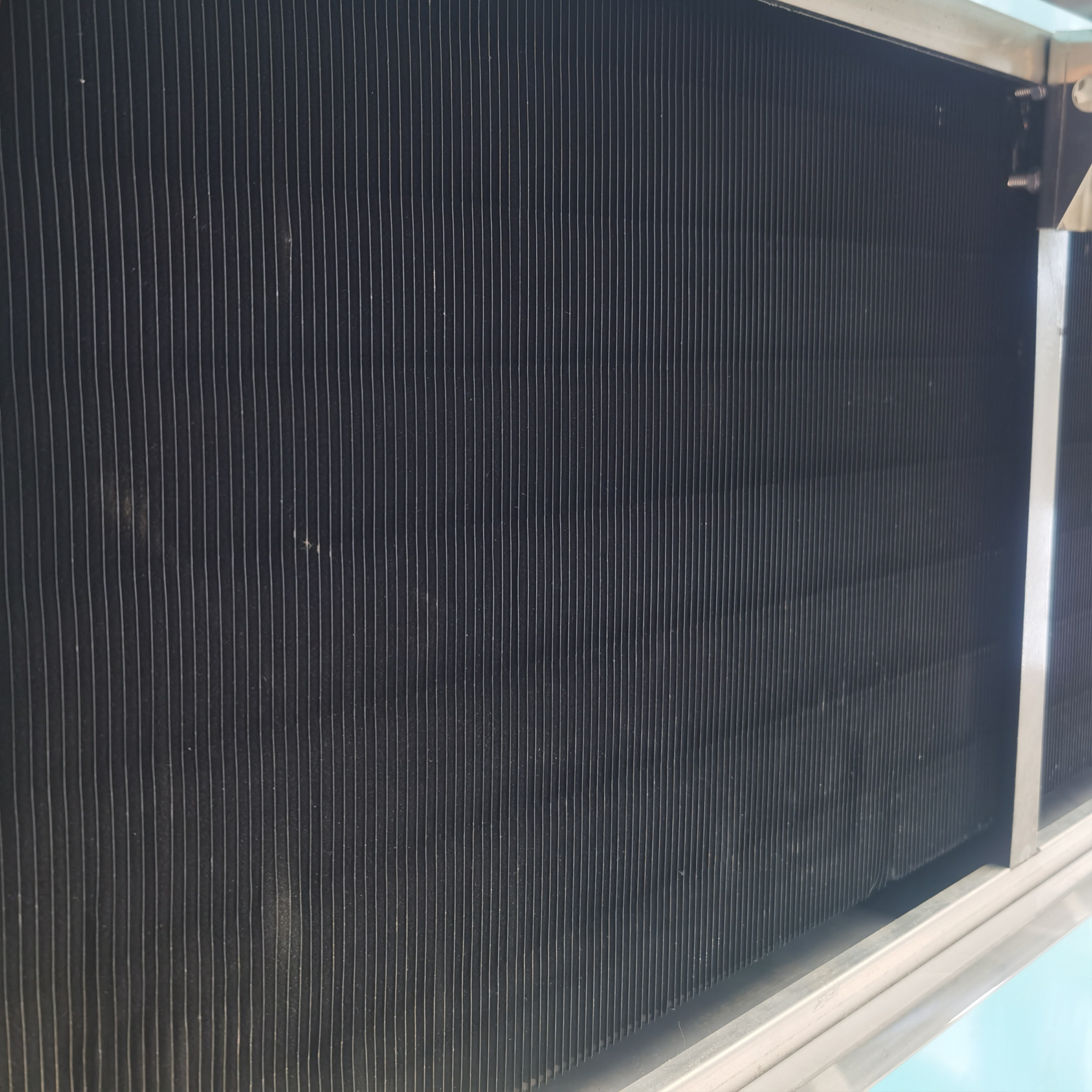

Corrosion protection

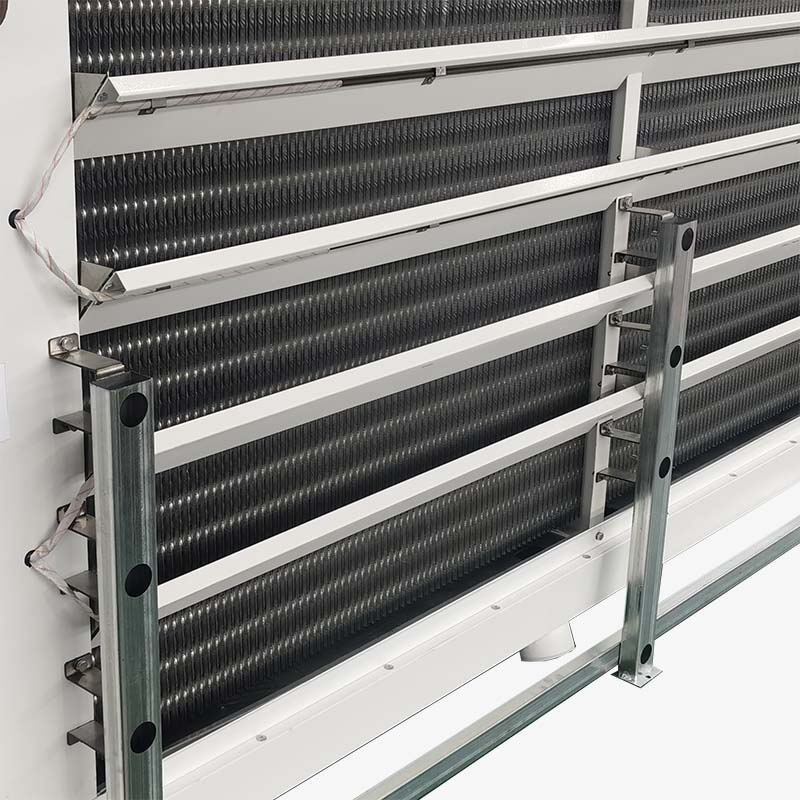

Baffle defrosting

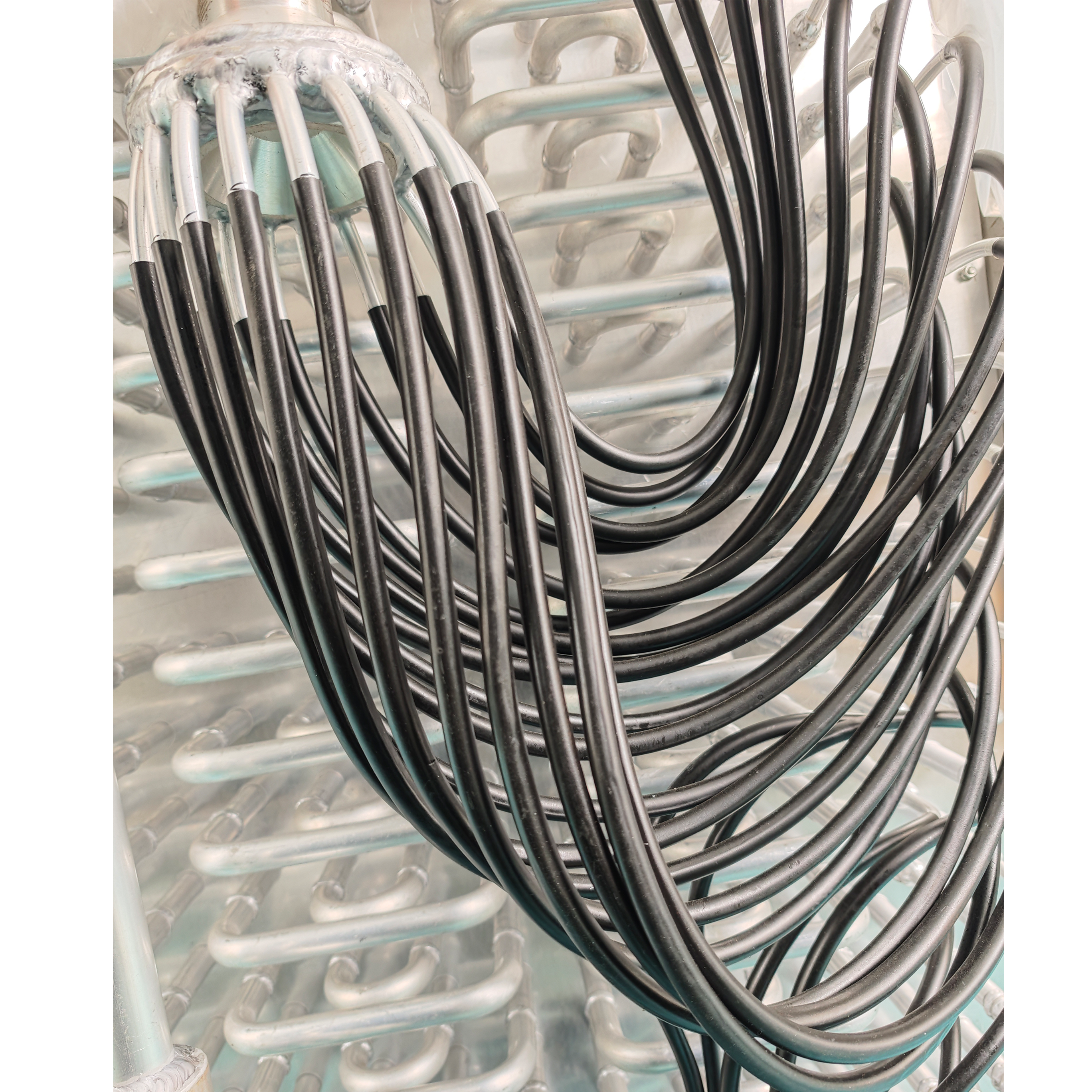

Distributions protection
