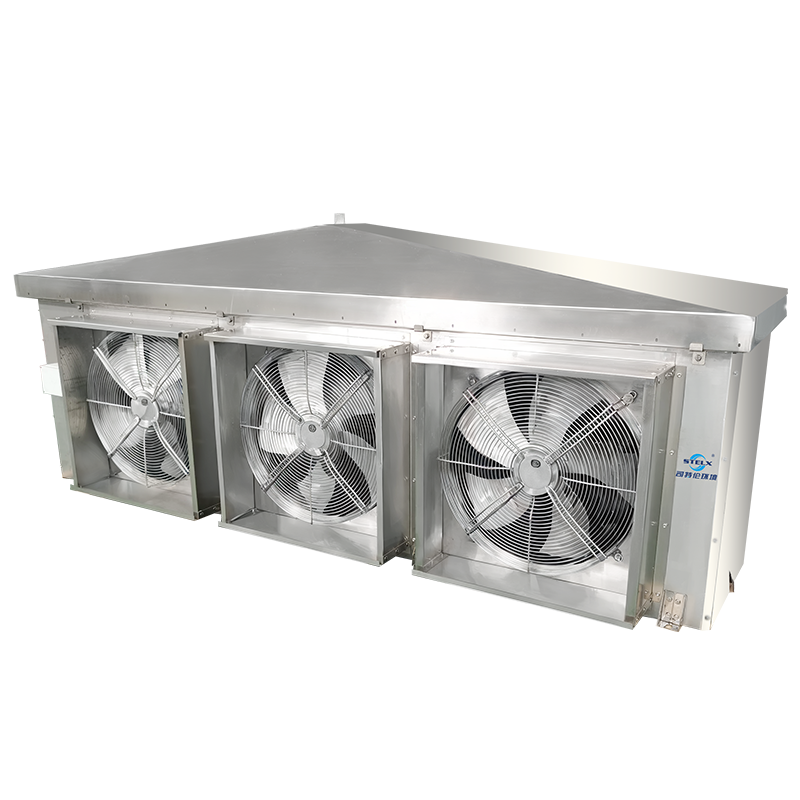

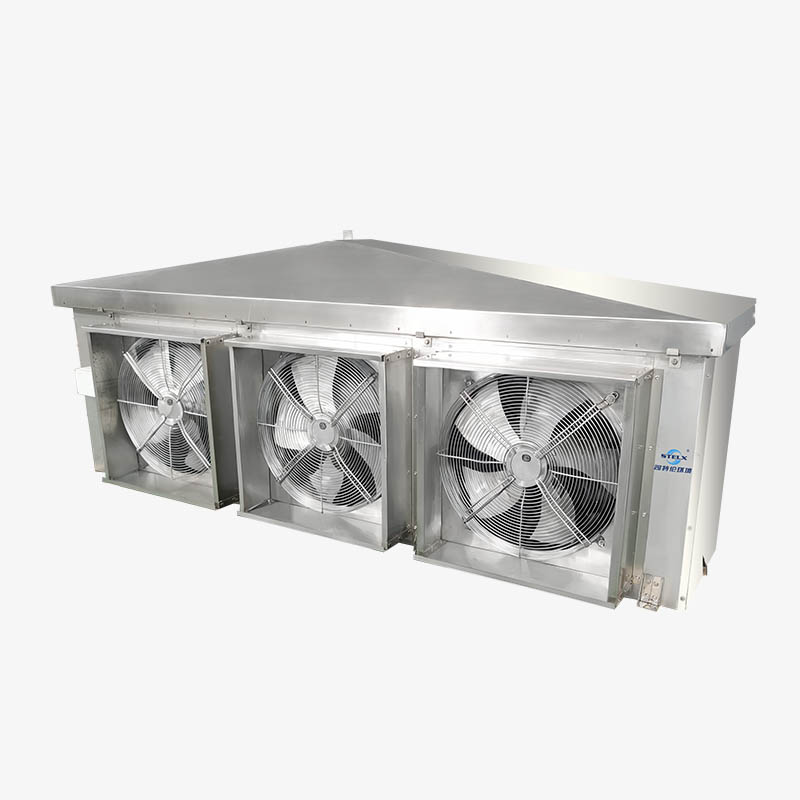

Low-Noise Reliable Cold Storage Industrial Evaporator

Overview

Details

This industrial evaporator combines robust construction with advanced technology to deliver reliable cooling. The cooling capacity ranges from 5 to 100 kW, making it suitable for medium to large cold storage facilities and blast freezer units. It supports a wide range of refrigerants, including HFC, NH₃, CO₂, Glycol, Water, and Brine, ensuring compatibility with existing cooling systems. The fin distance is 5.0-8.0mm (or customizable as per requirements), and the geometry features an in-line design for optimal airflow. Air direction is horizontal one-sided, providing targeted cooling where it’s needed most.

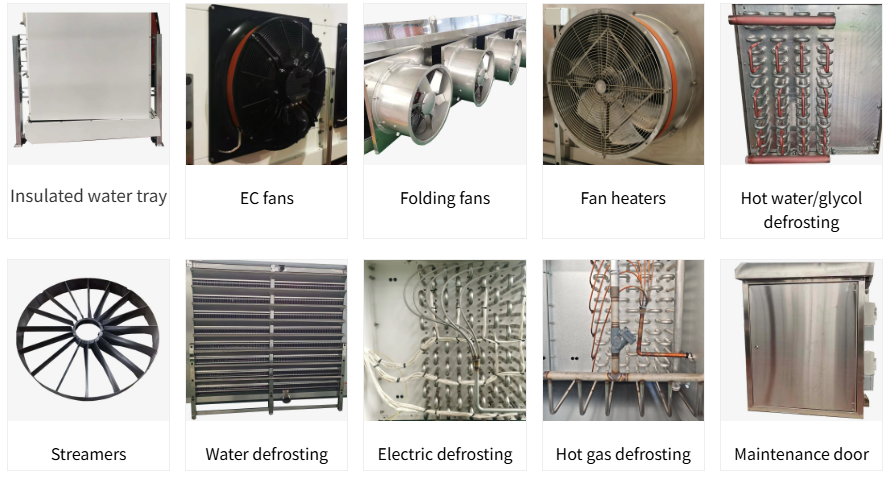

Constructed from high-quality materials—Titanium, Aluminum, AlMg, Stainless Steel 304/316, Copper, Epoxy, Powder-coated, and Al-Zn coated—the unit offers durability and versatility. The Stainless Steel evaporator variant is ideal for hygienic environments like food processing plants, while the Aluminum evaporator provides lightweight efficiency. Fins are available in thicknesses from 0.15mm to 0.4mm, ensuring efficient heat transfer, and tubes are compatible with all major materials. The unit is equipped with AC or EC fan motors for low-noise, energy-efficient operation, and defrosting options include Electric, Hot gas, Air, Glycol, Brine, and Water. Dimensions range from 450mm to 700mm, with 1-8 fan units available to adjust capacity, and the double-insulated V-shaped drain pan prevents condensation and residual water issues.

Core Features

Revolutionary Double V-Shaped Design

The V-shaped drain pan with 20mm double insulation eliminates residual water buildup and condensation, a common problem in traditional evaporators. Laser-welded joints ensure zero leakage and burr-free construction.

Low-Noise Operation

The adjustable suspension system and full stainless steel fan assembly with range extenders deliver vibration-free, low-noise performance—critical for environments like pharmaceutical storage and logistics centers.

Hygienic & Easy to Clean

Smooth, easy-to-clean surfaces meet strict sanitation requirements, making the unit ideal for food processing plants and evaporator for IQF applications where hygiene is paramount.

Durable Construction

Laser-welded seams, corrosion-resistant materials, and integrated intake baffles enhance structural integrity, ensuring long-lasting performance even in high-demand fast freezer evaporators and blast freezer units.

Flexible Installation

Multiple mounting options adapt to various facility layouts, from large cold storage warehouses to compact distribution centers. The unit’s optimized design also simplifies storage and transport.

Energy-Efficient Performance

EC fan motors and optimized heat transfer components reduce energy consumption, lowering operational costs while maintaining consistent cooling.

Application Scenarios

This reliable evaporator unit is designed for critical industrial applications that require precision and durability:

Large-Scale Cold Storage: Cold storage facilities for food, pharmaceuticals, and other temperature-sensitive goods benefit from the unit’s consistent cooling and low-noise operation, ensuring product quality and a safe working environment.

Food Processing Plants: Evaporator for IQF and evaporator for spiral quick freezer applications require rapid, uniform cooling. This unit’s hygienic design and efficient heat transfer make it ideal for freezing fruits, vegetables, and meat.

Pharmaceutical Storage: Pharmaceuticals demand strict temperature control and low contamination risk. The Stainless Steel evaporator variant provides corrosion resistance and hygienic operation, meeting industry standards.

Logistics Distribution Centers: Distribution centers need efficient cooling to preserve goods during storage and transit. The unit’s low energy consumption and flexible installation make it suitable for large warehouses.

Blast Freezer Units: Blast freezer systems require high-capacity, rapid cooling. This evaporator’s robust construction and high cooling capacity (5-100 kW) ensure it can handle the demands of blast freezing applications.

Specialty Cold Storage: Environments like seafood storage facilities and frozen food warehouses benefit from the unit’s reliable defrosting options and corrosion protection, ensuring long-term performance.

FAQ About Spiral Freezer Evaporator

Is this evaporator suitable for fast freezer applications?

Yes, this evaporator unit is specifically engineered as fast freezer evaporators, making it ideal for blast freezer units, evaporator for IQF, and evaporator for spiral quick freezer applications. Its high cooling capacity and rapid heat transfer ensure efficient freezing while preserving product quality.

Can I choose between Stainless Steel and Aluminum evaporator materials?

Absolutely. We offer both Stainless Steel evaporator and Aluminum evaporator options. The Stainless Steel variant is perfect for hygienic, corrosion-resistant applications, while the Aluminum option provides lightweight efficiency and cost-effectiveness.

What makes this evaporator low-noise?

The unit features an adjustable suspension system that reduces vibration during operation, combined with a full stainless steel fan assembly designed for quiet performance. This ensures low-noise operation, making it suitable for noise-sensitive environments like pharmaceutical storage.

What is the lead time for delivery?

The standard delivery time is 20-30 days from the date of order confirmation. We prioritize efficient production to ensure you receive your evaporator in time to meet your project or operational needs.

Do you offer customization for specific facility layouts?

Yes, we provide flexible customization options, including mounting solutions, dimensions, and fan numbers (1-8), to adapt to your facility’s unique layout. Whether you need a compact unit for a small warehouse or a large system for a blast freezer, we tailor the evaporator to your requirements.

What is the warranty period for this industrial evaporator?

The evaporator comes with a one-year warranty from the manufacturing date, covering defects in materials and workmanship. Our dedicated after-sales team is available to assist with any issues, ensuring peace of mind for your investment.
