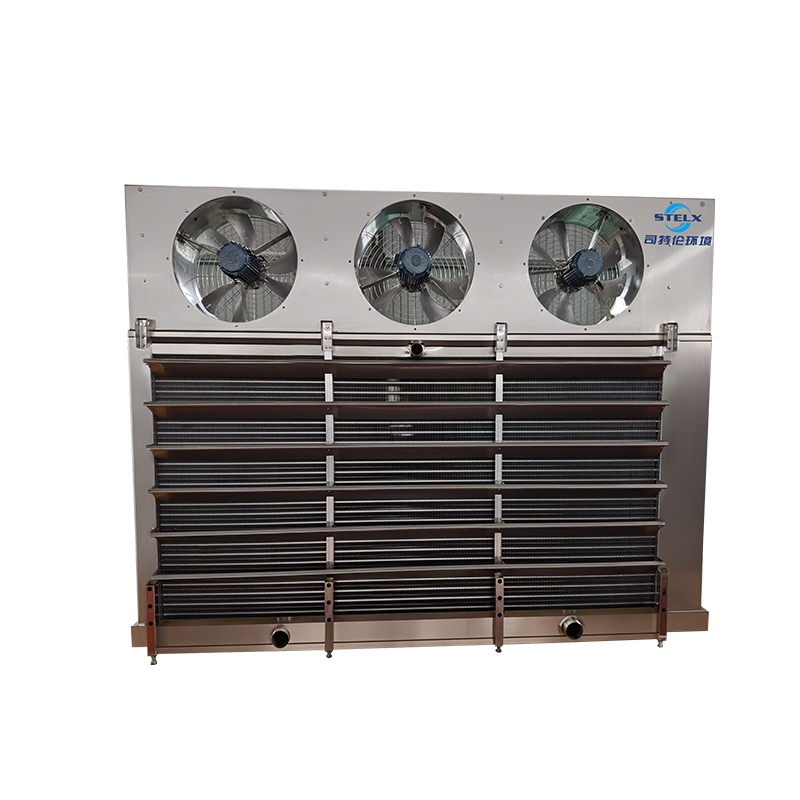

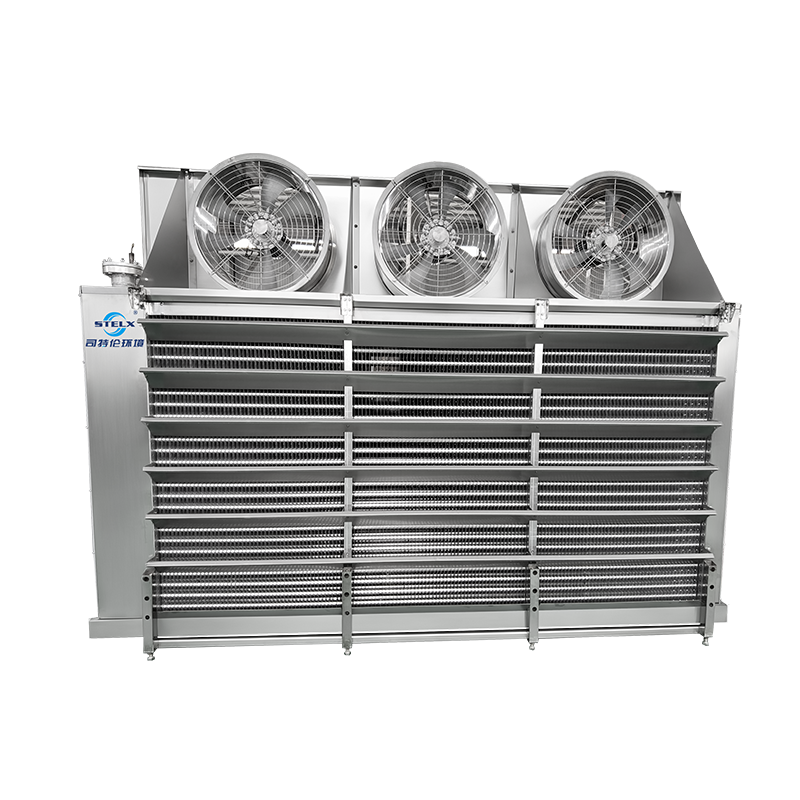

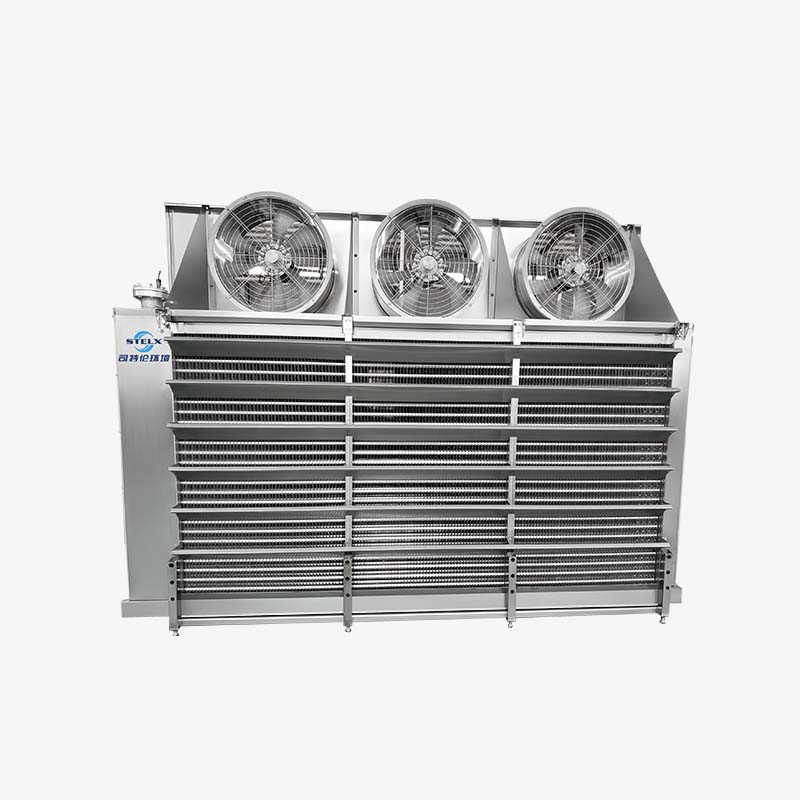

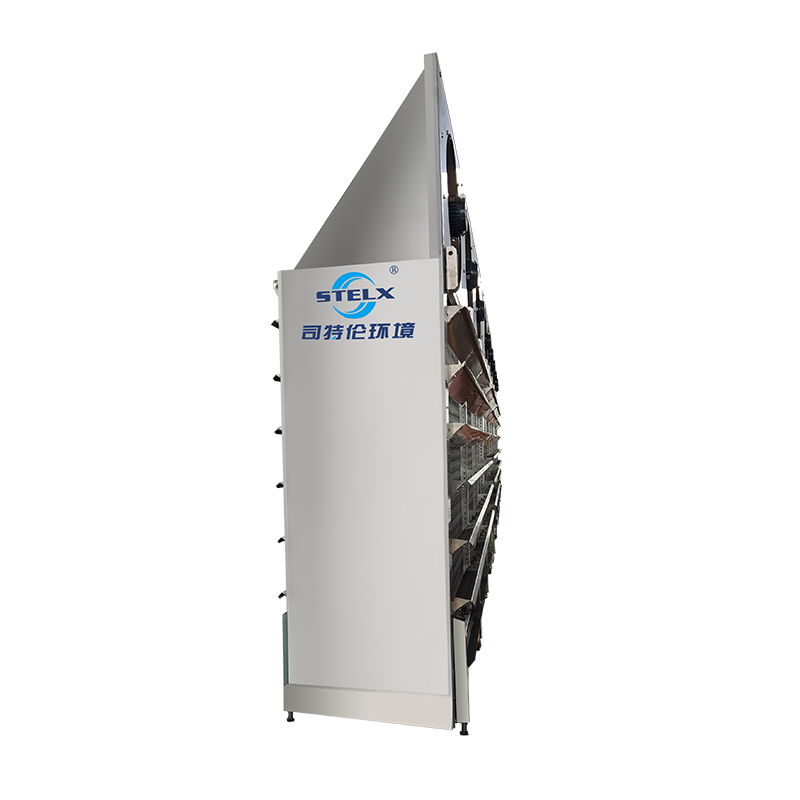

High-Velocity Warehouse Floor Efficient Blast Freezer

Overview

Equipped with options like Stainless Steel evaporator, Aluminum evaporator, and specialized configurations such as evaporator for IQF and evaporator for spiral quick freezer, it meets the rigorous demands of modern food production while adhering to global safety standards.

Details

Refrigeration & Capacity Details

This blast freezer supports a wide range of refrigerants, including HFC, NH₃ (ammonia), CO₂, glycol, water, and brine, ensuring flexibility for different environmental and operational requirements. The evaporator unit boasts a robust capacity range of 15 ~ 250 kW, making it suitable for small to large-scale processing lines. Fin distances are customizable (12mm, 16-8mm, 18-9mm, up to 40-20-10mm) to optimize heat transfer efficiency based on specific applications.

Material & Structural Design

Constructed with food safety and durability in mind, the system offers multiple material options for critical components: Stainless Steel evaporator (304/316 grade) for corrosion resistance, Aluminum evaporator for lightweight efficiency, and additional choices like titanium, copper, and AlMg for specialized needs. Fin thickness ranges from 0.15mm to 0.4mm, balancing heat exchange performance and structural integrity. The in-line geometry and horizontal air intake/exhaust design minimize airflow resistance, while reinforced fan mounting plates reduce vibration during 24/7 continuous operation.

Defrosting & Fan Systems

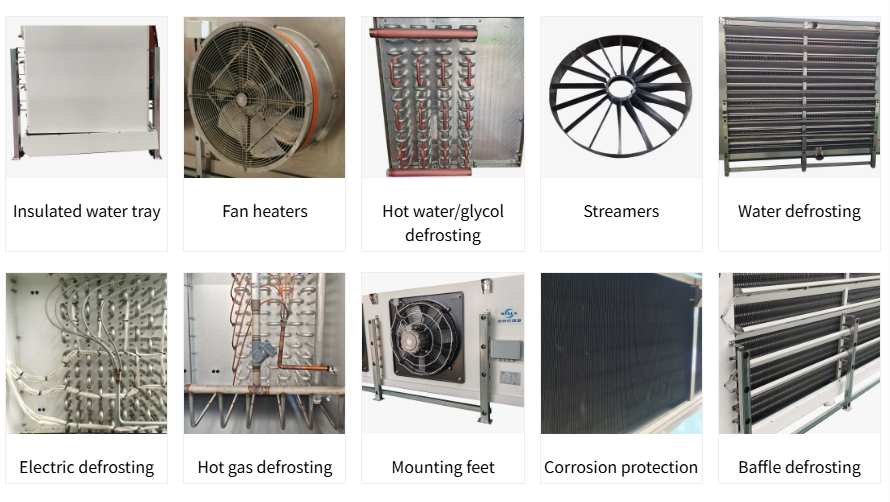

The fast freezer evaporators support diverse defrosting methods—electric, hot gas, air, glycol, brine, and water defrosting—to adapt to different product and facility needs. Equipped with AC or EC fan motors, the system ensures consistent airflow distribution, a key factor in achieving uniform freezing. The integrated insulated water tray prevents ice buildup and ensures efficient defrost water evacuation.

Core Features

Hygienic & Durable Construction

The Stainless Steel evaporator and 304 stainless steel housing resist corrosion from aggressive cleaning protocols, complying with HACCP and BRC standards.

Removable upper/lower sections and dual-side baffles simplify transport, installation, and cleaning while preventing water splash contamination.

Corrosion protection accessories enhance the lifespan of the evaporator unit in harsh processing environments.

Efficient Heat Extraction & Uniform Freezing

Innovative differential-pressure return air system in the blast freezer enables rapid heat extraction, a hallmark of high-quality fast freezer evaporators.

Integrated guide vanes extend the effective cooling range, ensuring consistent temperature distribution across the freezing zone to minimize product dehydration and preserve texture.

Compact width design reduces airflow resistance, boosting the efficiency of the evaporator unit even in space-constrained warehouses.

Adaptive & Maintenance-Friendly Design

Adjustable leveling feet accommodate uneven floors and align precisely with cold storage structures, enhancing installation flexibility.

Quick-release components and accessible service points reduce downtime for cleaning and inspections, optimizing operational productivity.

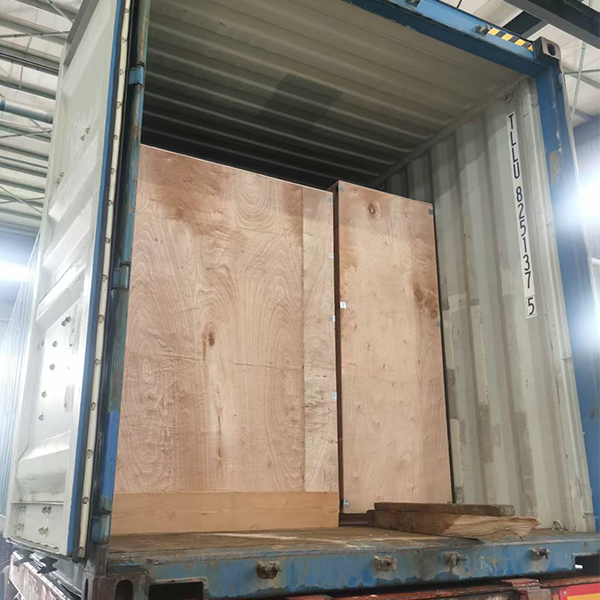

Split wooden box packaging (or optional iron frame) ensures safe transportation and meets global shipping dimension requirements.

Application Scenarios

IQF Processing Lines

As a specialized evaporator for IQF, this system excels in freezing vegetables, berries, and small food items individually. The fast freezer evaporators deliver rapid, uniform cooling that prevents clumping, preserving the shape, texture, and nutritional value of IQF products.

Spiral Quick Freezer Integration

Designed as an evaporator for spiral quick freezer, it seamlessly integrates with spiral freezing systems—ideal for high-volume processing of meat, poultry, and seafood. The evaporator unit’s efficient heat transfer and consistent airflow complement spiral freezers’ continuous operation, reducing freezing time while maintaining product quality.

Protein Processing Facilities

Perfect for beef, poultry portioning, and seafood processing lines, the blast freezer with Stainless Steel evaporator resists moisture and cleaning chemicals, ensuring hygiene in protein processing. Its rapid freezing capability locks in freshness and prevents bacterial growth.

Ready-to-Eat Meal Production

The system’s precise temperature control and minimal dehydration loss make it ideal for ready-to-eat meal production. The Aluminum evaporator and efficient airflow system preserve the taste, texture, and appearance of pre-cooked meals during freezing.

FAQ About GWA/GWF/GWC

What makes this blast freezer suitable for high-throughput facilities?

This blast freezer features high-capacity fast freezer evaporators (15-250kW) and a differential-pressure return air system that enables rapid heat extraction. The continuous 24/7 operation capability and uniform temperature distribution ensure it meets the demands of high-volume food processing lines.

Can I choose between Stainless Steel evaporator and Aluminum evaporator?

Yes! We offer both Stainless Steel evaporator (304/316) for corrosion resistance in harsh environments and Aluminum evaporator for lightweight, cost-effective efficiency. The material selection can be tailored to your specific processing needs.

Is this evaporator unit compatible with IQF and spiral quick freezers?

Absolutely. It is engineered as a dedicated evaporator for IQF and evaporator for spiral quick freezer, with customizable fin distances and airflow designs that integrate seamlessly with these freezing systems, enhancing their performance.

What defrosting methods are available for the fast freezer evaporators?

The system supports multiple defrosting options: electric, hot gas, air, glycol, brine, and water defrosting. You can select the method that best fits your product requirements and operational workflow.

Does the evaporator unit comply with food safety standards?

Yes. The evaporator unit and blast freezer are designed to meet global food safety standards (HACCP, BRC). The 304 stainless steel construction, removable components, and hygienic design facilitate easy cleaning and prevent contamination.
