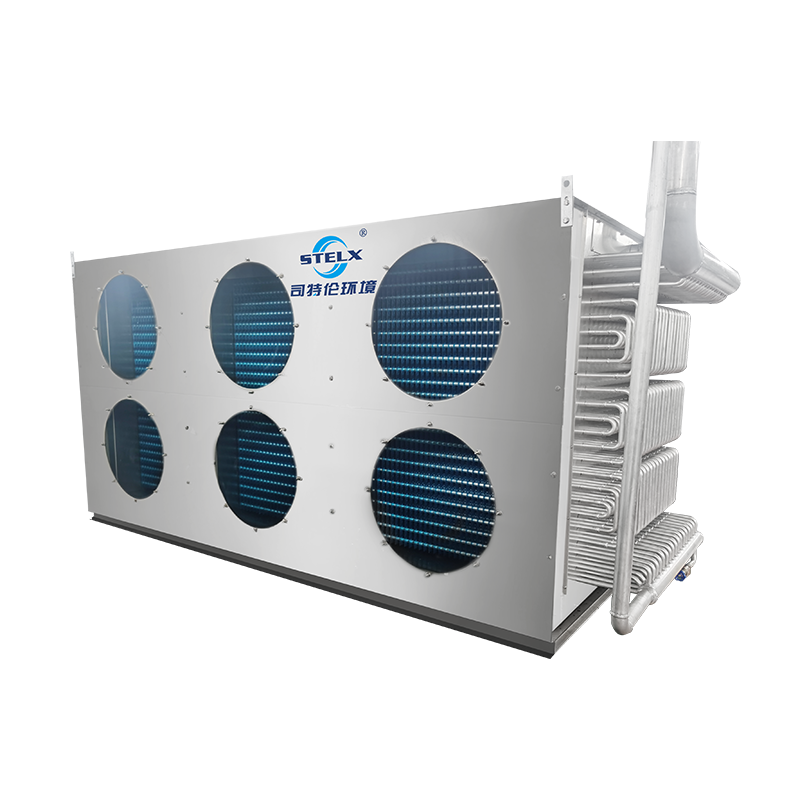

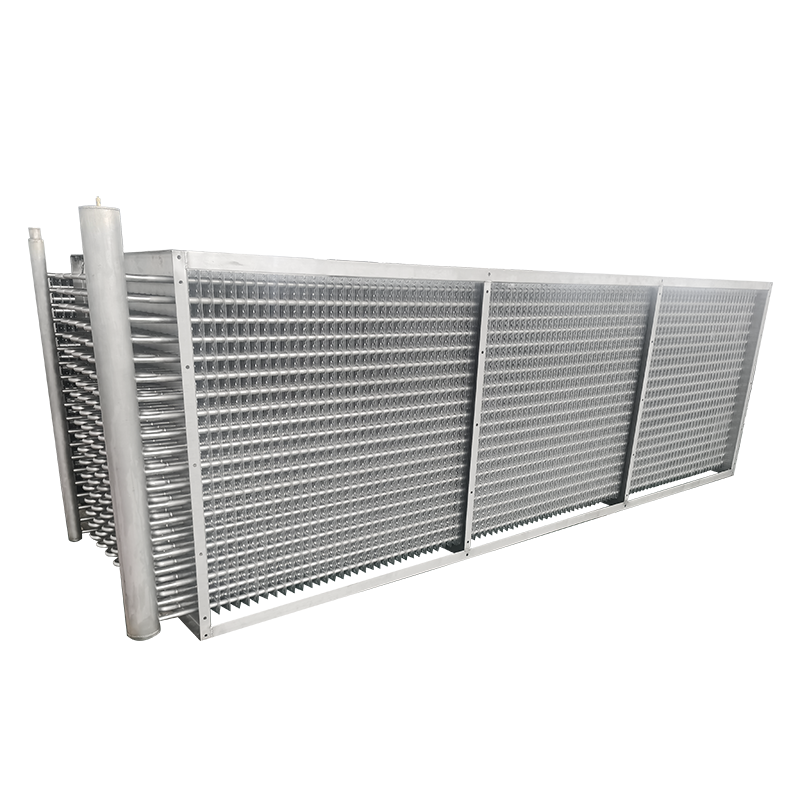

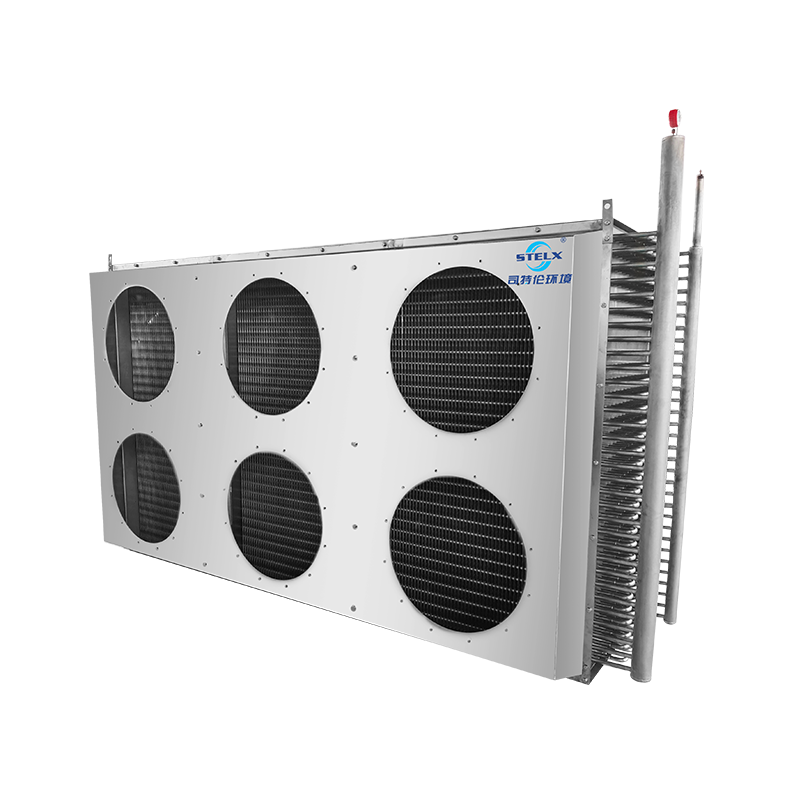

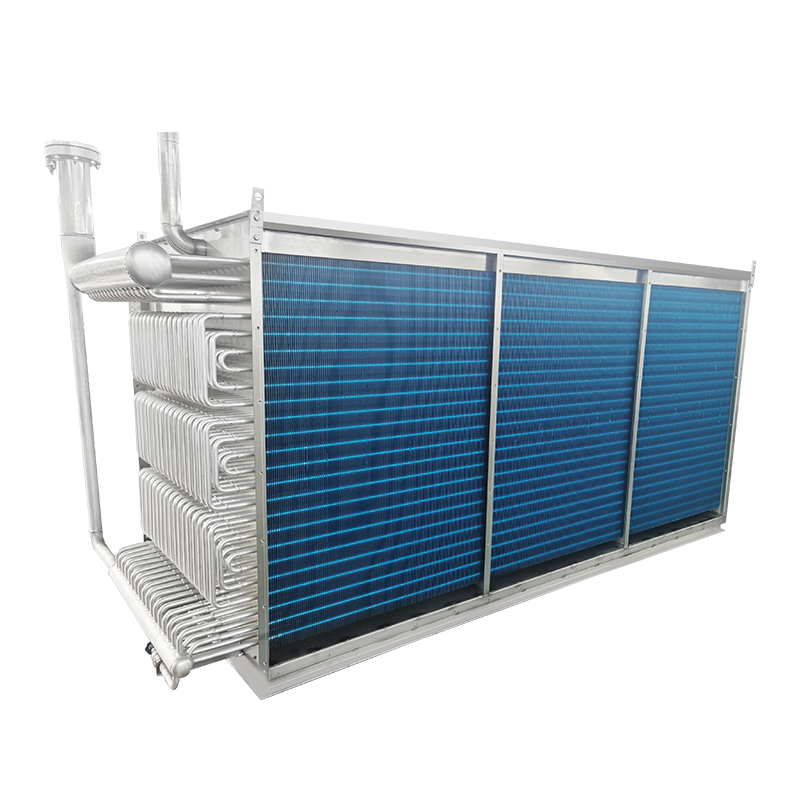

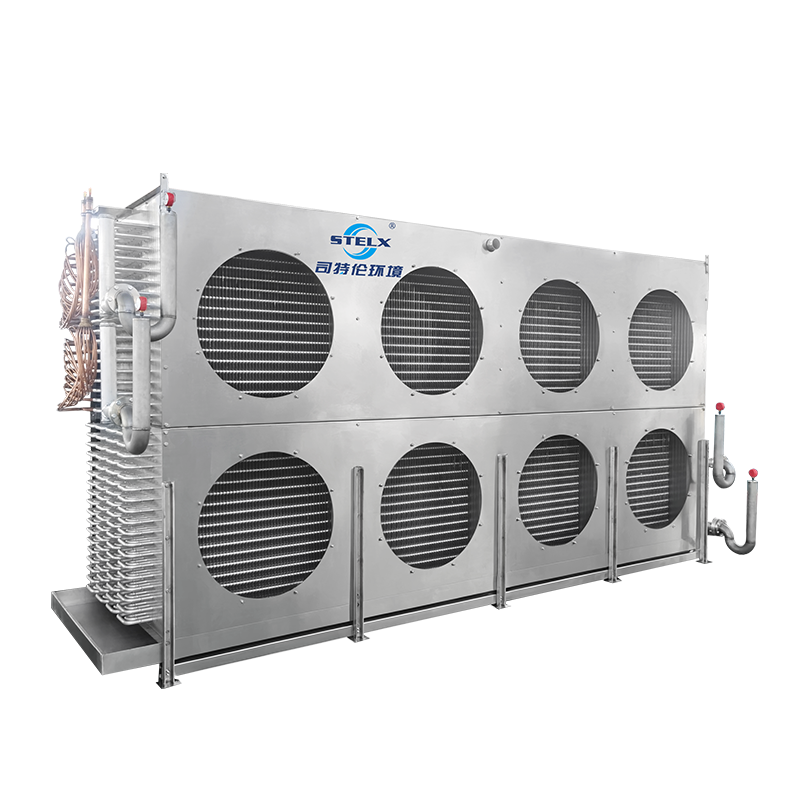

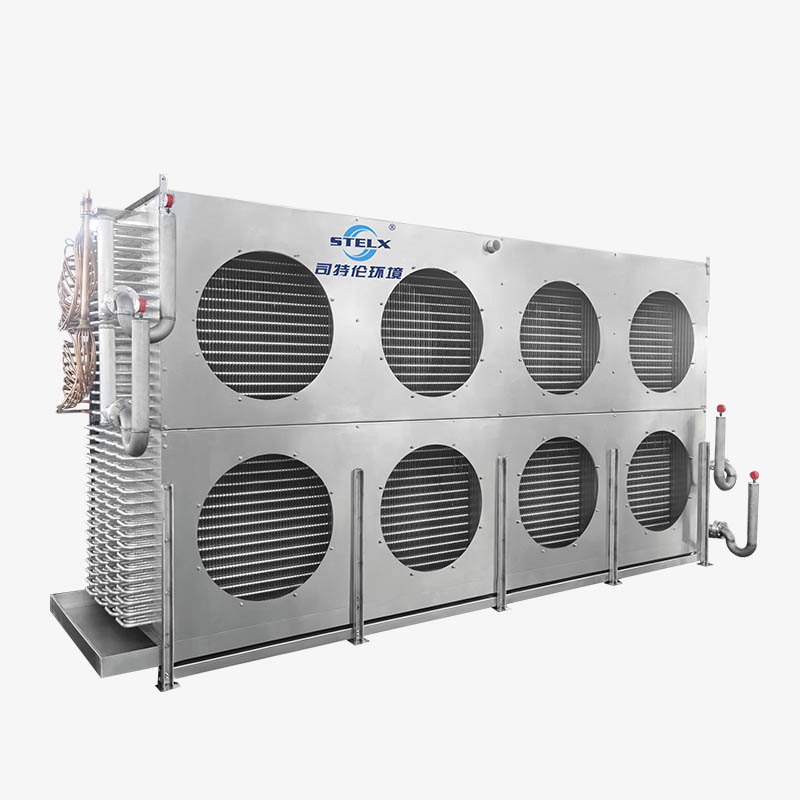

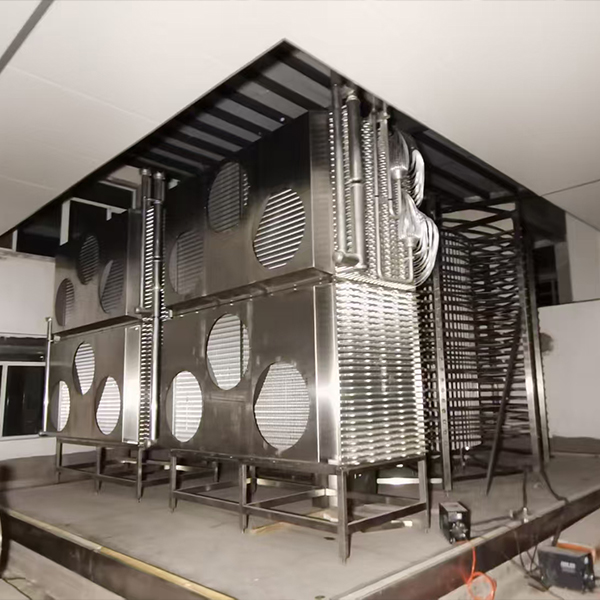

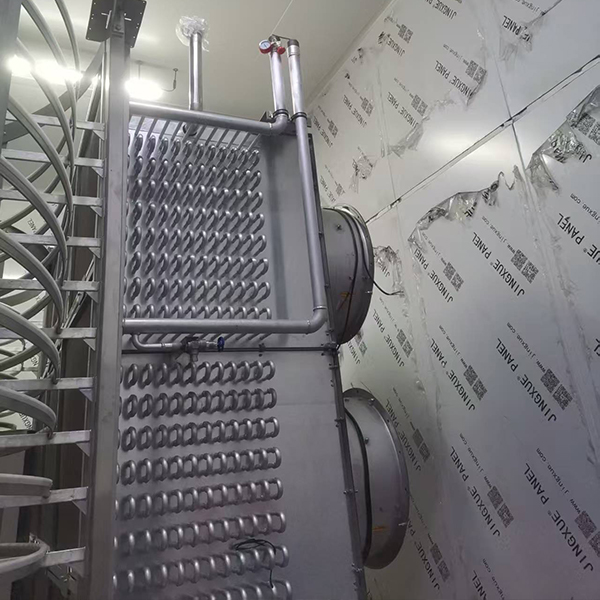

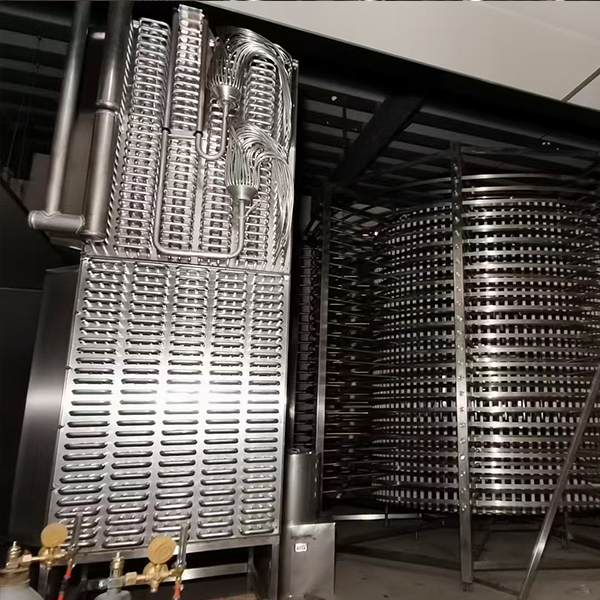

The LX series is a precision-engineered evaporator unit and a core component of industrial spiral quick freezers, emerging as a reliable fast freezer evaporators solution for large-scale food freezing. Specifically designed as an evaporator for spiral quick freezer, it excels in ultra-low temperature environments (down to -40℃) and is fully compatible with ammonia (NH₃) refrigerants—offering high cooling capacity in a space-saving footprint. With CFD-validated airflow management and food-grade materials like Stainless Steel evaporator and Aluminum evaporator components, it prevents product displacement and minimizes weight loss, making it ideal for IQF lines, seafood spiral freezing, and bakery product processing.
The LX series boasts a cooling capacity range of 10–350 kW, catering to high-volume industrial needs. Its material options prioritize durability and efficiency: Stainless Steel evaporator tubes (304/316 grades) for ammonia compatibility and corrosion resistance, paired with Aluminum evaporator fins (0.2–0.4mm thickness) or epoxy-coated fins for enhanced heat transfer and hygiene. Fin spacing is customizable (16-8 mm to 40-20-10 mm) to match specific product freezing requirements.

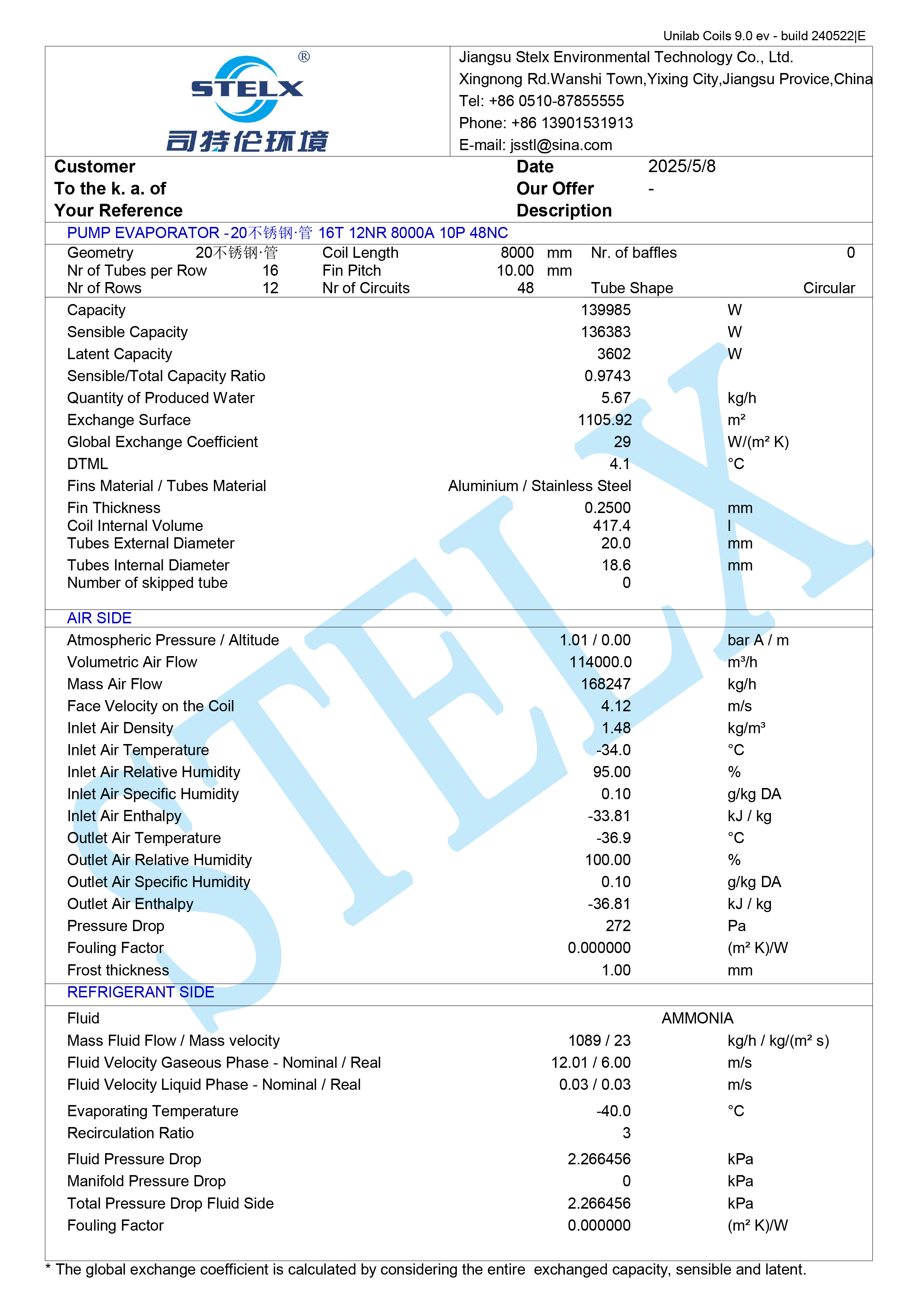

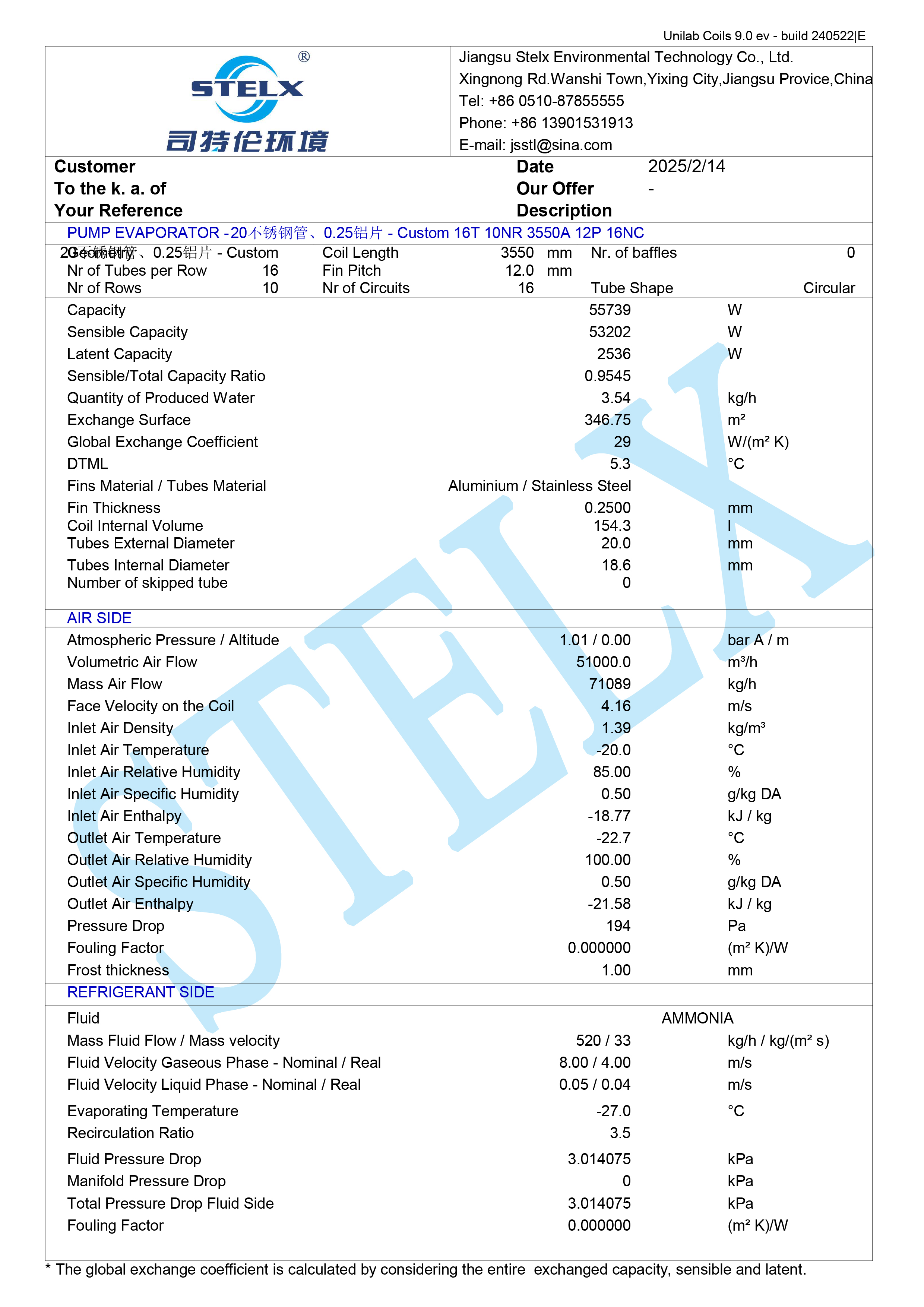

Airflow is optimized via CFD (Computational Fluid Dynamics) validation, ensuring balanced face velocities (4.12–4.16 m/s) that maximize heat transfer without displacing delicate products. The unit supports horizontal air direction and multiple defrosting methods (electric, hot gas, glycol, water, brine, ADF). Equipped with vibration-dampened axial fans, it operates with minimal noise while maintaining stable performance. The evaporating temperature reaches -40℃, making it compatible with blast freezer systems for deep-freezing applications.
| APPLICATIONS | Refrigeration | |||||
| REFRIGERANTS | HFC | NH3 | CO2 | |||
| CAPACITY RANGE | 10 ~ 350 kW | |||||
| FIN DISTANCE | 16-8 , 18-9 , 20-10 , 24-12-6 , 28-14-7 , 32-16-8 ,40-20-10 mm, or as requirements | |||||
| GEOMETRY | In-line | |||||
| AIR DIRECTION | Horizontal | |||||
| MATERIAL | Titanium | Aluminum | AlMg | Stain steel 304 | Stain steel 316 | Copper |
| TUBES | √ | √ | √ | √ | √ | |
| FINS | √ | √ | ||||
| FIN THICKNESS | 0.2~0.4mm | 0.2~0.4mm | ||||
| CASING | √ | √ | √ | |||
| DEFROSTING | Electric | Hot gas | Glycol | Brine | Water | ADF |
| COILS | √ | √ | √ | √ | √ | √ |
| FANS MOTORS | Axial fans | |||||
| DIMENSIONS | 500 , 600 , 700 , 800 , 900 | |||||
| NUMBERS | 1 ~ 12 | |||||
Ammonia Compatibility & Eco-Friendliness: As an ammonia-compatible Stainless Steel evaporator system, it reduces environmental impact compared to HFC-based units, while delivering higher thermal efficiency for industrial-scale freezing.
CFD-Optimized Airflow: The evaporator for spiral quick freezer uses CFD-validated airflow to maintain balanced face velocities, preventing product displacement—critical for fragile items like berries and baked goods.
Low-Maintenance Hygienic Design: Smooth Stainless Steel evaporator surfaces and quick-access components simplify cleaning and inspection, complying with food safety standards (e.g., FDA, EU 10/2011).
Space-Saving & Retrofit-Friendly: Its compact geometry fits tight industrial layouts, and it offers drop-in retrofit compatibility with existing spiral freezer systems, reducing upgrade costs.
