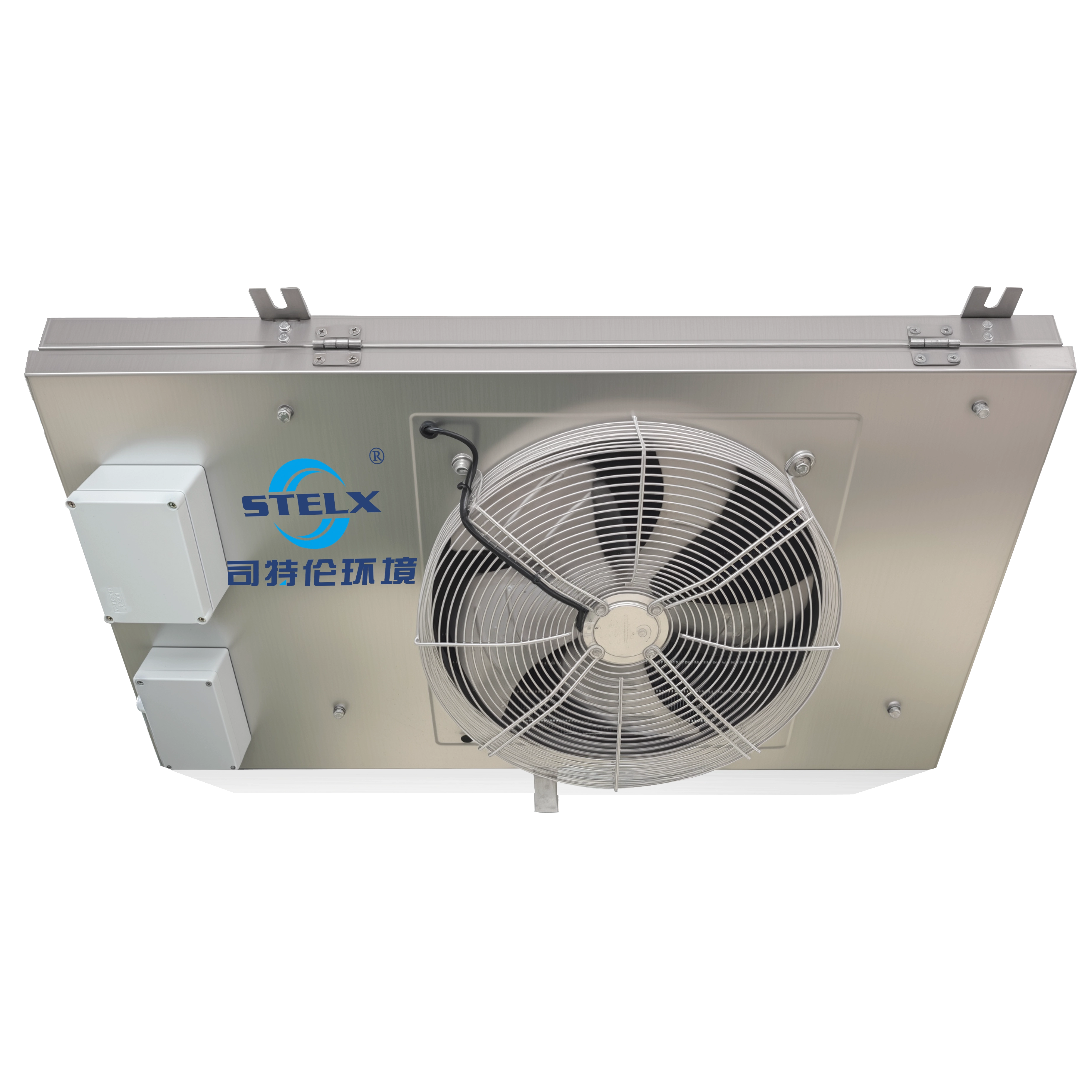

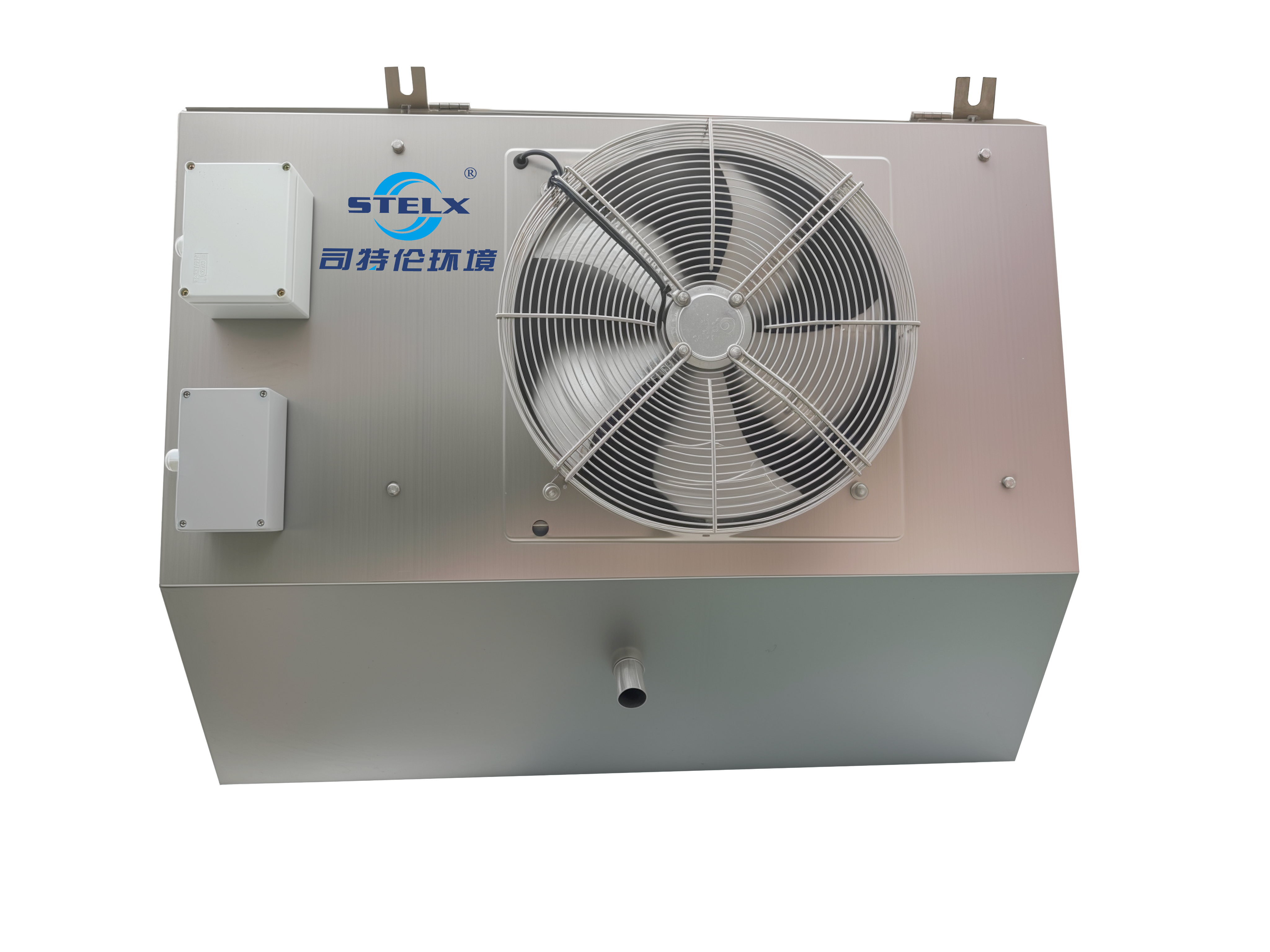

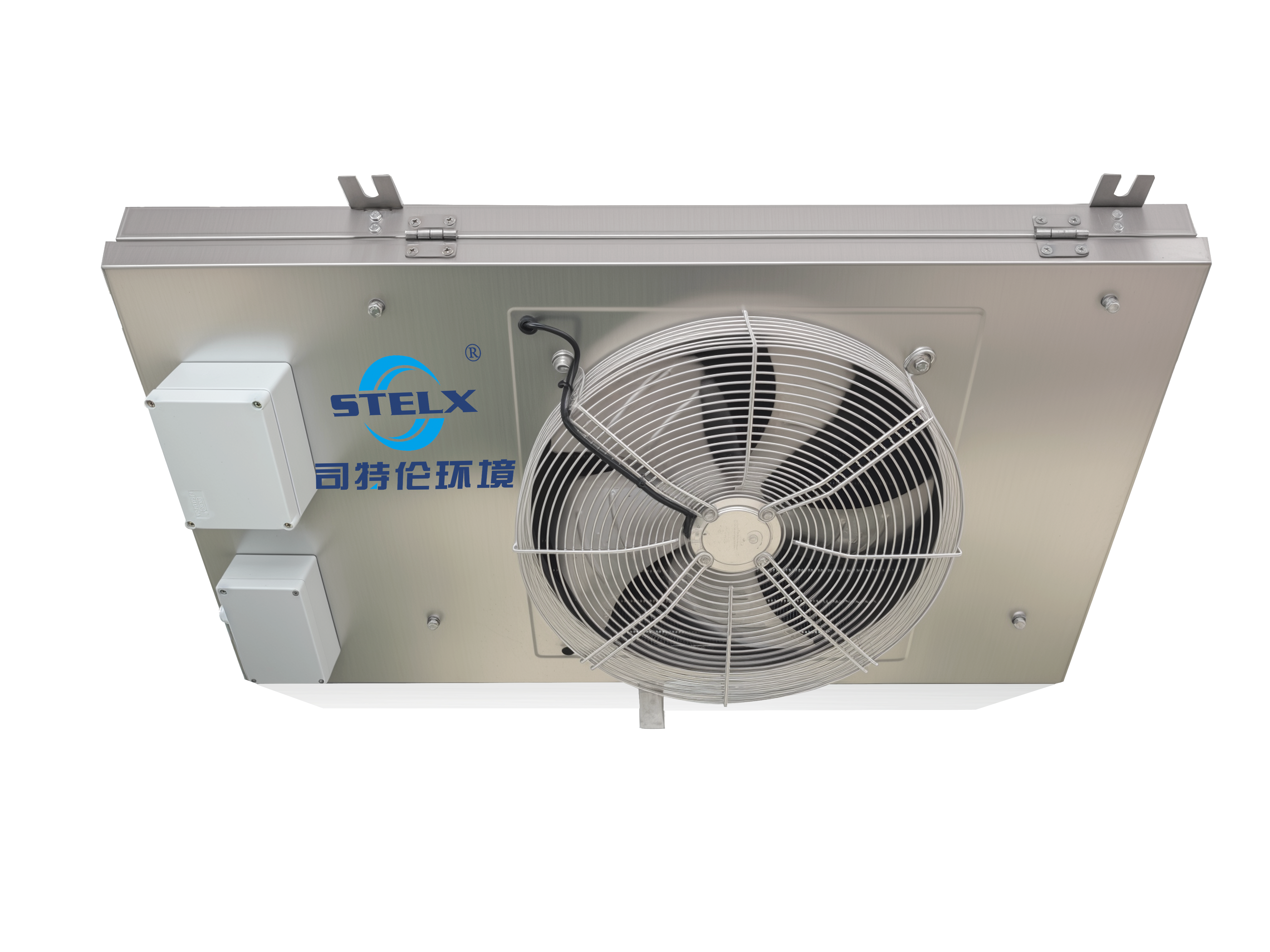

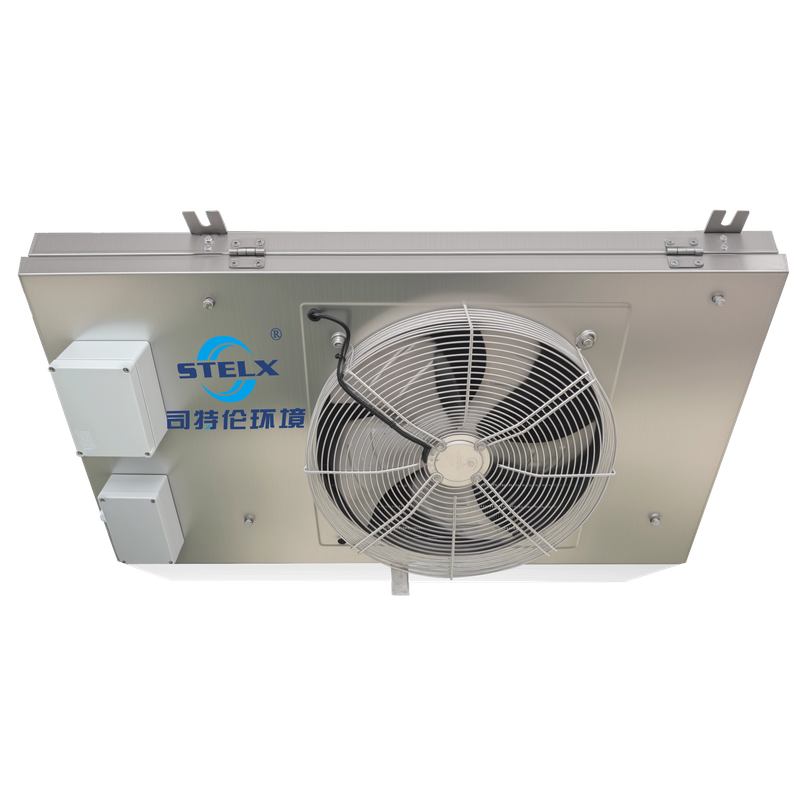

Compact Angled Small Cold Room Brine Cooler

In environments where every square foot counts—such as hotel pantries, convenience store walk-ins, or boutique grocery backrooms—conventional refrigeration units often impose a bulky footprint. The TFF Compact Air Cooler redefines this dynamic. Its innovative low-profile, trapezoidal design is engineered from the ground up for spatial intelligence, allowing it to integrate seamlessly into tight ceilings without compromising valuable storage volume. This isn't merely a smaller cooler; it's a purpose-built solution where space optimization is paramount.

Model:
TFF

Availability:

Quantity:



Inquire Add to Basket

Angled air cooler RGA commercial unit cooler unit air cooler EC fan cubic air cooler air coolers for small cold rooms flat brine air coolers air conditioning unit cooler glycol unit cooler industrial unit cooler

TFF

Overview

Compact Angled Small Cold Room Brine Cooler

The TFF model is a game-changing compact air cooler designed exclusively for small cold rooms (10–50 m³), where every cubic meter of storage space counts. As a versatile unit cooler, it redefines efficiency in space-constrained environments, merging ultra-slim trapezoidal design with industrial-grade performance. This cubic air cooler stands out as a top choice among industrial air coolers for businesses prioritizing spatial optimization—from hotel pantries to boutique grocery backrooms. Crafted with flexibility in mind, it offers material options like the corrosion-resistant titanium air cooler, durable cubic air cooler with AlMg fins, and food-safe Stainless Steel air cooler (grade 304/316). As an ECO cubic air cooler, it balances power with energy efficiency, while compatibility with Dual discharge air coolers expands its adaptability. For small-scale refrigeration needs, this unit cooler delivers big on reliability and customization.

Technical Specifications

Details

This compact air cooler operates within a cooling capacity range of 2–10 kW, tailored to the thermal demands of small cold rooms. Its in-line geometry and horizontal one-sided air direction ensure uniform airflow without wasting space. Material versatility is a key strength: choose the titanium air cooler for extreme corrosion resistance, cubic air cooler with AlMg fins for lightweight durability, or Stainless Steel air cooler for hygienic food-adjacent applications. Fin distance is customizable (4.0–6.0 mm) to match specific operational needs, with fin thickness ranging from 0.15 mm to 0.4 mm for optimized heat transfer. Equipped with low-noise AC or EC fan motors, this ECO cubic air cooler minimizes energy consumption while maintaining consistent performance. It supports multiple refrigerants (HFC, NH₃, CO₂, Glycol, Water, Brine) and liquid feed methods, making it a flexible unit cooler for diverse systems. The reinforced chassis and double-insulated water tray (optional) enhance stability and prevent condensation in high-humidity environments.

APPLICATIONS	Refrigeration			Air conditioning
REFRIGERANTS	HFC	NH₃	CO₂	Glycol	Water	Brine
CAPACITY RANGE	2 ~ 10 kW
FIN DISTANCE	4.0~6.0 mm , or as requirements
GEOMETRY	In-line
AIR DIRECTION	Horizontal one-sided
MATERIAL	Titanium	Aluminum	AlMg	Stain steel 304/316	Copper	Epoxy	Powder coated	Al-Zn coated
TUBES	√	√		√	√	√
FINS	√	√	√	√	√	√
FIN THICKNESS	0.15mm	0.2~0.4mm	0.2~0.4mm	0.15~0.17mm	0.15~0.2mm	0.2~0.4mm
CASING	√			√			√	√
WATER TRAY	√			√			√	√
DEFROSTING	Electric	Hot gas	Air	Glycol	Brine	Water
COILS	√		√
FANS	√		√
WATER TRAY	√		√
FANS MOTORS	AC or EC fan motors
DIMENSIONS	300 , 350 , 400 , 450
NUMBERS	1 ~ 6

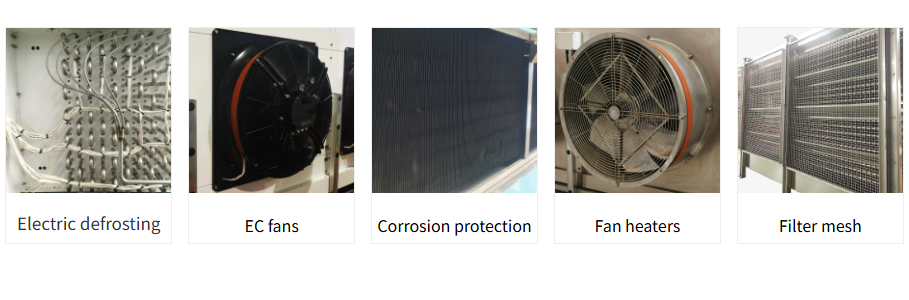

Find suitable accessories for KF/KB compact air coolers

Advantages

Core Features

Ultra-Slim Spatial Intelligence

Engineered as a compact air cooler, its trapezoidal low-profile design fits flush into tight ceilings, maximizing usable storage volume. Unlike bulky traditional industrial air coolers, it integrates seamlessly without compromising cooling power—ideal for small spaces where every inch matters.

Superior Heat Exchange Efficiency

The cubic air cooler features high-density tube arrays and corrugated fins, creating a robust heat exchange surface. Whether configured as a titanium air cooler or cubic air cooler with AlMg fins, it ensures rapid cooldown and stable temperatures, even in frequent-access cold rooms.

Hygienic & Durable Construction

As a Stainless Steel air cooler, it boasts a non-porous, easy-to-clean surface that meets strict food safety standards. The advanced defrost system (electric, hot gas, or water options) minimizes moisture buildup, extending equipment life and protecting product quality—critical for food storage applications.

User-Centered Maintenance

The flip-down drain pan and fan assembly enable tool-free cleaning and inspection, solving a common pain point for industrial air coolers. Low-noise fans also enhance operational comfort, making it suitable for noise-sensitive environments like hotel kitchens.

Customizable ECO Performance

This ECO cubic air cooler adapts to unique needs: choose from multiple materials, refrigerants, and dimensions (300–450 mm). Compatibility with Dual discharge air coolers further optimizes airflow for irregularly shaped small cold rooms.

Applications

Application Scenarios

Hotel Pantries & Commercial Kitchens

Small hotel pantries and commercial kitchens benefit from the compact air cooler’s space-saving design. As a Stainless Steel air cooler, it adheres to hygiene regulations, keeping fresh ingredients and prepared meals at safe temperatures without occupying valuable workspace.

Convenience Store Walk-Ins

Convenience store walk-ins (10–30 m³) rely on this unit cooler for efficient, uniform cooling. Its horizontal airflow ensures perishables like dairy and snacks stay fresh, while the ECO cubic air cooler design reduces energy costs for 24/7 operations.

Boutique Grocery Backrooms

Boutique grocers with limited backroom space use this cubic air cooler with AlMg fins to store specialty produce and frozen goods. The customizable fin distance and refrigerant compatibility make it a tailored solution for niche retail needs.

FAQ

FAQ About Compact Angled Flat Brine Air Cooler

What size cold rooms is this compact air cooler suitable for?

It is engineered for small cold rooms with volumes of 10–50 m³—ideal for spaces where traditional industrial air coolers are too bulky.

Is the Stainless Steel air cooler option food-safe?

Yes! The grade 304/316 Stainless Steel air cooler features a non-porous surface that resists moisture and cleaning agents, meeting global food hygiene standards.
