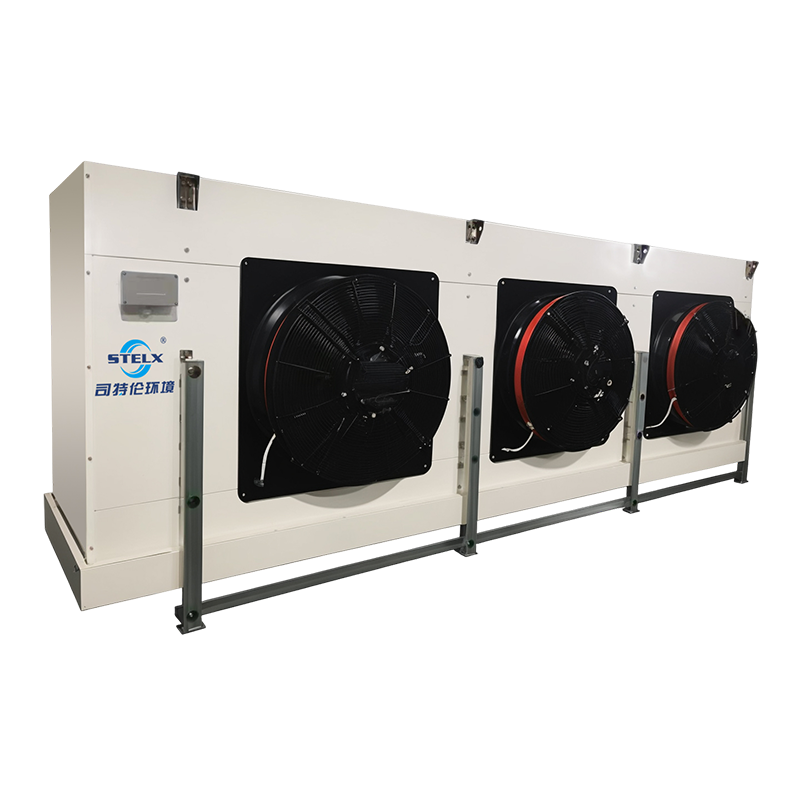

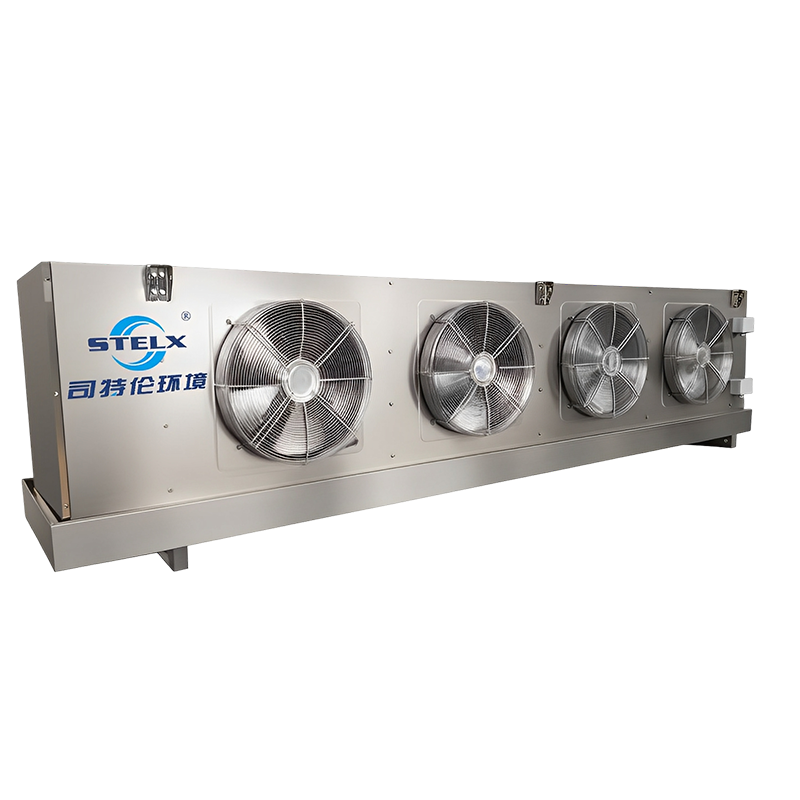

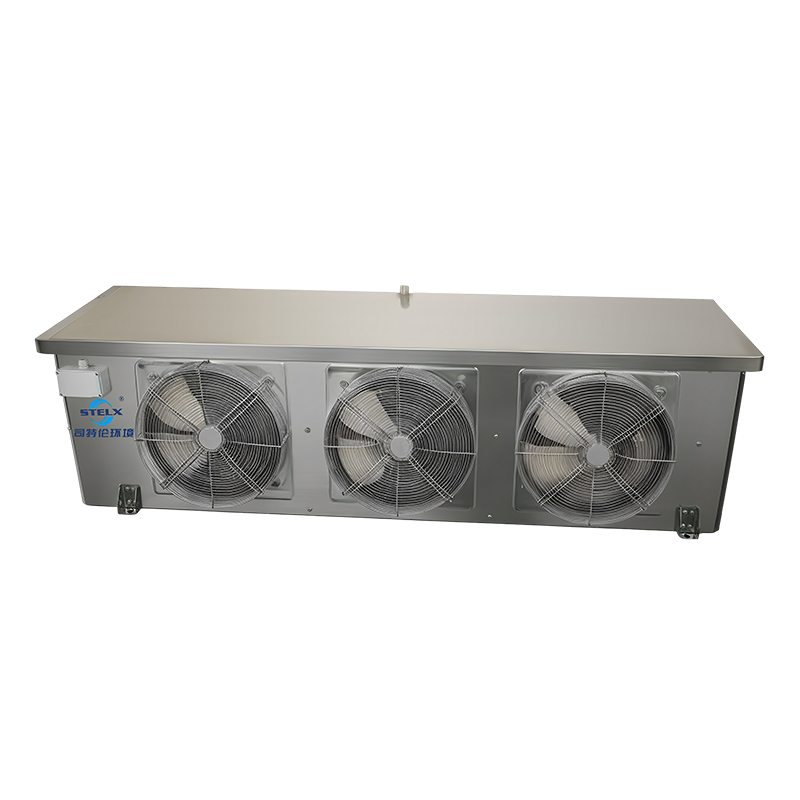

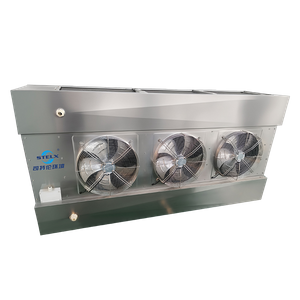

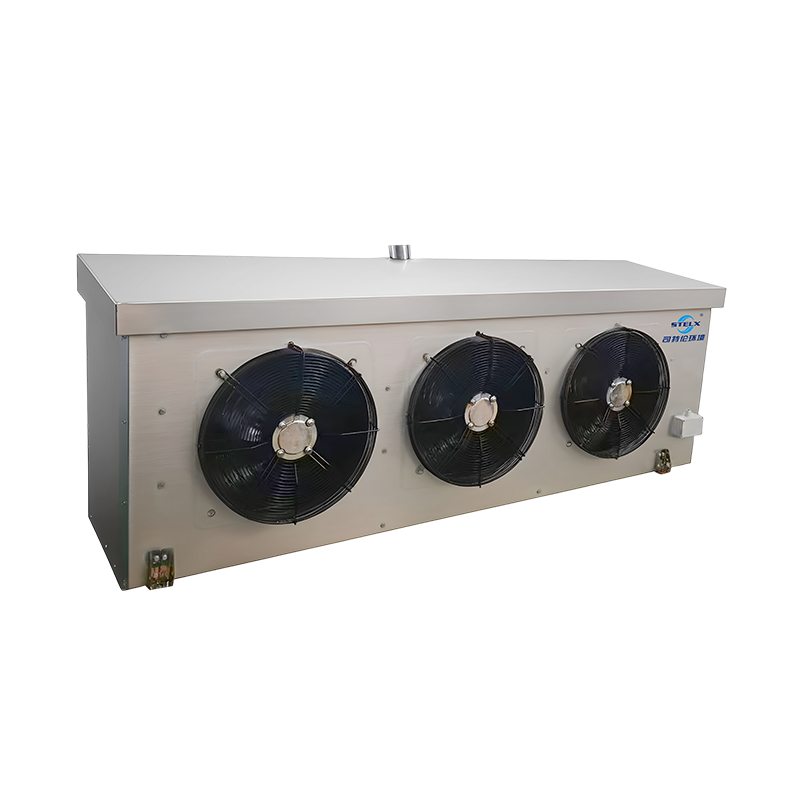

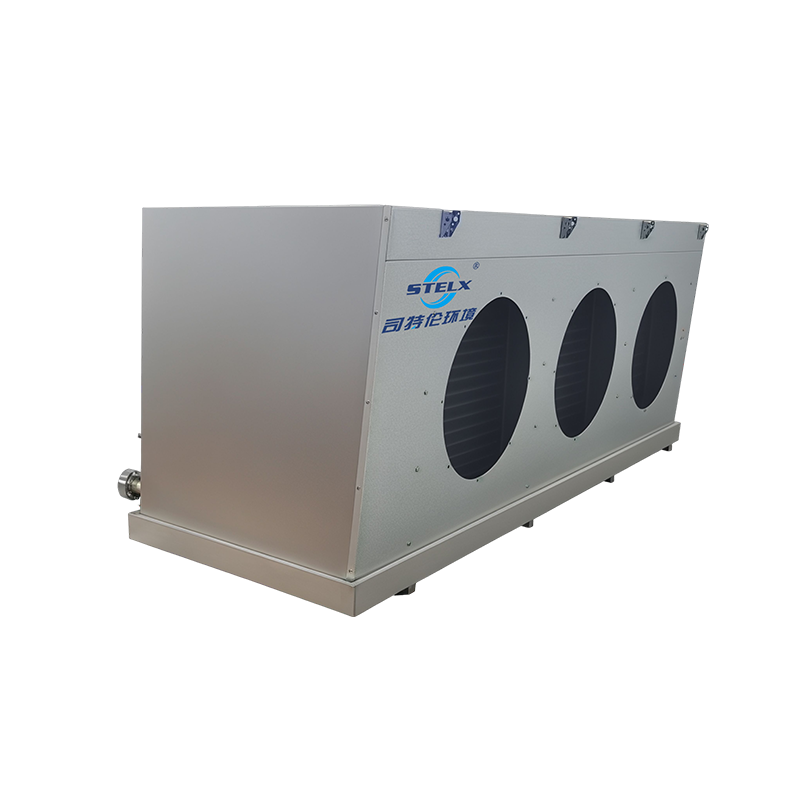

Energy-Efficient Cubic Air Cooler For High Temperature Cold Room

Overview

The Energy-Efficient Cubic Air Cooler (Model: LA/LF/LC) is a modular cooling solution designed by STELX for high-temperature cold rooms (-15°C to 0°C) in food processing, pharmaceutical logistics, and distribution centers. Built with German-engineered aerodynamics and EC fan technology, this cubic air cooler delivers exceptional energy efficiency, precise temperature uniformity (±0.3°C), and zero-drip performance—all while adhering to strict hygiene standards. With a cooling capacity of 5 ~ 130 kW and compatibility with multiple refrigerants, it balances compact design with industrial-strength reliability, making it a trusted choice for multinational cold storage operators.

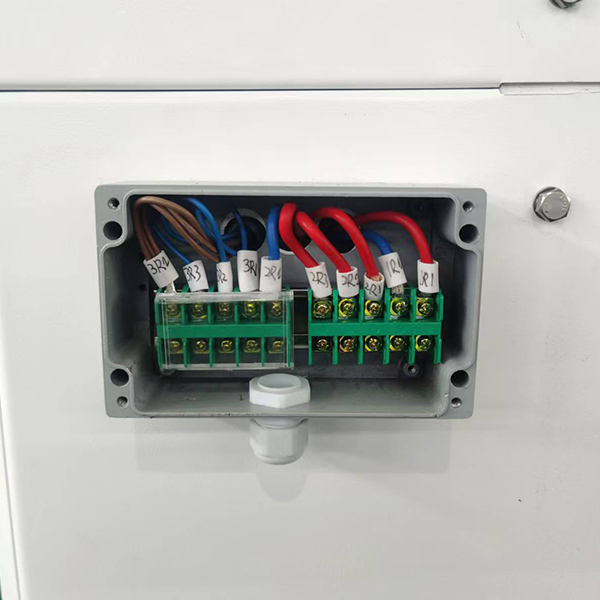

Terminal box

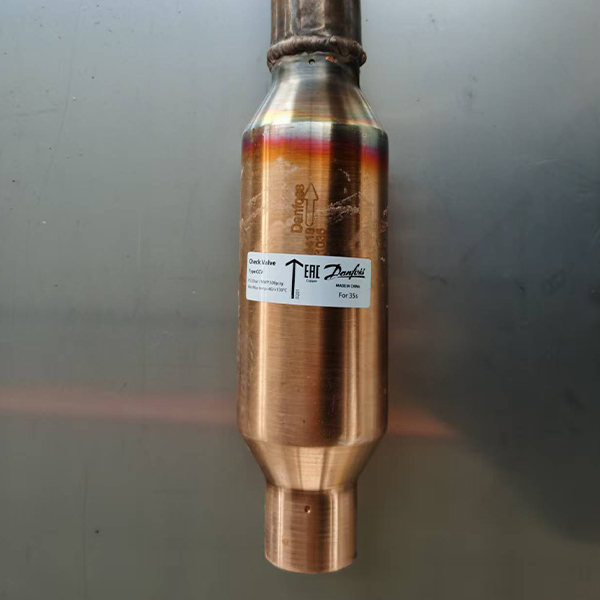

NRV

Tilted insulation water tray

Details

EC Fan Technology for Maximum Energy Savings

At the heart of this cooler is the EC (Electronically Commutated) fan motor, which intelligently adjusts airflow parameters in real-time based on thermal load variations. Unlike traditional AC motors, EC motors slash power consumption by up to 40% during partial loads, delivering significant energy savings without compromising performance. The dynamic speed-pressure modulation ensures consistent cooling even during door openings or product rotation, maintaining temperature uniformity critical for perishable goods.

Durable & Hygienic Construction

Constructed with 304/316 stainless steel or triple-layer powder-coated galvanized steel, the cubic housing resists corrosion and withstands frequent sanitation protocols—ideal for hygiene-sensitive environments like food and pharmaceutical facilities. The revolutionary 45° angled double-insulated water tray ensures rapid condensate evacuation, eliminating external surface sweating and dripping contamination. All materials (including titanium, aluminum, and copper) meet industry standards for durability and safety, supporting long-term 24/7 operation.

Modular Design for Easy Installation & Maintenance

The lightweight modular framework reduces installation time by 30% compared to traditional coolers, with integrated structural brackets enabling both ceiling-suspended and floor-mounted installations. Maintenance is simplified with slide-out coil trays and front-service components, allowing tool-free access to coils and fan arrays for effortless cleaning. Optional accessories like electrically heated baffle kits and fan anti-condensation heaters enhance operational resilience in high-moisture or low-humidity environments.

Find suitable accessories for Oblique Draft blast freezer

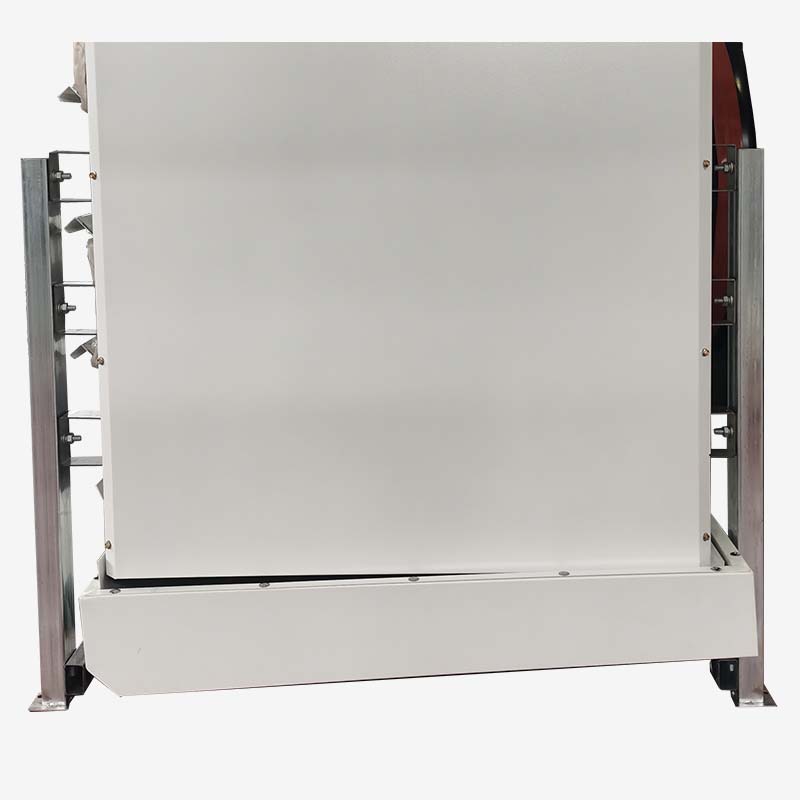

Insulated water tray

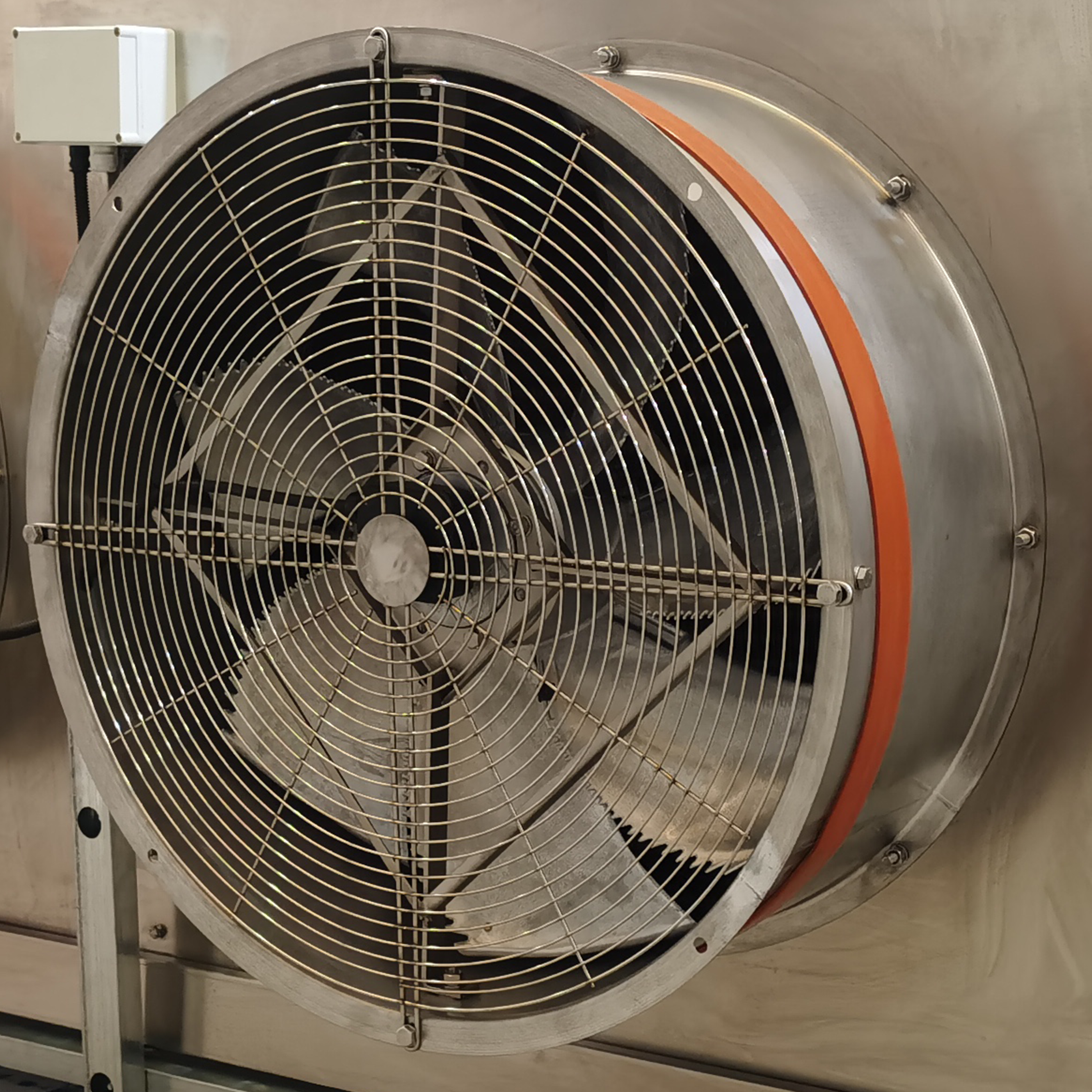

Fan heaters

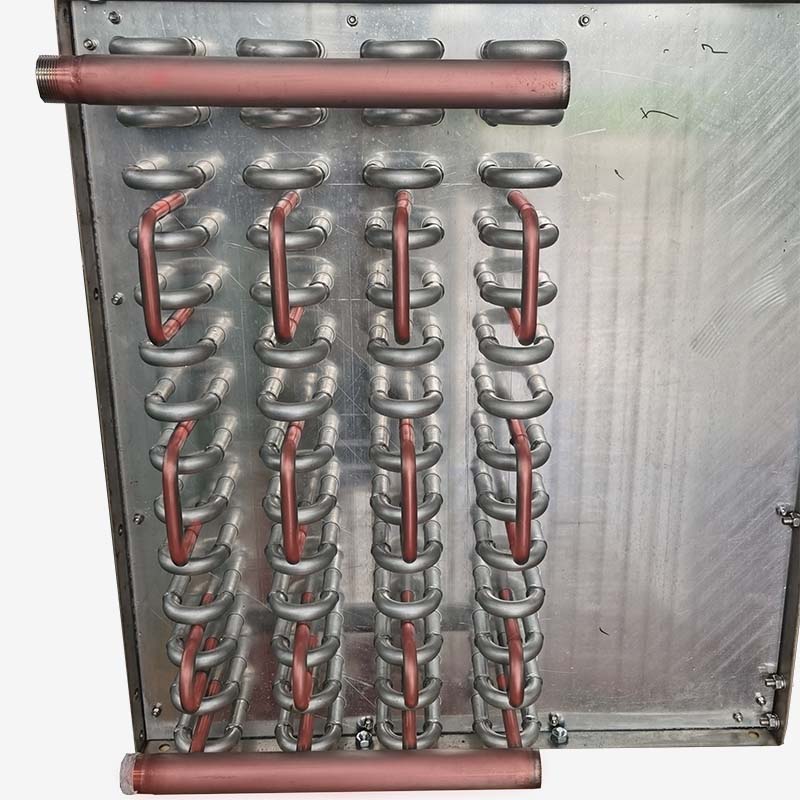

Hot water/glycol defrosting

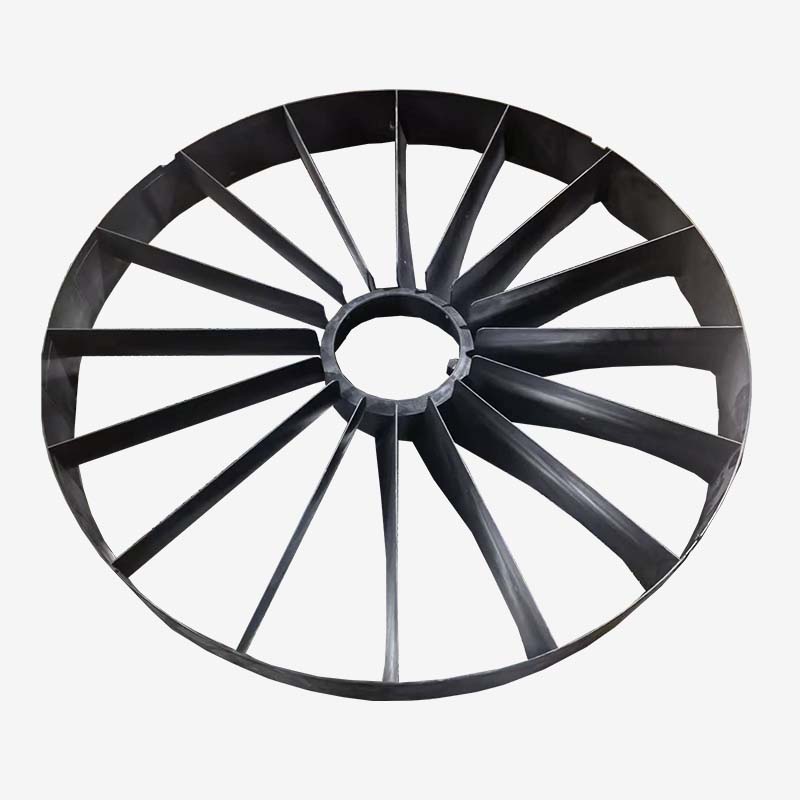

Streamers

Water defrosting

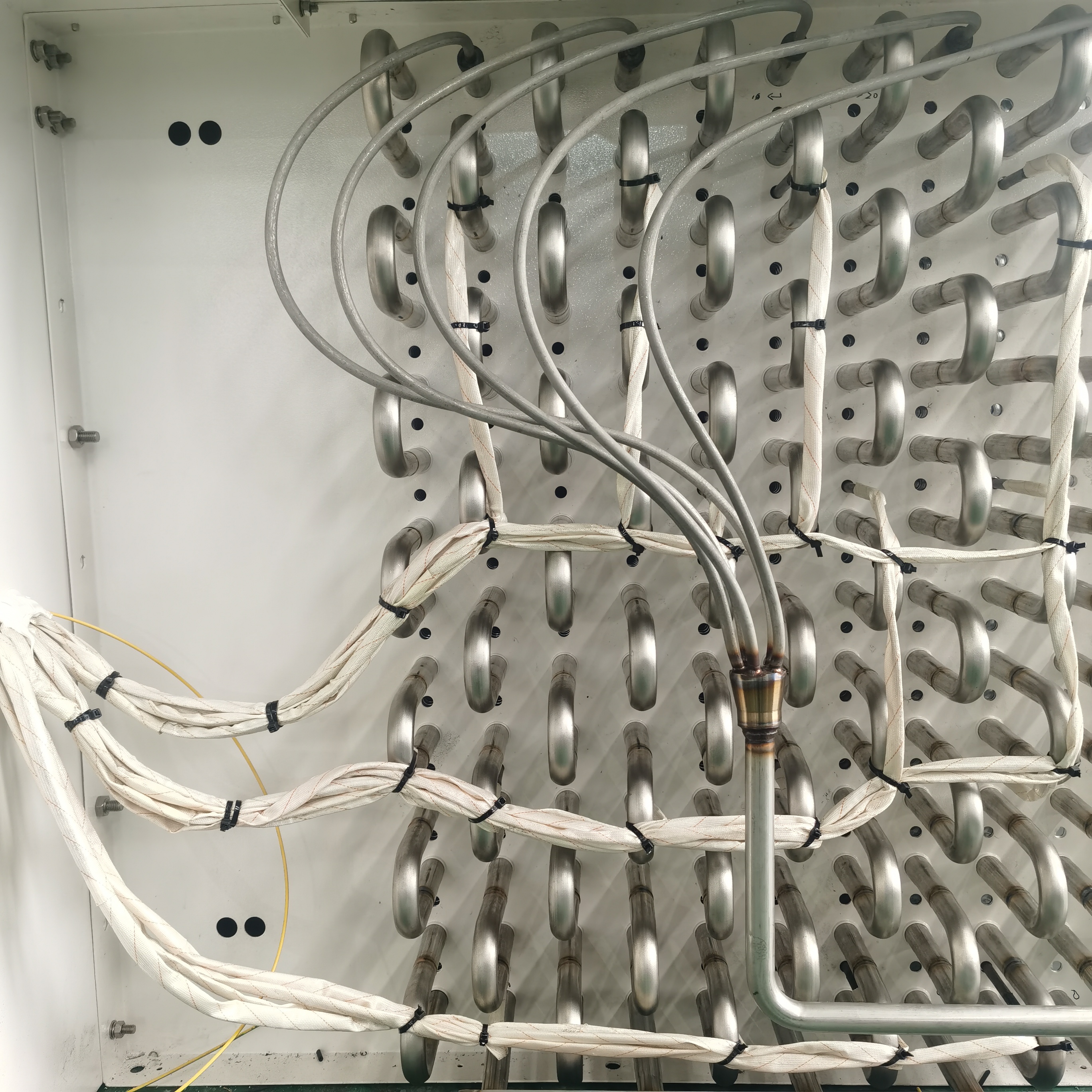

Electric defrosting

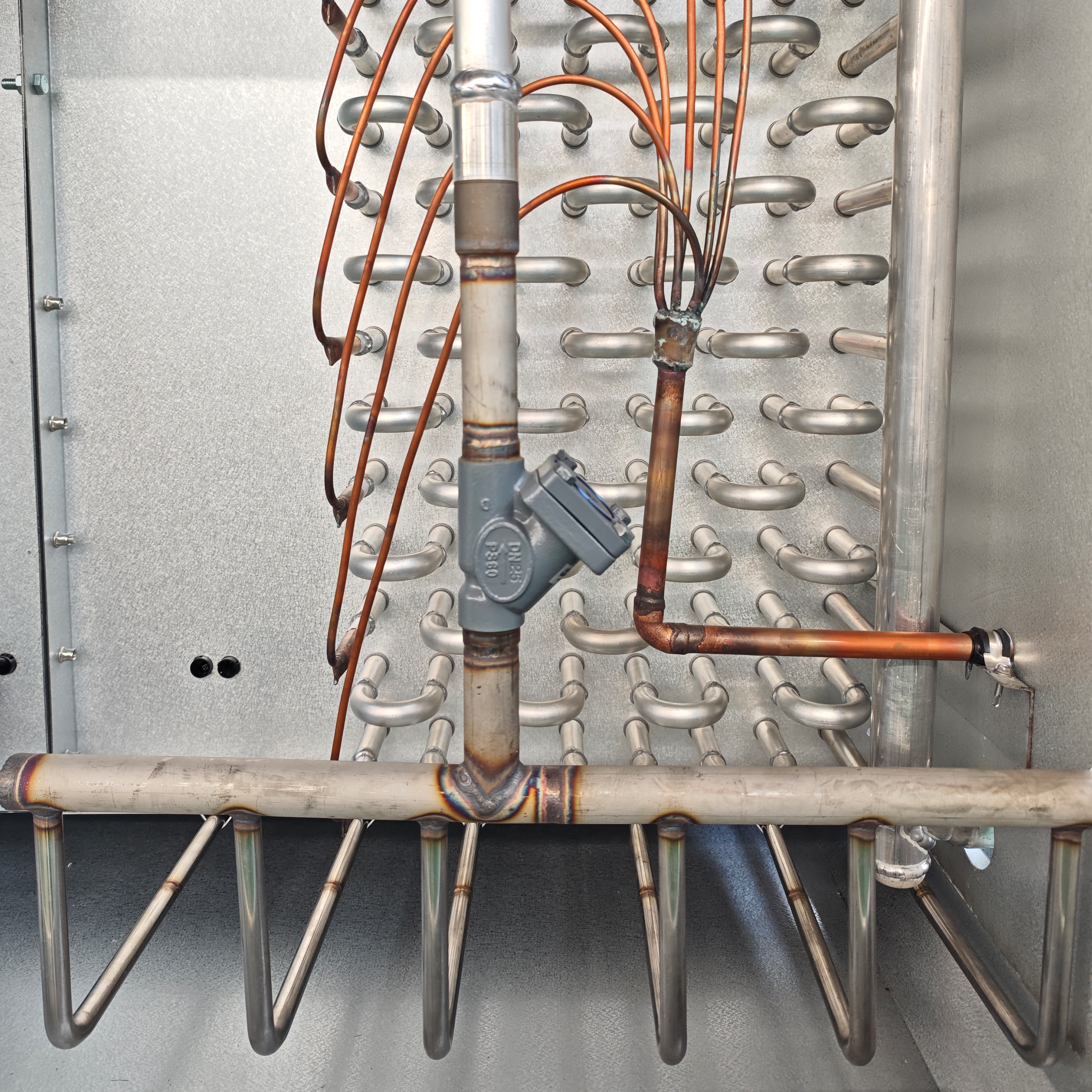

Hot gas defrosting

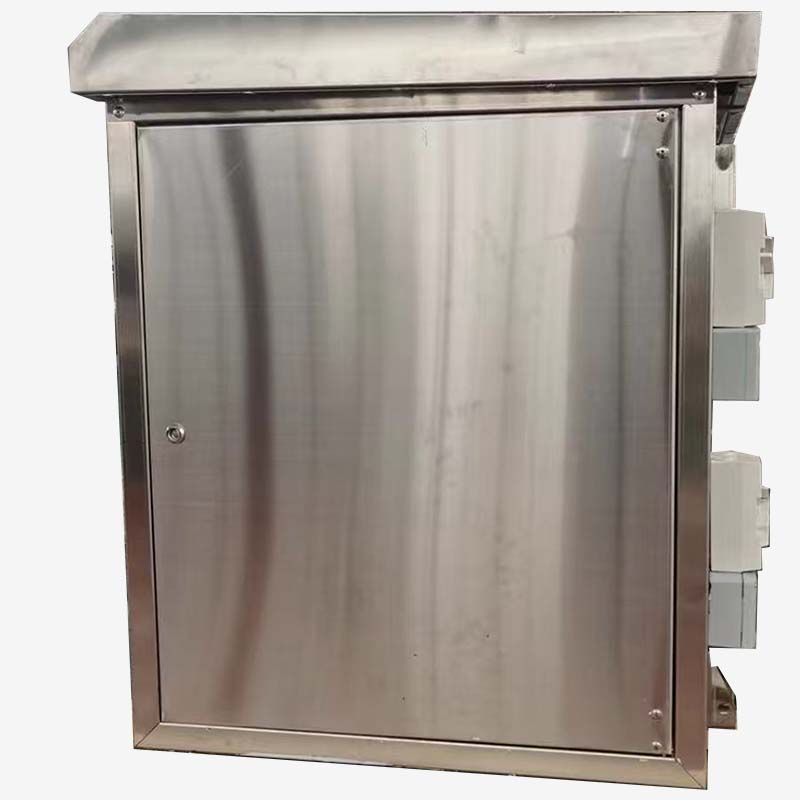

Maintenance door

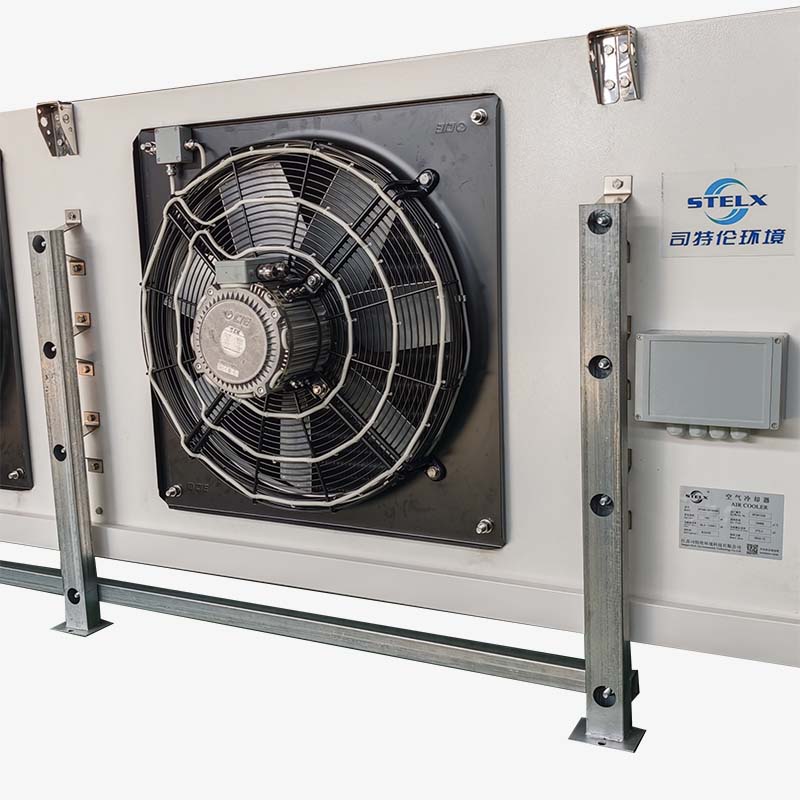

Mounting feet

Corrosion protection

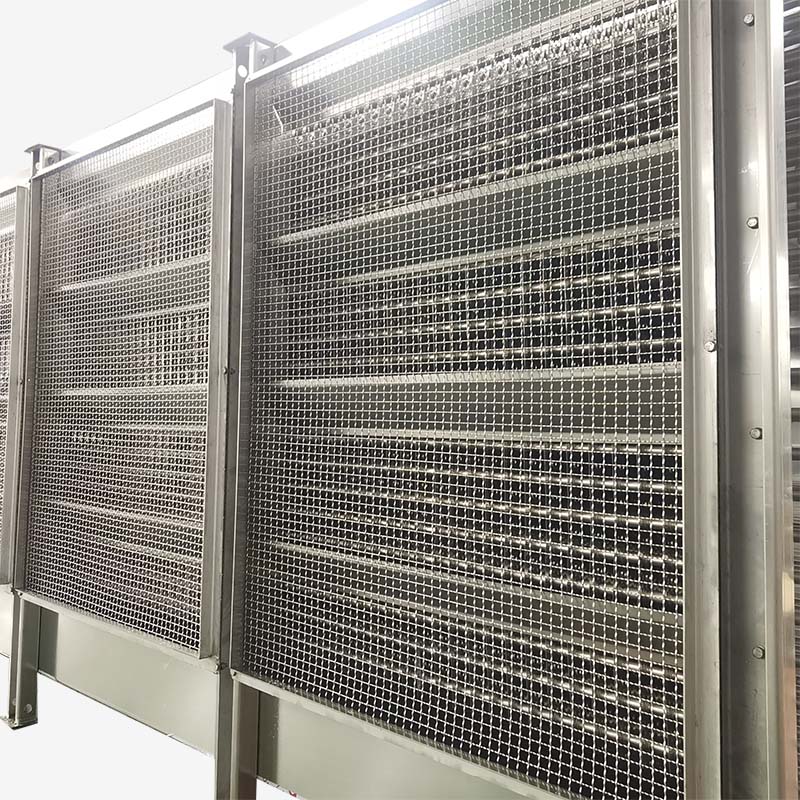

Filter mesh

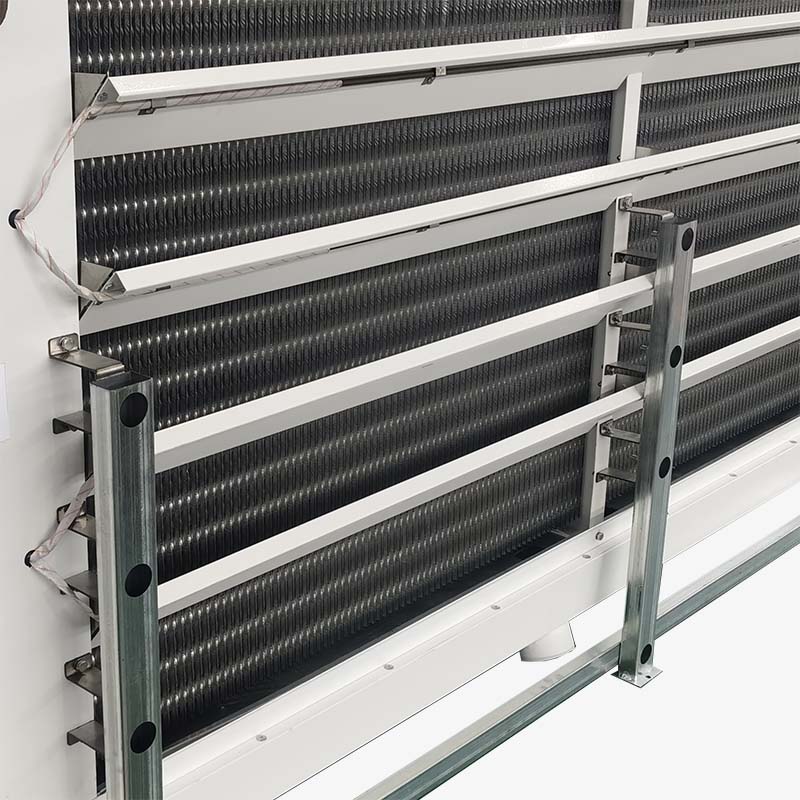

Baffle defrosting

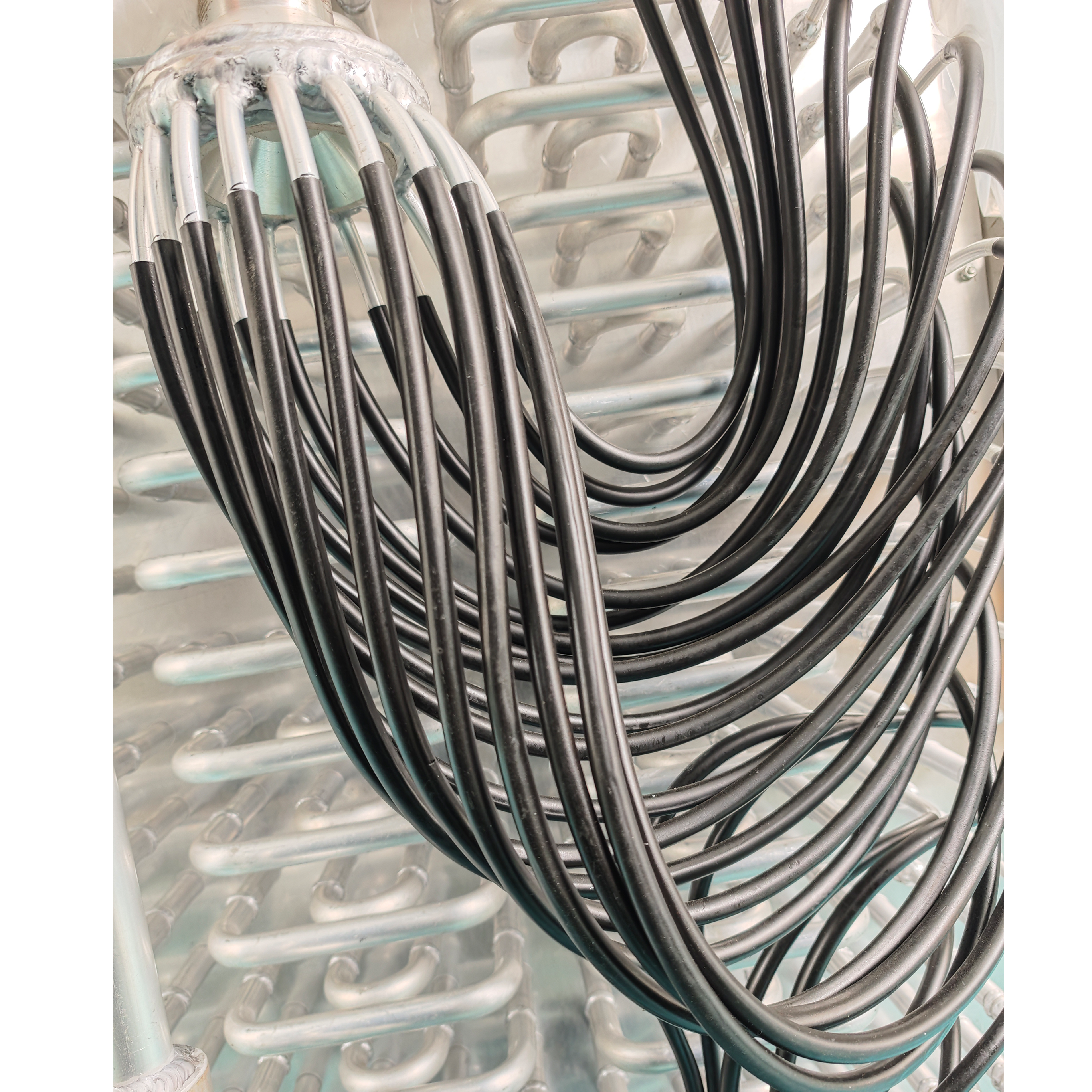

Distributions protection

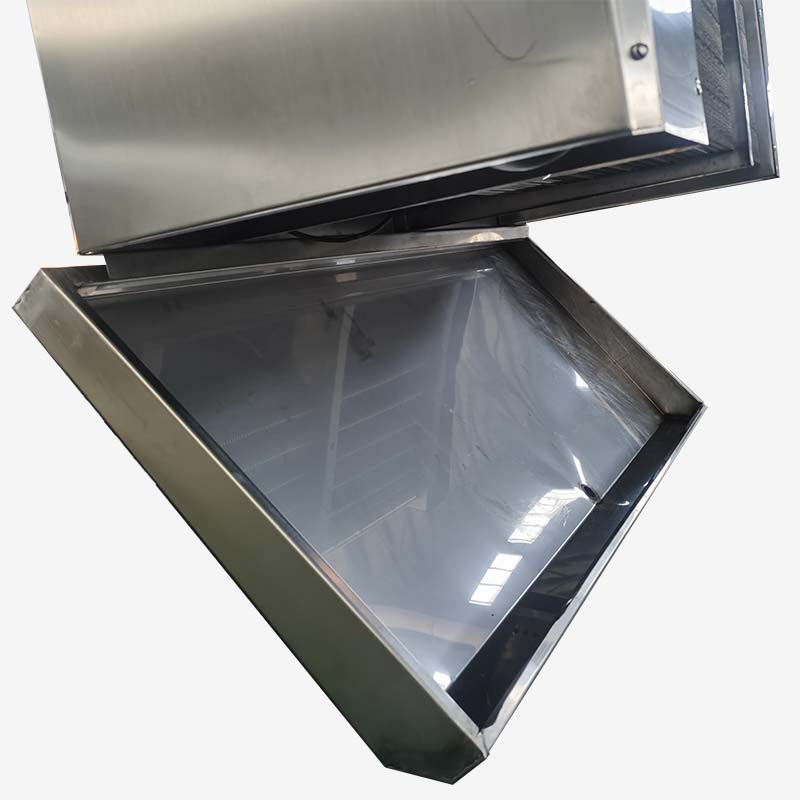

Hinged water tray

Core Features

Cubic Air Cooler: Compact modular design, ideal for high-temperature cold rooms (-15°C to 0°C)

Energy Efficiency: EC fan motors reduce power consumption by up to 40%

Temperature Uniformity: ±0.3°C precision, even during dynamic load changes

Zero-Drip Assurance: 45° angled insulated water tray prevents condensation and dripping

Corrosion-Resistant Build: 304/316 stainless steel and powder-coated materials

Multi-Refrigerant Compatibility: Works with HFC, NH₃, CO₂, glycol, water, and brine

Easy Maintenance: Slide-out coils and front-service components for quick cleaning

Modular Installation: Ceiling/floor mounting options, 30% faster setup

Hygiene-Certified: Complies with food and pharmaceutical sanitation standards

Low Noise Operation: Quiet performance for industrial and logistics environments

Usage

This Energy-Efficient Cubic Air Cooler is engineered for critical storage zones where reliability, energy savings, and hygiene are paramount:

Food Processing Facilities: Cools raw materials, semi-finished, and finished food products

Pharmaceutical Logistics: Preserves temperature-sensitive drugs and medical supplies

Distribution Centers: Maintains quality of perishables during storage and transit

Walk-In Cold Rooms: Ideal for small to medium-sized cold storage spaces

Food Retail Warehouses: Supports bulk storage of fruits, vegetables, dairy, and frozen foods

What temperature range is this cooler designed for?

It is optimized for high-temperature cold rooms, operating efficiently between -15°C and 0°C.

How much energy does it save compared to traditional air coolers?

The EC fan motor technology reduces power consumption by up to 40%, especially during partial load conditions.

Can it be installed in existing cold rooms?

Yes! Its modular design and flexible mounting (ceiling/floor) make it easy to integrate into existing cold room layouts.

What defrosting options are available?

It supports multiple defrosting methods, including electric, hot gas, air, glycol, brine, and water defrost.

Is it easy to clean and sanitize?

Absolutely. The slide-out coil trays and front-service design allow tool-free access, making cleaning and sanitization fast and hassle-free—critical for food and pharmaceutical applications.
