Choosing between a spiral and a tunnel freezing system represents a high-stakes capital expenditure decision. Make the wrong choice, and you will likely face severe production bottlenecks, damaged product integrity, and massive energy waste. Modern food processing environments demand extreme thermal efficiency. Both technologies successfully achieve industrial-scale rapid freezing. However, their fundamental mechanics differ drastically. Linear high-velocity airflow serves an entirely different purpose than vertical progressive cooling. These machines cater to fundamentally different plant layouts and thermal profiles. We created this transparent, engineering-focused breakdown to help you navigate this complex landscape. Plant managers and procurement teams will learn how to specify the right equipment. We will explore how physical footprint, specific product characteristics, and operational overhead dictate your optimal selection.
Footprint: Spiral freezers maximize vertical space for high capacity in tight layouts; tunnel freezers require a long linear footprint but offer simpler integration for straight continuous lines.
Product Handling: A tunnel freezer is optimal for flat, uniform, or fluidized IQF products requiring rapid surface freezing. A spiral quick freezer excels at gentle handling and accommodating diverse freezing profiles for delicate or thicker items.
Maintenance: Tunnel freezers offer straightforward mechanical access. Spiral freezers have complex drives requiring advanced Clean-In-Place (CIP) systems to mitigate hygiene risks.
Energy & Airflow: Tunnel units rely on high-velocity aerodynamics (often -35°C to -45°C), while spiral units use controlled, longer-retention airflow (-35°C to -40°C), impacting overall energy efficiency depending on operational volume.
Understanding how these machines operate requires a deep dive into thermodynamics and aerodynamics. They manipulate cold air differently to achieve rapid core temperature reduction. You must align these mechanical principles with your specific processing goals.
A typical Tunnel Freezer functions via a horizontal, straight-belt configuration. Products enter one end and exit the other in a straight line. This design utilizes aggressive, high-velocity directed airflow. Engineers often employ impingement or fluidized bed technology here. Fluidization suspends small products in a stream of cold air. This achieves rapid "crust freezing" almost instantly. It effectively prevents product clumping during the initial freezing phase.
This linear dynamic cooling method is best suited for short retention times. Rapid heat transfer is heavily prioritized over prolonged soaking. High fan speeds push temperatures down rapidly, often operating between -35°C to -45°C. You will see excellent results when processing lightweight or flat items. The aerodynamic force essentially surrounds the product, stripping away the boundary layer of heat.
A Spiral Quick Freezer functions via a continuous belt. This belt winds upward or downward around a central rotating drum. It maximizes belt surface area within a highly compact insulated enclosure. You can achieve extended dwell times without increasing the machine's horizontal footprint. The vertical stack allows products to rest safely while they freeze.
These units utilize a controlled "frost-free zone" and multi-tiered cross-airflow. They deliver progressive, gentle freezing rather than aggressive wind blasts. This prevents delicate products from blowing off the belt or suffering surface damage. The airflow typically operates around -35°C to -40°C. Lower-velocity cold air circulates through the stacked tiers. It slowly penetrates thicker, denser products until they reach the required core temperature.
You need a structured framework to evaluate these systems. Let us break down the technical parameters into four critical categories. This will help you map equipment capabilities to your specific operational constraints.
Space dictates your equipment choices almost immediately. Tunnel designs require significant floor length. They are ideal for facilities with linear production flows. The machine acts as a direct, straight-line bridge between processing and packaging. However, a long linear footprint demands vast horizontal space.
Spiral designs leverage verticality. They are the default choice when horizontal plant space is heavily constrained. If high-volume throughput is mandatory but your floor plan is tight, vertical stacking solves the problem. They build upward instead of outward.
Processing capacity behaves differently across these two platforms. Tunnel unit capacity is strictly limited by physical length and belt speed. They are highly efficient for the rapid processing of thin or small items. If your product needs only a few minutes to freeze, linear belts work perfectly.
Spiral configurations offer massive processing capacity. Volumes often range from 500kg to 5,000kg per hour. This stems from the sheer length of the coiled belt. A single spiral can house hundreds of meters of usable belt space. This makes them exceptionally efficient for products requiring deep, sustained freezing over longer durations.
Aerodynamic choices directly impact utility consumption. Tunnel configurations demand robust energy inputs. They rely on higher fan speeds and aggressive aerodynamics. Their thermal efficiency relies heavily on minimizing open-door times. You must carefully balance air pressure at the entrance and exit.
Spiral configurations generally yield better thermal retention. They use lower-velocity airflow inside an enclosed vertical design. Cold air naturally sinks and stays contained within the insulated box. This often results in lower per-unit energy demands during continuous high-capacity production runs.
Sanitation protocols vary wildly between linear and vertical layouts. Linear designs allow incredibly easy access. Operators can quickly remove side panels for visual inspection. Belt tensioning and manual washdowns are straightforward. There are very few hidden crevices.
Vertical drum designs feature a much more complex mechanical structure. They include central drums, multi-tier tracks, and intricate drive components. These machines require modern automated Clean-In-Place (CIP) systems. Automated CIP is essential to ensure food safety and prevent bacterial harbor points deep inside the stacked tiers.
Evaluation Criteria | Linear Tunnel Dynamics | Vertical Spiral Dynamics |
|---|---|---|
Space Footprint | Requires long, extended horizontal floor space. | Highly compact, builds upward vertically. |
Dwell Time | Short to medium. Limited by physical length. | Extended. Easily adjusted via drum rotation speed. |
Aerodynamics | High-velocity, aggressive (Impingement/Fluidized). | Lower-velocity, cross-airflow over multi-tiers. |
Maintenance Access | Simple manual washdowns via removable side panels. | Complex mechanics. Requires automated CIP systems. |
Matching equipment to product biology prevents massive quality control failures. Each technology interacts with cellular moisture differently. You must evaluate your product's thickness, fragility, and surface texture.
You should lean toward linear systems when handling specific commodity categories. High wind velocity acts as an advantage here.
Ideal Products: Raw seafood (such as shrimp and fish fillets), IQF berries, diced vegetables, and flat meat patties.
The Logic: These products require immediate, high-velocity freezing. Rapid crusting prevents moisture loss, limits cellular damage, and stops items from sticking together. Fluidized variants excel at suspending lightweight products in cold air. The suspension guarantees every millimeter of the product surface freezes instantly.
Linear belts also handle sticky marinades well. You can freeze the bottom layer instantly upon contact with the metal belt. This prevents messy transfer issues downstream.
Vertical systems shine when dealing with complex, bulky, or highly delicate items. They prioritize structural integrity during the cooling phase.
Ideal Products: Bakery items (raw dough, cooked pastries), ready-to-eat meals, heavy poultry cuts, and fragile formed products.
The Logic: The multi-tiered design allows fragile products to rest securely. They move smoothly without aggressive wind disturbance. Adjustable belt speeds easily accommodate complex freezing profiles. Dense items require longer core-temperature reduction times. A coiled path gives heavy poultry the exact dwell time needed to freeze safely to the bone.
Transfer points are minimal. A single continuous belt means delicate pastries will not break or deform while shifting between conveyors.
Procuring heavy thermal machinery involves significant engineering risks. Many buyers focus entirely on upfront capacity. They ignore crucial sub-components. You must scrutinize the internal engineering before signing a purchase order. Poor design choices will haunt your maintenance team for decades.
Always inspect the drive system location. Beware of internally mounted motors and gearboxes found in low-quality vertical units. Internal placement creates severe risks. Temperature fluctuations cause massive condensation on the gearboxes. This leads to water dripping. Worse, worn seals can leak lubricating oil directly onto the food processing zones below. Always seek external drive configurations. Placing motors outside the cold zone ensures easier maintenance and eliminates contamination hazards entirely.

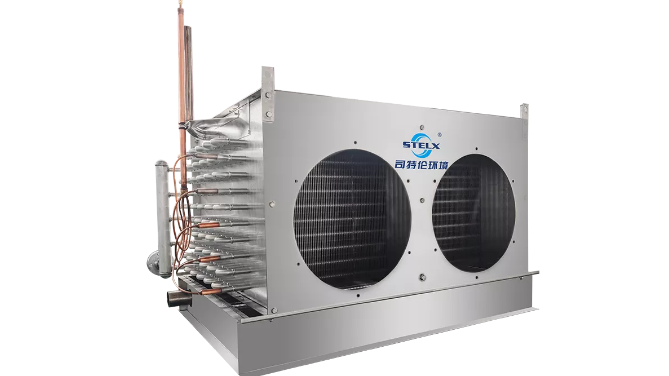

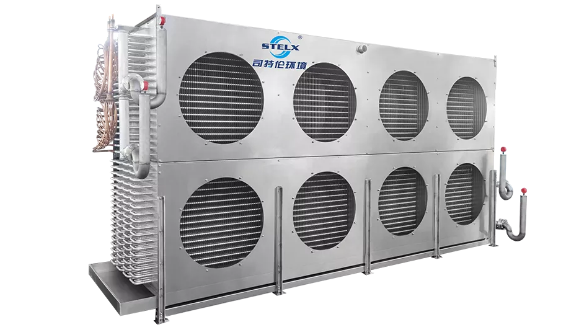

Evaluate Air Defrost (ADF) capabilities rigorously. Frequent defrost cycles completely bottleneck production. When coils freeze over, thermal transfer stops. Look closely at the evaporator coil design. Specify variable-pitch evaporator fins. These specialized fins are explicitly designed to delay frost buildup. They allow longer continuous production runs before requiring a mandatory shutdown for defrosting.
Continuous freeze-thaw cycles put immense stress on enclosure joints. Cheap panels will warp over time. Specify heavy-duty, seamless polyurethane (PIR) insulated panels. Seamless construction is non-negotiable. It prevents structural warping and stops thermal leaks. If warm ambient air penetrates the enclosure, ice builds up instantly. High-quality PIR panels maintain precise internal climates and protect your mechanical investments.
Modern food safety requires total traceability. Ensure the equipment's Programmable Logic Controller (PLC) integrates flawlessly with your systems. Connect it directly to your Warehouse Management Systems (WMS). This digital handshake enables precise batch tracking. It simplifies allergen control protocols. It also ensures continuous temperature compliance logging. Inspectors will demand this data during food safety audits.
Making a final decision requires structured internal alignment. You must combine spatial realities with thermodynamic demands. Follow a logical path to narrow down your options.
Shortlisting Logic: Base your initial filter on available floor space. Next, calculate the exact retention time required for your thickest product. If space is tight and time is long, build vertically.
Thermal Simulations: Avoid off-the-shelf purchasing entirely. Engage with manufacturers to run Finite Element Analysis (FEA) thermal simulations.
Physical Testing: Demand physical product tests. Determine the exact freezing curve and crust-freezing requirements for your specific recipes.
Automated Sanitation: Ensure any vertical system quotes include fully integrated CIP capabilities to protect your hygiene standards.
Taking these actionable steps guarantees your procurement process is driven by data. Do this before requesting a formal capital expenditure quote. You will secure a machine perfectly tuned to your daily production needs.
A: Yes, specifically fluidized tunnel freezers. Their high-velocity bottom-up airflow suspends small items like peas or shrimp. This ensures individual freezing without clumping. A spiral unit is generally better for larger, distinct items that require resting flat.
A: Generally, spiral systems have higher maintenance complexity. They require belt tensioning across multiple tiers and rely on central drum mechanics. This complex geometry makes automated CIP systems and strict preventative maintenance schedules absolutely mandatory.
A: While technically possible due to adjustable speeds and varying tier conditions, it remains difficult. It requires highly sophisticated control systems to manage differing freezing profiles simultaneously. Batch processing single product types is usually recommended to preserve quality.
