Industrial food processors face a constant struggle to scale production rapidly. You need much higher volume capacity. However, facility expansion remains incredibly expensive and logistically complex. Pushing more product through older processing equipment often ruins food integrity. Legacy tunnel freezers and batch blast systems frequently bottleneck modern production lines. They struggle to maintain consistent thermal exchange across high volumes. This operational inefficiency leads to massive energy waste and localized frost damage on premium items.
Fortunately, upgrading to a Spiral Quick Freezer solves this precise architectural challenge. It delivers continuous, high-volume processing without demanding massive floor space. By stacking horizontal belts vertically, it balances tight spatial constraints seamlessly. It also maintains precise thermodynamic control over delicate food products. In this article, you will learn exactly how vertical freezing transforms daily production workflows. We will explore advanced airflow optimization, proven yield protection techniques, and essential procurement criteria. Finally, you will discover practical strategies to integrate these systems successfully.
Spatial Efficiency: Vertical freezing architecture minimizes floor space requirements while maximizing continuous product throughput.
Product Integrity: Precise airflow control and Individual Quick Freezing (IQF) capabilities reduce moisture loss and cellular damage in sensitive food products.
Procurement Logic: Successful integration relies on matching belt configurations, retention times, and refrigeration loads to specific product matrices and facility constraints.
Contrast operational limits clearly to understand the current industry bottleneck. Tunnel freezers require very long linear paths. They consume enormous amounts of expensive floor space. Cart and plate freezers demand intense manual labor. They also force facilities into slow batch-handling routines. They simply cannot keep up today. High-volume fast food and industrial processing demand uninterrupted flow. Traditional systems break down under these rigid volume requirements.
The vertical advantage changes this equation entirely. A Spiral Quick Freezer translates horizontal belt length directly into compact vertical tiers. You resolve immediate facility expansion limits instantly. Instead of building massive new horizontal wings, you build upward. We use existing ceiling height to multiply effective belt length. This intelligent design reclaims valuable production floor space for other critical operations.
Success requires measuring efficiency accurately at the decision stage. How do we define success here? We define it through distinct operational metrics. First, you should track pounds-per-hour per square foot. Second, monitor energy consumption per ton of frozen product. Finally, evaluate yield retention percentages. These specific metrics reveal the true operational value of vertical freezing compared to legacy alternatives.
System Type | Space Requirement | Throughput Style | Labor Intensity | Yield Protection |
|---|---|---|---|---|
Legacy Tunnel Freezer | High (Long linear footprint) | Continuous | Low | Moderate |

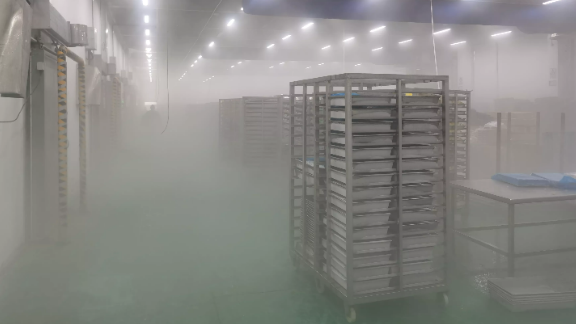

Batch Blast Freezer | Medium (Multiple isolated rooms) | Intermittent Batch | High | Low to Moderate |
Vertical Spiral System | Low (Stacked vertical tiers) | Continuous Flow | Very Low | High |
Optimized airflow drives rapid heat transfer throughout the freezing chamber. Fans push horizontal or vertical flow patterns across product surfaces directly. This targeted air maximizes thermal exchange rates. It also minimizes necessary retention times inside the unit. Rapid heat exchange ensures core temperatures drop uniformly. Proper aerodynamic freezing prevents product clumping efficiently. It guarantees independent freezing for individual pieces.
Modern spiral configurations feature dynamic drive adjustments. Operators change belt speeds instantly via digital interfaces. You can process raw meat patties and delicate baked pastries on the exact same line. You simply adjust the retention time. You never have to halt production for mechanical belt changes. This flexibility maximizes daily production uptime.
Evaluate insulated enclosures carefully to ensure maximum energy optimization. High-density panels prevent thermal leaks into the ambient factory environment. Optimized evaporator coils maximize cooling capacity efficiently. Sequential defrosting systems reduce frost buildup seamlessly across the unit. They lower overall energy consumption effectively. Furthermore, they prevent unnecessary mechanical strain on your compressor network.
Best Practices for Energy Optimization:
Install Variable Frequency Drives (VFDs) on all evaporator fans to match cooling demand precisely.
Monitor enclosure panel joints quarterly to detect and seal thermal micro-leaks.
Schedule sequential defrost cycles during planned shift changes to avoid interrupting active production runs.
Rapid crust freezing locks in surface moisture immediately upon entering the chamber. When you use a Spiral Quick Freezer, internal ice crystals form quickly. They stay microscopic rather than expanding. This rapid physics prevents cellular rupture in sensitive meats or fruits. It minimizes drip loss during the eventual thawing process. Protecting moisture directly protects your profit margins and final product weight.
Common Mistakes: Running the belt too fast prevents complete core freezing. This mistake causes moisture migration later in the supply chain. Always verify core temperatures before packaging.
Automated CIP systems are non-negotiable for modern processing plants. They reduce daily sanitation labor significantly. Automated nozzles eliminate bacterial harborage points reliably. They guarantee consistent coverage across all vertical tiers. They also minimize hazardous chemical usage by optimizing spray patterns. We strongly recommend specifying integrated CIP for any new installation.
Fully welded enclosures prevent moisture pooling in hidden structural seams. Sloped floors guide washdown water toward dedicated drains immediately. Open-profile belts allow thorough debris removal during routine cleaning cycles. These specific features meet stringent global food safety regulations effortlessly. They simplify daily inspections and guarantee long-term operational compliance.
Ammonia (NH3), Freon, and CO2 all offer unique integration profiles. Ammonia provides exceptional thermodynamic efficiency. However, it requires rigorous safety protocols and specialized engine rooms. CO2 is environmentally friendly but demands highly specialized, high-pressure piping. You must align the chosen system with existing facility constraints and local environmental regulations.
Frame your belt specification decision carefully. Plastic modular belts reduce friction drastically. They clean easily and handle delicate items exceptionally well. Conversely, stainless steel mesh belts carry heavier loads easily. They offer superior durability for dense, heavy meat processing. Choose the material based entirely on your specific food matrix.
Assess evaporator placement carefully during the procurement phase. Proper fan configurations prevent frost from blinding the cooling coils. They ensure uniform freezing across all upper and lower tiers. This specific airflow matrix prevents inconsistent product quality. It protects delicate items from freezer burn and preserves overall aesthetic appeal.
Procurement Checklist:
Audit existing compressor capacity before selecting a specific refrigerant.
Test product adhesion on different belt materials before finalizing the spec.
Verify fan motor placement allows easy access for routine maintenance.
Confirm the enclosure fits within your designated ceiling height limits.
A major system upgrade often shifts operational bottlenecks downstream. Your new Spiral Quick Freezer must sync flawlessly with upstream cooking stages. It also needs precise timing for downstream packaging automation. If conveyors mismatch slightly, frozen product will pile up rapidly. This pile-up causes immediate spoilage and disrupts the entire shift.
Prepare for realistic site preparation timelines before delivery. Spiral units create incredibly heavy dynamic loads. They often require extensive concrete floor reinforcement before installation. You must consult structural engineers early. You must also integrate the unit seamlessly into existing HVAC frameworks. Proper ventilation manages excess condensation around the enclosure doors.
Predictive maintenance keeps production running continuously. You must inspect central drive systems and tier supports regularly. Neglected components inevitably lead to catastrophic belt jams. Belt jams cause severe product loss instantly. They also demand expensive, time-consuming mechanical repairs. Establish a strict preventative maintenance schedule from day one.
Upgrading to vertical freezing represents a major infrastructural step forward. It solves critical footprint limitations permanently while boosting throughput. It also locks in superior product quality by preventing cellular damage.
Procurement teams must prioritize qualified OEMs carefully. Look for vendors offering transparent thermal modeling. Insist on pilot-testing capabilities for your specific products. Secure robust aftermarket service agreements to minimize future downtime.
Audit your current throughput-per-square-foot metrics today. Identify your largest production bottlenecks. Contact a trusted vendor to request custom thermal calculations for your facility. Taking these steps ensures your next equipment upgrade delivers immediate operational value.
A: The vertical stacking multiplier provides a massive spatial advantage. A spiral system typically yields up to 50-75% floor space savings compared to linear tunnel systems. It achieves this footprint reduction while maintaining the exact same effective belt length and overall throughput capacity.
A: It uses a precise combination of rapid surface crust freezing and directional airflow. The intense cold immediately hardens the product surface upon entry. Using specific non-stick modular plastic belts further prevents soft or sticky foods from adhering to the conveying surface.
A: Key challenges include strict belt tensioning and managing frost buildup on large evaporators. Operators must also guarantee regular, food-safe lubrication for central drive mechanisms. These components operate constantly in sub-zero environments, making proactive lubrication essential to prevent mechanical wear.
A: It depends entirely on your available compressor capacity, current pipe sizing, and the designated refrigerant. You must perform a comprehensive thermal load audit before procurement. This ensures your existing engine room can handle the significant additional cooling demand safely.
