Building a modern cold storage facility is far more complex than simply installing a large refrigerator. It requires a precise balance of thermal physics, mechanical engineering, and logistical planning. For businesses in the food, pharmaceutical, or chemical industries, the goal is always the same: maintaining a strictly controlled environment while minimizing energy consumption.
In this "Step-by-Step Guide," we walk you through the essential phases of creating high-performance Cold Storage Solutions. We will move beyond basic definitions to explore the technical nuances of selecting the right Air Coolers, optimizing thermal insulation, and choosing the freezing technology that fits your specific product line. Whether you are looking for a Tunnel Freezer for a high-volume processing line or a specialized Fluidized Bed IQF Freezer for delicate produce, this guide provides the expert insights needed to design an efficient, future-proof facility.
The first step in any efficient design is a rigorous calculation of the thermal load. If you undersize the system, it will fail to maintain the required temperature during peak summer months. If you oversize it, you waste thousands of dollars in energy and equipment costs.
We must consider "Transmission Load" (heat leaking through walls), "Internal Load" (heat from lights and forklifts), and most importantly, the "Product Load." The heat given off by warm produce entering the room can overwhelm basic Cold Storage Solutions. To handle this, designers often incorporate Pre-cooling Coils to remove initial field heat before the product enters the main storage area. This prevents temperature fluctuations that could compromise food safety.
Smart procurement involves planning for tomorrow. We recommend designing the structural footprint for 20% more capacity than current needs. However, the mechanical systems—like the Evaporative Condenser—should be modular. This allows you to add more cooling power as your business scales without ripping out the entire foundation. A well-calculated thermal profile is the only way to ensure your Air Coolers operate at peak efficiency rather than running 24/7 at maximum strain.
Insulation is the "skin" of your cold room. Without a high-quality thermal envelope, even the most advanced Spiral Quick Freezer will struggle to keep up with heat infiltration.
Modern Cold Storage Solutions typically utilize PIR (Polyisocyanurate) or PUR (Polyurethane) sandwich panels. These materials offer the best R-value per inch of thickness. For deep-freeze applications (below -18°C), panels should be at least 150mm to 200mm thick. Don't forget the joints; we use "Cam-lock" systems or specialized thermal sealants to ensure no air leaks exist between panels.
A common mistake in cold room design is ignoring the ground. In sub-zero rooms, the cold eventually seeps into the earth, freezing the moisture in the soil. This causes the ground to expand and heave, potentially cracking the foundation. Efficient designs incorporate a floor heating system—often using glycol pipes or electric mats—to maintain the soil above freezing. This protects your investment and ensures the structural integrity of your high-density racking and heavy Air Coolers.
Where you place your cooling units determines whether you have a uniform temperature or "hot spots" that ruin your product. Proper airflow is the difference between an efficient room and a wasteful one.

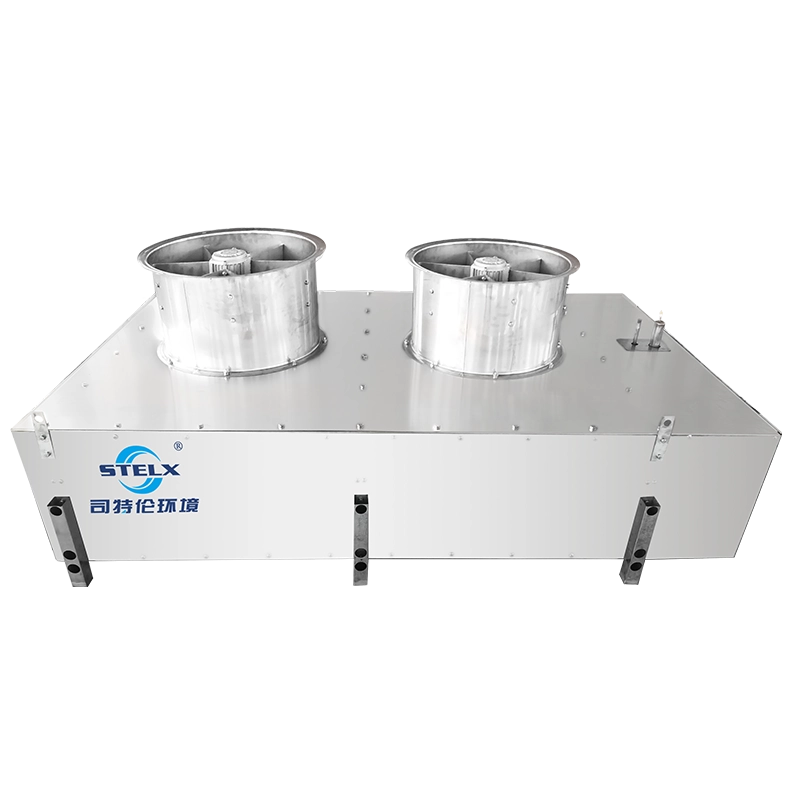

We must position Air Coolers to ensure a "curtain" of cold air covers the entire room. Avoid placing them directly above doors, as this draws in warm, moist air every time someone enters, leading to excessive frost buildup on the Pre-cooling Coils. Instead, we arrange them to circulate air through the racking aisles, ensuring that even the middle pallets receive adequate cooling.
Frost is an insulator. When it builds up on the fins of your Air Coolers, it blocks airflow and reduces heat exchange. Efficient Cold Storage Solutions use demand-based defrosting rather than simple timers. By using sensors to detect when the coil is actually iced over, we save significant energy and prevent the room from warming up unnecessarily during a defrost cycle.
The choice of freezing equipment is the most direct promise of efficiency in your facility. You must match the technology to the physical properties of your product.
For products that require a longer dwell time in a compact footprint, the Spiral Quick Freezer is the industry standard. It uses a vertical conveyor system to maximize the cooling path within a small horizontal area. This is ideal for bakeries or meat processors who need a Self-stacking Spiral Freezer to handle varying product heights without complex mechanical adjustments.
If you are processing small, loose items like peas, berries, or diced shrimp, the Fluidized Bed IQF Freezer is the superior choice. It uses high-velocity upward airflow to "float" the product. This ensures each individual piece is frozen separately and quickly. This Individual Quick Freezing (IQF) method prevents clumping and maintains the highest product quality. It is far more efficient for bulk produce than a standard Tunnel Freezer because it maximizes the surface area exposed to the cold air.
The "hot side" of your refrigeration system determines your monthly utility bill. Choosing the right heat rejection method is a critical step in the guide.
In large-scale Cold Storage Solutions, the Evaporative Condenser is often the most efficient choice. It combines the cooling effect of water evaporation with traditional air cooling. This allows the system to operate at a lower condensing temperature, which reduces the workload on the compressors. In hot, dry climates, an Evaporative Condenser can reduce energy costs by up to 30% compared to air-cooled units.
While water-cooled systems are efficient, they require more maintenance due to scale buildup and water treatment needs. If your facility is in a region with poor water quality, a high-efficiency air-cooled system paired with high-surface-area Pre-cooling Coils might be a more Durable long-term solution. Always weigh the energy savings against the technical labor required to keep the system running at peak performance.
You cannot manage what you do not measure. A modern cold room is only as efficient as its "brain"—the control system.
Modern Cold Storage Solutions use PLC (Programmable Logic Controller) systems to balance the load. For example, when a Tunnel Freezer starts up, the system can temporarily reduce the power to the main storage Air Coolers to prevent a spike in electrical demand. This "peak shaving" saves thousands in demand charges from the power company.
We now integrate sensors for vibration, pressure, and refrigerant levels. If a Self-stacking Spiral Freezer starts to draw more current than usual, the system sends an alert to your smartphone. This allows for proactive maintenance before a catastrophic failure occurs. Real-time data logging also ensures you have a "paper trail" for food safety audits, proving that your Cold Storage Solutions never drifted outside the required temperature range.
An efficient cold room is useless if the loading process lets all the cold air out. Step seven is about the logistics of the "Cold Chain."
Never open a cold storage door directly to the outside. An efficient design includes a temperature-controlled loading dock (usually kept at +4°C to +10°C). This acts as a thermal buffer. When used with high-speed insulated doors, it minimizes the amount of warm air entering the freezer.
The more "dense" your storage, the more efficient it is. Air is expensive to cool; product is not. By using mobile racking or automated shuttle systems, we reduce the amount of empty aisle space. This increases the thermal mass of the room, making it more resistant to temperature swings. Furthermore, integrating a Tunnel Freezer directly with an automated conveyor reduces the time products spend in ambient temperatures, preserving the "frost-free" quality of your high-end inventory.
Designing an efficient cold storage room is a journey of precision. From the initial thermal load calculations to the selection of a Spiral Quick Freezer or an Evaporative Condenser, every decision impacts your long-term profitability. By focusing on a high-quality thermal envelope, strategic Air Coolers placement, and smart control logic, you create Cold Storage Solutions that protect both your product and your bottom line. Success in the cold chain isn't just about getting cold; it's about staying cold with the least amount of effort.
Q1: What is the difference between IQF and a Spiral Freezer?
A: A Fluidized Bed IQF Freezer is designed for small, loose items that need to stay separate. A Spiral Quick Freezer is better for larger, packaged, or delicate items that need a compact, vertical path to freeze thoroughly.
Q2: Why do I need Pre-cooling Coils?
A: Pre-cooling Coils remove the "flash heat" from products before they enter main storage. This prevents the room temperature from rising, which saves energy and protects the quality of the products already in storage.
Q3: Can a Tunnel Freezer be used for all products?
A: A Tunnel Freezer is versatile and great for long, flat, or boxed items. However, it requires a lot of floor space. If space is limited, a Self-stacking Spiral Freezer is a more efficient footprint choice.
