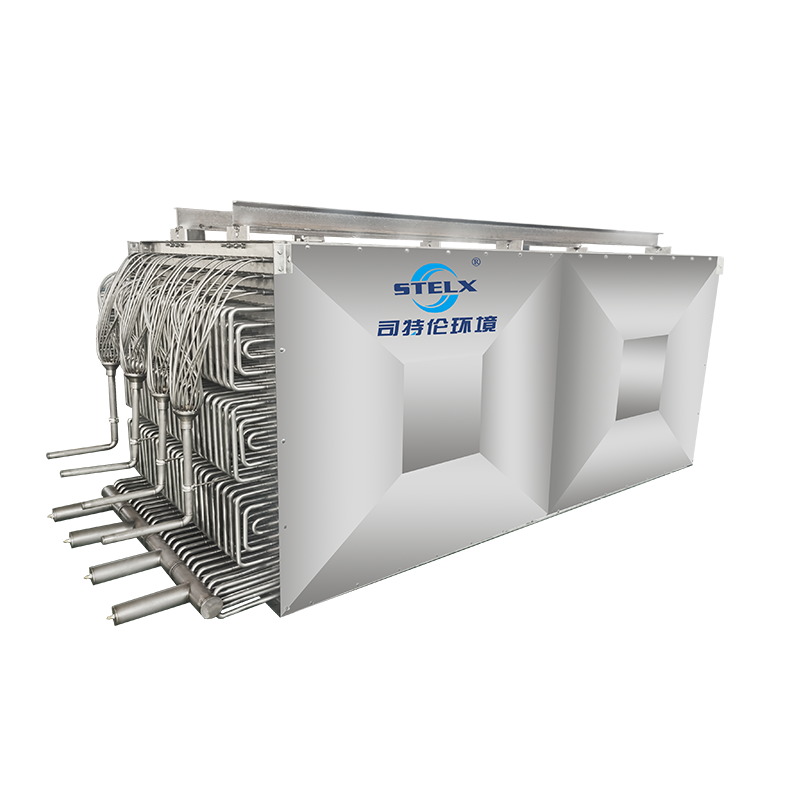

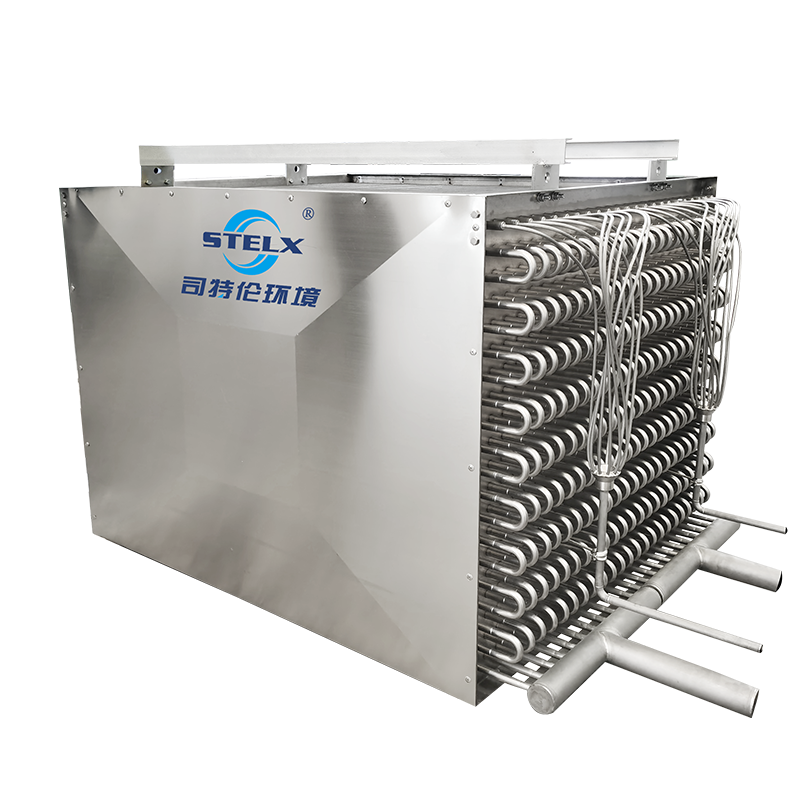

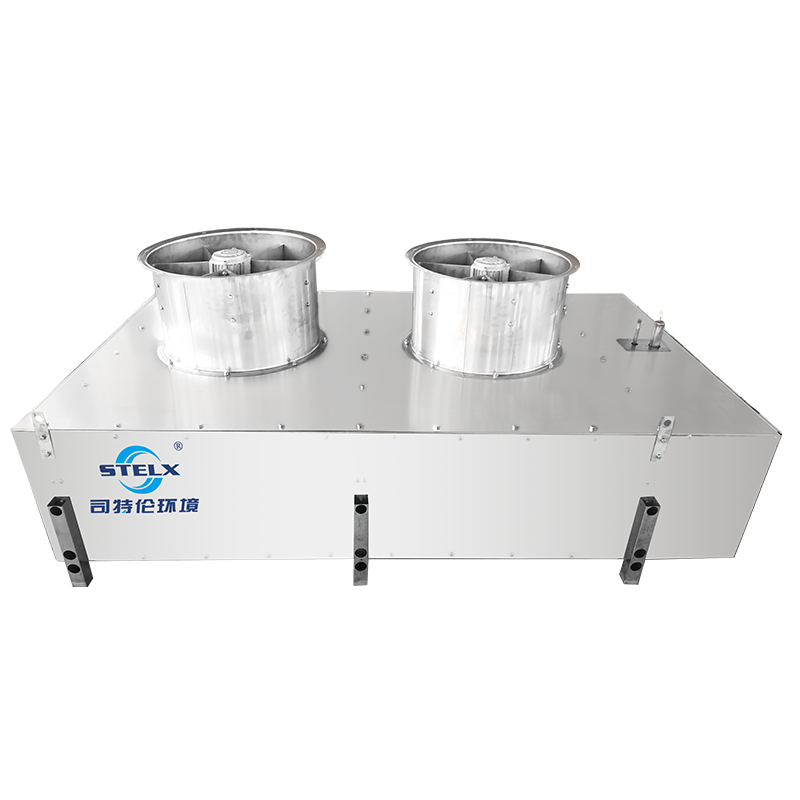

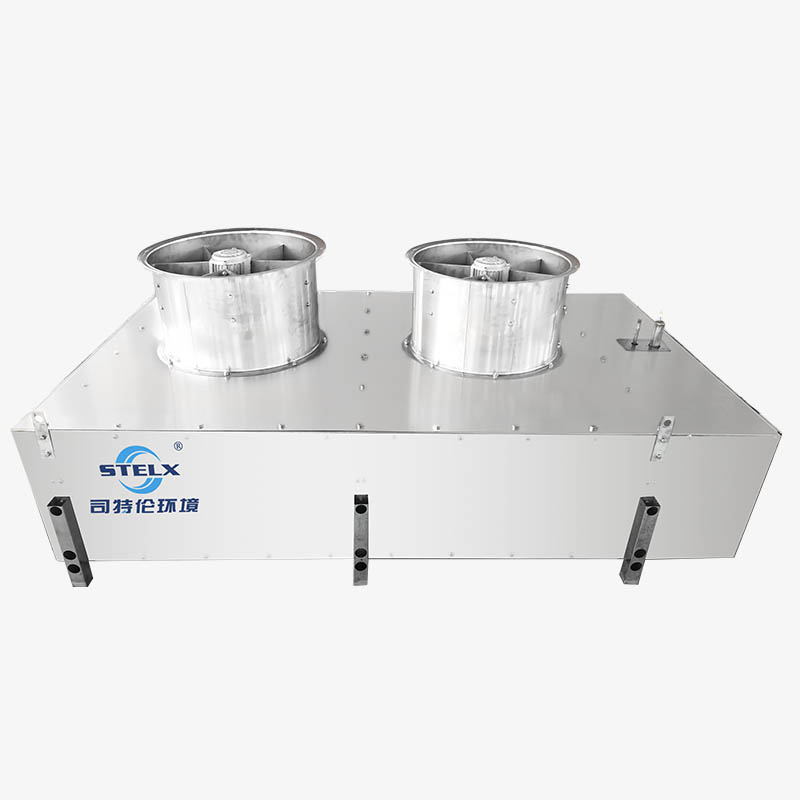

Auto-Defrost Vertical Spiral Seafood Tunnel Evaporator

Overview

Details

Material & Construction Versatility

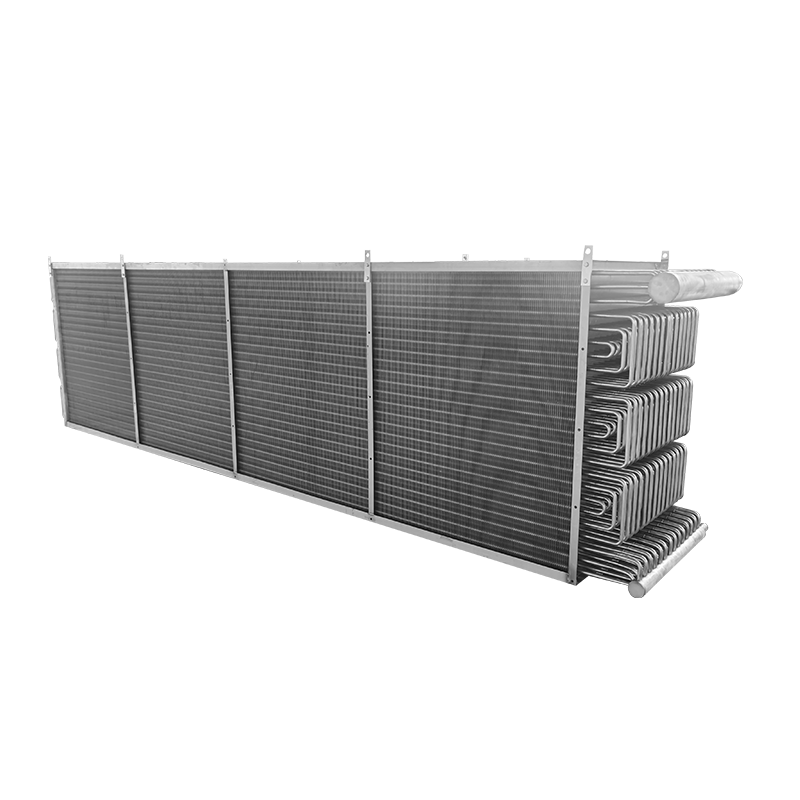

The CJS unit offers flexible material options: Stainless Steel evaporator tubes (304/316), titanium, aluminum, or copper tubes, paired with 0.2~0.4mm Aluminum evaporator (aluminum-magnesium alloy) fins. The casing is available in titanium or stainless steel 304/316, with integrated corrosion protection and reinforced internal structures. Aerospace-grade fasteners ensure stability during high-velocity airflow operations.

Freezing Performance & Refrigeration

As a high-performance fast freezer evaporators system, it covers a cooling capacity range of 10~300 kW, compatible with HFC, NH₃, and CO₂ refrigerants. Its in-line geometry and vertical air direction generate concentrated high-velocity jets, with customizable fin distances (16-8, 18-9, 20-10, up to 40-20-10 mm, or custom). Centrifugal fans minimize pressure drop, while multi-mode defrosting (electric, hot gas, glycol, brine, water, ADF) ensures continuous operation.

Design & Compliance

The unit features a low-profile, wide-width design for seamless integration with impingement tunnels. It meets global hygiene standards with smooth surfaces and radius corners, supporting food safety compliance. Customizable intake configurations (plenum-style or flat-panel) adapt to diverse production layouts, while CE certification enables worldwide deployment.

Find suitable accessories for CJS impingement tunnel freezer

Core Features

CFD-Optimized Airflow: Precision-engineered airflow patterns eliminate insulating boundary layers, ensuring rapid heat extraction and minimal ice crystal formation—key for evaporator for IQF applications.

Low-Pressure-Drop Efficiency: The unit’s aerodynamic design reduces airflow resistance, lowering energy consumption while maintaining high freezing speeds for blast freezer operations.

Product Quality Preservation: High-velocity vertical jets reduce dehydration losses, preserving the texture, flavor, and appearance of delicate products like fish fillets and shrimp.

Customizable & Adaptable: Flexible intake configurations, fin distances, and material options make it a versatile evaporator for spiral quick freezer and tunnel freezer systems.

Easy Maintenance & Durability: Reinforced internal structures and corrosion protection extend service life, while accessible inspection points simplify cleaning and upkeep.

Application Scenarios

Premium Seafood IQF Processing

The CJS evaporator unit is ideal for freezing delicate seafood such as fish fillets, shrimp, and scallops. Its high-velocity airflow ensures quick freezing without damaging product integrity, making it a trusted evaporator for IQF in luxury seafood processing facilities.

Value-Added Poultry Products

For chicken tenders, turkey cutlets, and portion-controlled poultry, the unit delivers consistent freezing results. The Stainless Steel evaporator and Aluminum evaporator combination resists contamination, meeting strict hygiene standards for poultry processing.

Baked Goods & Prepared Foods

Baked items (croissants, pastries) and prepared meals benefit from the unit’s gentle freezing process, which preserves crust texture and moisture. Its compact design fits seamlessly into bakery and ready-meal production lines, supporting high-volume output.

Small-Batch Specialty Items

For artisanal foods, organic products, and portion-controlled snacks, the CJS fast freezer evaporators system offers customizable freezing parameters, ensuring each product retains its unique quality attributes.

FAQ About CJS

Which products are best suited for this blast freezer evaporator?

The unit excels with delicate, high-surface-area products like fish fillets, shrimp, scallops, poultry portions, baked goods, and prepared meals—ideal for IQF processing where texture and moisture retention are critical.

How does the vertical airflow enhance freezing speed?

The CFD-optimized vertical downward airflow generates concentrated high-velocity jets that eliminate insulating air layers around products, accelerating heat extraction and reducing freezing time by up to 30% compared to conventional systems.

Can the evaporator unit be customized to fit my tunnel freezer?

Yes, it offers customizable fin distances, intake configurations (plenum-style or flat-panel), and dimensions to match specific tunnel freezer designs and production requirements.

What makes this evaporator for spiral quick freezer stand out in corrosion resistance?

The unit features Stainless Steel evaporator components (304/316), aluminum-magnesium alloy fins, and optional titanium casing, paired with dedicated corrosion protection accessories—ensuring durability in humid, high-moisture freezing environments.
